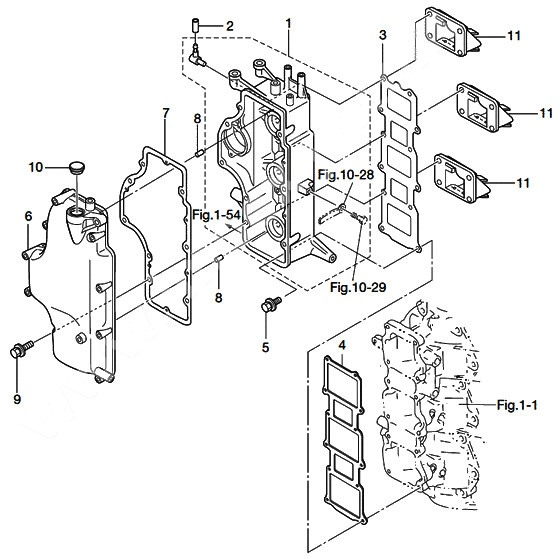

Air chamber для Tohatsu MD75C2 - 2012 года выпуска
-
№АртикулНазвание
-
13FWB02240-0 Air chamber d75/d90c2Air chamber d75/d90c2
-
23GF-01139-0 GrommetGrommet
-
33T9-02242-0 Gasket,Air BoxGasket,Air Box
-
43T9-02104-0 Gasket,Inlet ManifoldGasket,Inlet Manifold
-
53V1-60001-1 Bolt 6-35 precoatedBolt 6-35 precoated
-
3V2-60001-0 Bolt 6-35 precoatedBolt 6-35 precoated
-
63FWB02244-0 Cover air box d75/d90c2Cover air box d75/d90c2
-
73FW-02245-0 Gasket air chamber coverGasket air chamber cover
-
8334-65012-0 СтопорСтопор
-
9910103-5645 BoltBolt
-
10345-76092-0 GrommetGrommet
-
113A3-02100-0 Reed Valve Ass'yReed Valve Ass'y
