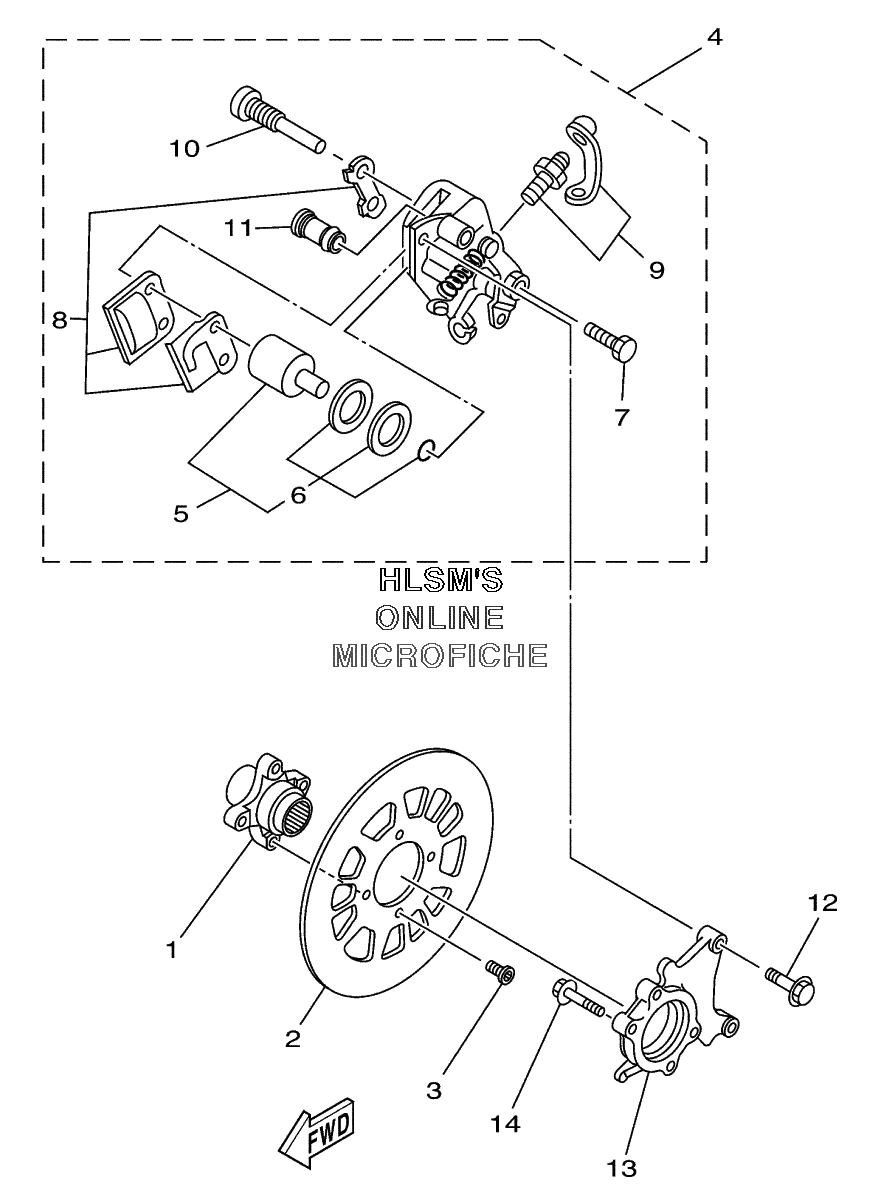

BRAKE - REAR CALIPER для Yamaha WOLVERINE YFM350FXP (4KBR) - 2002 года выпуска
-
№АртикулНазвание
-
14KB-25712-00-00 BRACKET, DISCBRACKET, DISC
-
22GU-25831-51-00 DISC, BRAKEDISC, BRAKE
-
390109-081F0-00 BOLTBOLT
-
41UY-2580W-00-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
51UY-W0057-50-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
61UY-W0047-50-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
71UY-25972-51-00 ...ADJUSTBOLT...ADJUSTBOLT
-
81UY-W0046-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
91UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
101UY-25924-51-00 ...PIN, PAD...PIN, PAD
-
111UY-25917-51-00 ...BOOT, CALIPER...BOOT, CALIPER
-
1290105-08440-00 BOLT, FLANGEBOLT, FLANGE
-
134KB-25819-00-00 BRACKET, CALIPERBRACKET, CALIPER
-
1490105-08748-00 BOLT, FLANGEBOLT, FLANGE
