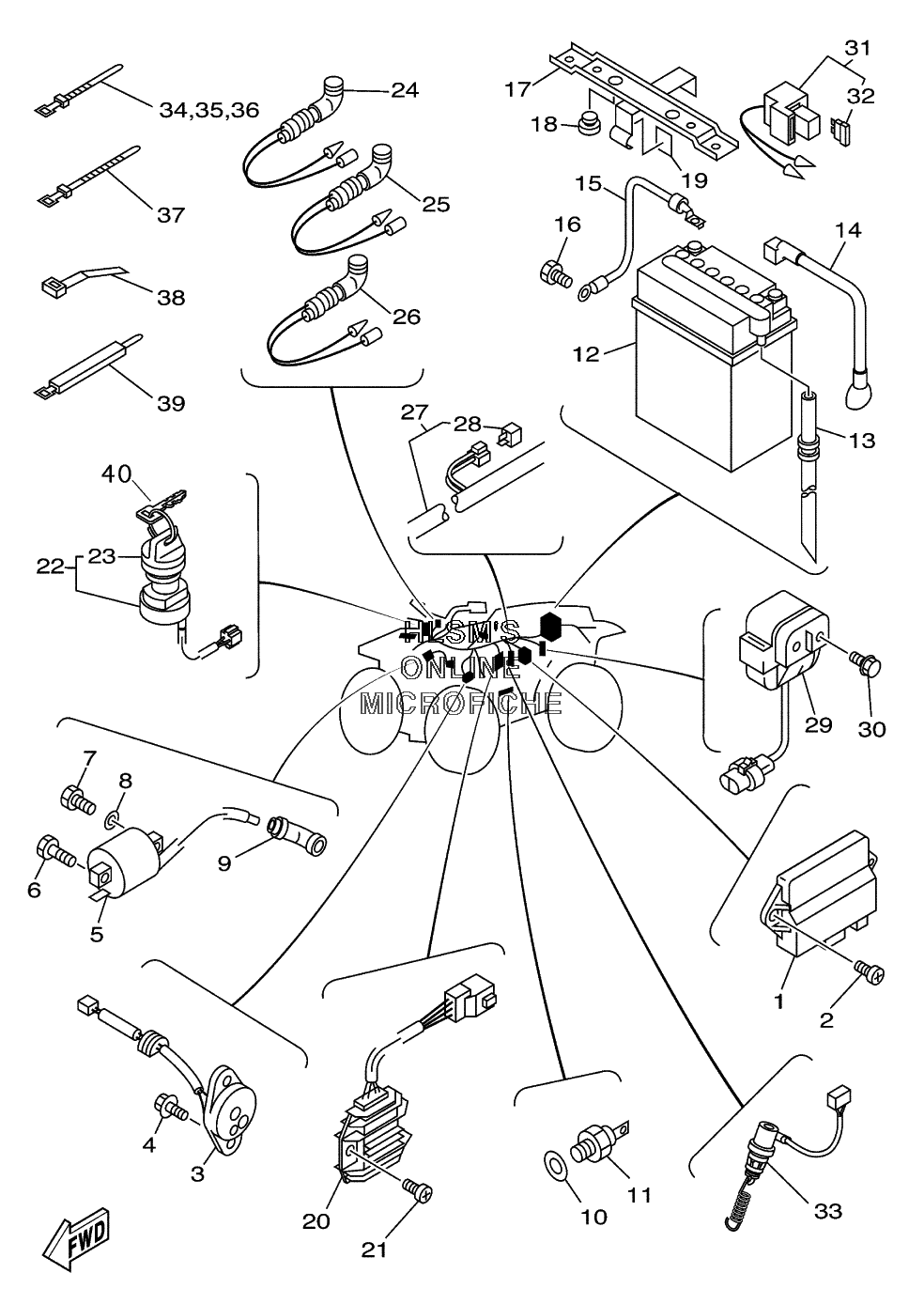

ELECTRICAL для Yamaha WOLVERINE YFM350FXP (4KBR) - 2002 года выпуска
-
№АртикулНазвание
-
14KB-85540-40-00 C.D.IUNIT ASSYC.D.IUNIT ASSY
-
298907-06020-00 SCREW, BINDSCREW, BIND
-
34KB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
490119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
54KB-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
690109-06723-00 BOLTBOLT
-
797007-06020-00 BOLTBOLT
-
892907-06600-00 WASHER, PLATEWASHER, PLATE
-
9371-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
1090201-12172-00 WASHER, PLATEWASHER, PLATE
-
112HT-82560-10-00 THERMOSWITCH ASSYTHERMOSWITCH ASSY
-
121UY-82110-61-00 BATTERY ASSYBATTERY ASSY
-
1390445-086G1-00 HOSE (L720)HOSE (L720)
-
144KB-82115-10-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
154KB-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
1690153-06044-00 SCREW, HEXAGONSCREW, HEXAGON
-
174KB-82128-01-00 BRACKET, BATTERYBRACKET, BATTERY
-
1822W-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1934M-2139X-00-00 DAMPERDAMPER
-
204KB-81960-10-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2198907-06020-00 SCREW, BINDSCREW, BIND
-
225LP-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
233HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
244KB-83530-00-00 PILOT LIGHT ASSY (GREEN) (NEUTRAL INDICATOR)PILOT LIGHT ASSY (GREEN) (NEUTRAL INDICATOR)
-
254KB-83530-10-00 PILOT LIGHT ASSY RED (REVERSE INDICATOR)PILOT LIGHT ASSY RED (REVERSE INDICATOR)
-
264KB-83530-30-00 PILOT LIGHT ASSY RED (OIL INDICATOR)PILOT LIGHT ASSY RED (OIL INDICATOR)
-
274KB-82590-40-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
283WP-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
294KB-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
3095027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
315EH-82150-00-00 FUSE HOLDER ASSYFUSE HOLDER ASSY
-
322GV-82151-00-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
334KB-82530-10-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
34437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
35437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
36437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
37437-83936-11-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
3890465-10098-00 BANDBAND
-
39341-26397-01-00 BAND ,SWITCH CORDBAND ,SWITCH CORD
-
4090890-56001-00 ATV KEY BLANK (TYPE-A)ATV KEY BLANK (TYPE-A)
-
4090890-56002-00 ATV KEY BLANK (TYPE-B)ATV KEY BLANK (TYPE-B)
