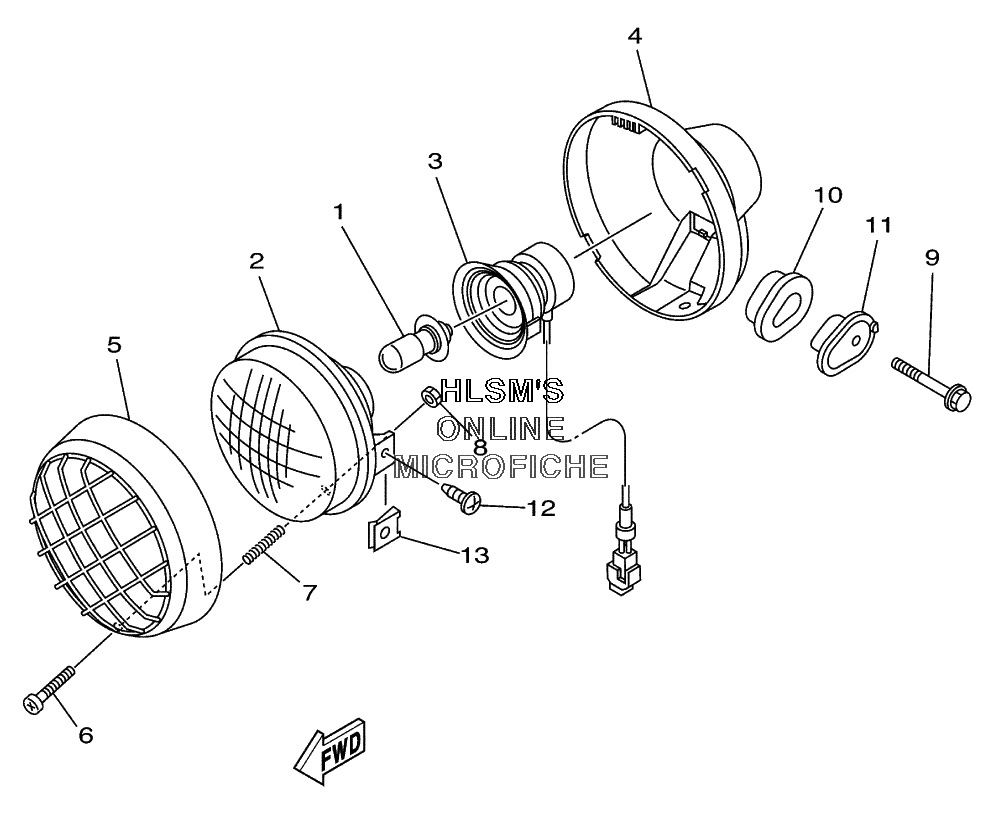

HEADLIGHT для Yamaha WOLVERINE YFM350FXP (4KBR) - 2002 года выпуска
-
№АртикулНазвание
-
14KB-84314-00-00 BULB (12VOLTS30/30WATTS)BULB (12VOLTS30/30WATTS)
-
25KM-84320-00-00 LENS ASSYLENS ASSY
-
35EH-84340-00-00 SOCKET CORD ASSY 1SOCKET CORD ASSY 1
-
42GU-84330-70-00 BODY ASSY (YAMAHA BLACK)BODY ASSY (YAMAHA BLACK)
-
54KB-84169-00-00 GUARD, HEADLIGHTGUARD, HEADLIGHT
-
62GU-84331-00-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
72GU-84332-00-00 SPRING, SCREWSPRING, SCREW
-
82GU-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
995807-08055-00 BOLT, FLANGEBOLT, FLANGE
-
103GD-84345-00-00 DAMPER, HEADLIGHTDAMPER, HEADLIGHT
-
112GU-84338-00-00 COLLAR, BODY FITTINGCOLLAR, BODY FITTING
-
1297707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1390183-05042-00 NUT, SPRINGNUT, SPRING
