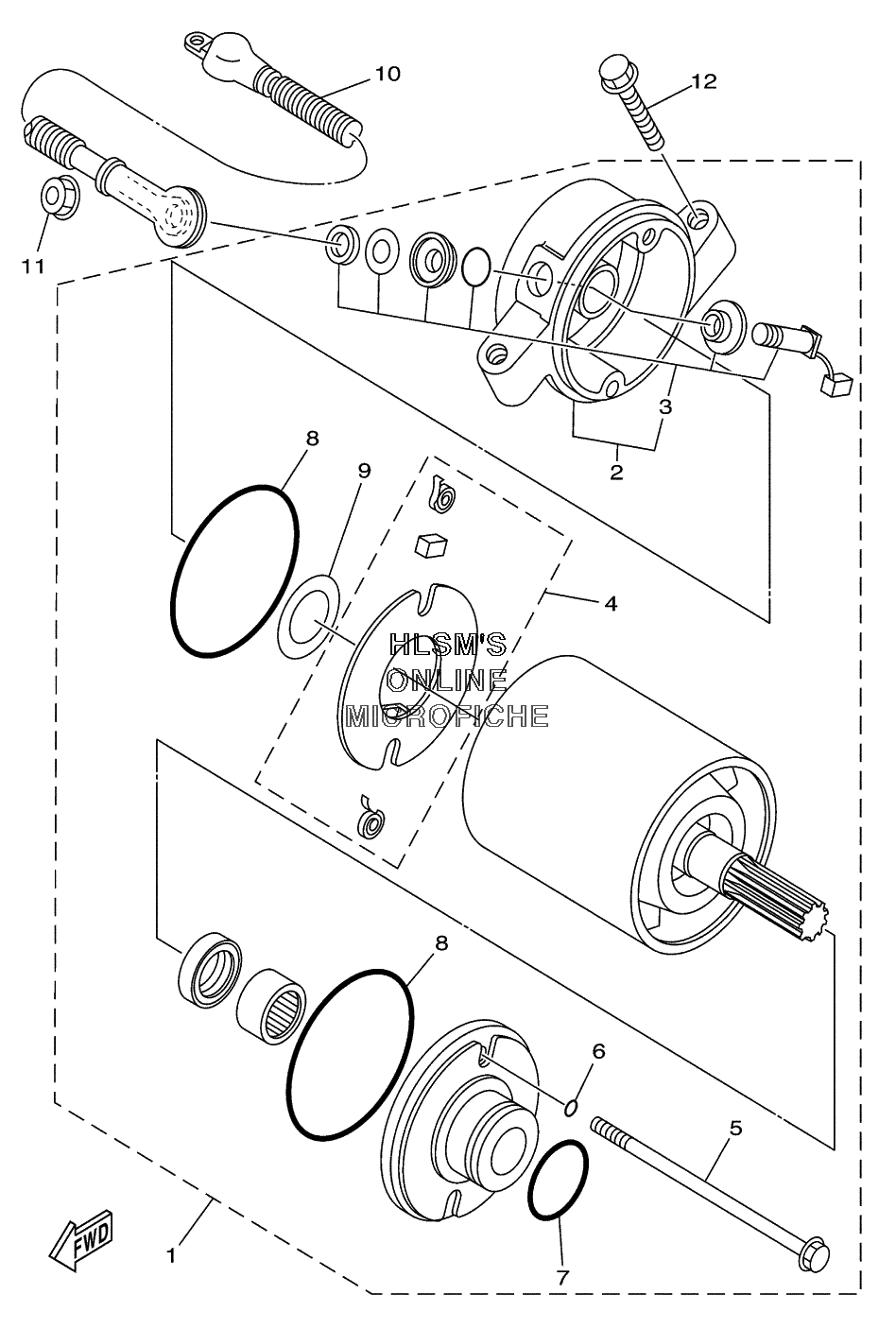

STARTING MOTOR для Yamaha WOLVERINE YFM350FXP (4KBR) - 2002 года выпуска
-
№АртикулНазвание
-
14KB-81890-00-00 MOTOR ASSYMOTOR ASSY
-
24KB-81820-00-00 ...REAR BRACKET ASSY...REAR BRACKET ASSY
-
34KB-81818-00-00 ......BRUSH AND BOLT......BRUSH AND BOLT
-
44H7-81840-00-00 ...BRUSH HOLDER ASSY...BRUSH HOLDER ASSY
-
53GD-81826-00-00 ...BOLT, THROUGH...BOLT, THROUGH
-
68L6-81847-50-00 ...O-RING...O-RING
-
71UY-81847-50-00 ...O-RING...O-RING
-
84H7-81844-50-00 ...GASKET...GASKET
-
94H7-81843-50-00 ...WASHER 1...WASHER 1
-
104KB-81815-00-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
1195302-06600-00 NUTNUT
-
1295027-06030-00 BOLT, FLANGEBOLT, FLANGE
