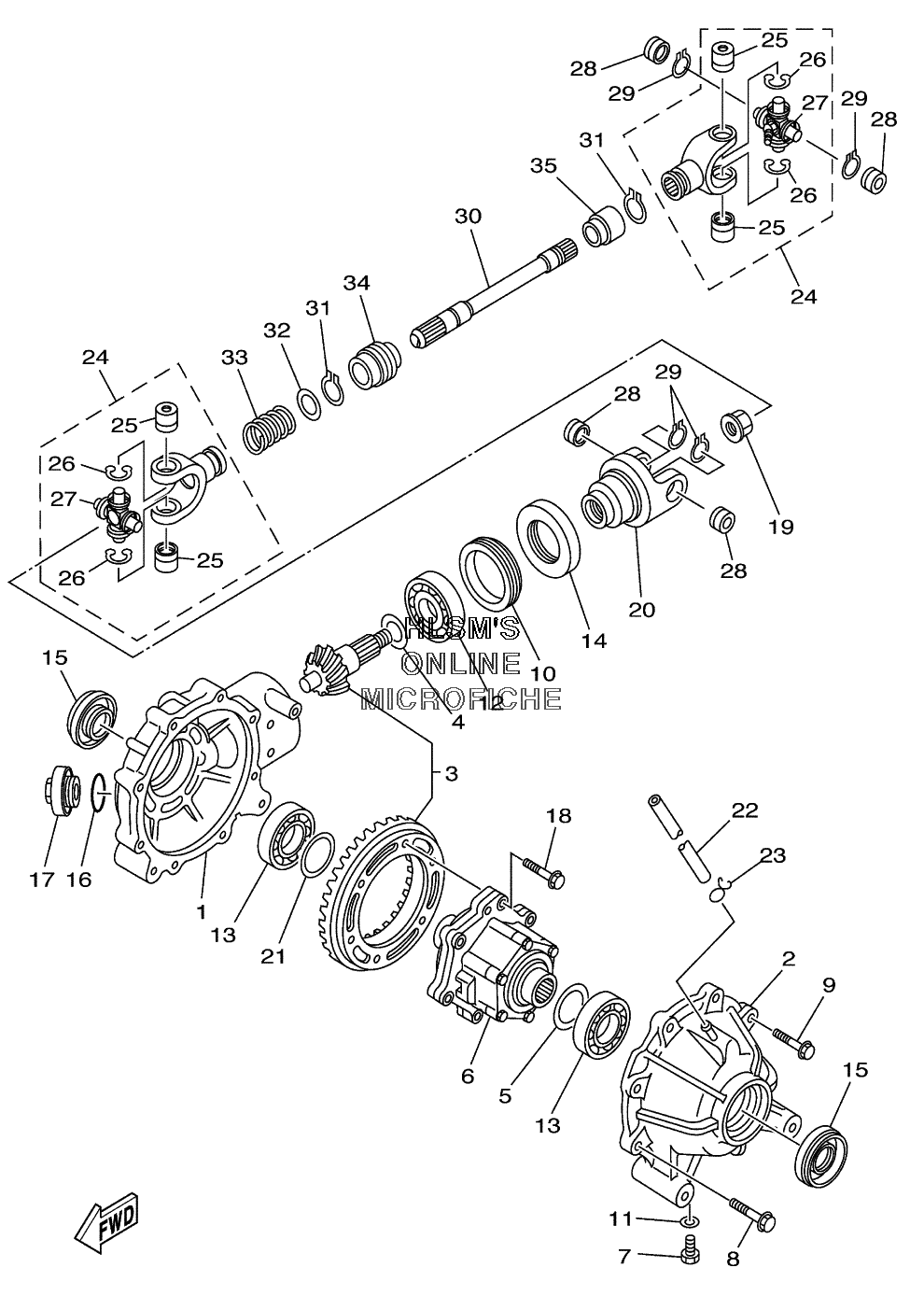

DIFFERENTIAL - FRONT W/ DRIVE AXLE для Yamaha WOLVERINE YFM350FXP (4KBR) - 2002 года выпуска
-
№АртикулНазвание
-
14KB-46161-00-00 HOUSING, SHAFT DRIVE 2HOUSING, SHAFT DRIVE 2
-
24KB-46162-00-00 HOUSING, BEARING 2HOUSING, BEARING 2
-
34KB-W4614-11-00 PINION DRIVE GEAR SETPINION DRIVE GEAR SET
-
44KB-46127-00-00 SHIM, DRIVE PINION (1.82THICKNESS) (OPT)SHIM, DRIVE PINION (1.82THICKNESS) (OPT)
-
44KB-46127-10-00 SHIM, DRIVE PINION (1.88THICKNESS) (OPT)SHIM, DRIVE PINION (1.88THICKNESS) (OPT)
-
44KB-46127-20-00 SHIM, DRIVE PINION (1.94THICKNESS) (OPT)SHIM, DRIVE PINION (1.94THICKNESS) (OPT)
-
44KB-46127-30-00 SHIM, DRIVE PINION (2.00THICKNESS) (OPT)SHIM, DRIVE PINION (2.00THICKNESS) (OPT)
-
44KB-46127-40-00 SHIM, DRIVE PINION (2.06THICKNESS) (OPT)SHIM, DRIVE PINION (2.06THICKNESS) (OPT)
-
44KB-46127-50-00 SHIM, DRIVE PINION (2.12THICKNESS) (OPT)SHIM, DRIVE PINION (2.12THICKNESS) (OPT)
-
44KB-46127-60-00 SHIM, DRIVE PINION (2.18THICKNESS) (OPT)SHIM, DRIVE PINION (2.18THICKNESS) (OPT)
-
54KB-46117-00-00 SHIM, RING GEAR (0.50THICKNESS) (OPT)SHIM, RING GEAR (0.50THICKNESS) (OPT)
-
54KB-46117-10-00 SHIM, RING GEAR (0.55THICKNESS) (OPT)SHIM, RING GEAR (0.55THICKNESS) (OPT)
-
54KB-46117-20-00 SHIM, RING GEAR (0.60THICKNESS) (OPT)SHIM, RING GEAR (0.60THICKNESS) (OPT)
-
54KB-46117-30-00 SHIM, RING GEAR (0.65THICKNESS) (OPT)SHIM, RING GEAR (0.65THICKNESS) (OPT)
-
54KB-46117-40-00 SHIM, RING GEAR (0.70THICKNESS) (OPT)SHIM, RING GEAR (0.70THICKNESS) (OPT)
-
54KB-46117-50-00 SHIM, RING GEAR (0.75THICKNESS) (OPT)SHIM, RING GEAR (0.75THICKNESS) (OPT)
-
54KB-46117-60-00 SHIM, RING GEAR (0.80THICKNESS) (OPT)SHIM, RING GEAR (0.80THICKNESS) (OPT)
-
54KB-46117-70-00 SHIM, RING GEAR (0.85THICKNESS) (OPT)SHIM, RING GEAR (0.85THICKNESS) (OPT)
-
54KB-46117-80-00 SHIM, RING GEAR (0.90THICKNESS) (OPT)SHIM, RING GEAR (0.90THICKNESS) (OPT)
-
54KB-46117-90-00 SHIM, RING GEAR (0.95THICKNESS) (OPT)SHIM, RING GEAR (0.95THICKNESS) (OPT)
-
54KB-46117-A0-00 SHIM, RING GEAR (1.00THICKNESS) (OPT)SHIM, RING GEAR (1.00THICKNESS) (OPT)
-
54KB-46117-B0-00 SHIM, RING GEAR (1.05THICKNESS) (OPT)SHIM, RING GEAR (1.05THICKNESS) (OPT)
-
54KB-46117-C0-00 SHIM, RING GEAR (1.10THICKNESS) (OPT)SHIM, RING GEAR (1.10THICKNESS) (OPT)
-
54KB-46117-D0-00 SHIM, RING GEAR (1.15THICKNESS) (OPT)SHIM, RING GEAR (1.15THICKNESS) (OPT)
-
54KB-46117-E0-00 SHIM, RING GEAR (1.20THICKNESS) (OPT)SHIM, RING GEAR (1.20THICKNESS) (OPT)
-
54KB-46117-F0-00 SHIM, RING GEAR (1.25THICKNESS) (OPT)SHIM, RING GEAR (1.25THICKNESS) (OPT)
-
54KB-46117-G0-00 SHIM, RING GEAR (1.30THICKNESS) (OPT)SHIM, RING GEAR (1.30THICKNESS) (OPT)
-
54KB-46117-H0-00 SHIM, RING GEAR (1.35THICKNESS) (OPT)SHIM, RING GEAR (1.35THICKNESS) (OPT)
-
54KB-46117-J0-00 SHIM, RING GEAR (1.40THICKNESS) (OPT)SHIM, RING GEAR (1.40THICKNESS) (OPT)
-
54KB-46117-K0-00 SHIM, RING GEAR (1.45THICKNESS) (OPT)SHIM, RING GEAR (1.45THICKNESS) (OPT)
-
54KB-46117-L0-00 SHIM, RING GEAR (1.50THICKNESS) (OPT)SHIM, RING GEAR (1.50THICKNESS) (OPT)
-
54KB-46117-M0-00 SHIM, RING GEAR (1.55THICKNESS) (OPT)SHIM, RING GEAR (1.55THICKNESS) (OPT)
-
54KB-46117-N0-00 SHIM, RING GEAR (1.60THICKNESS) (OPT)SHIM, RING GEAR (1.60THICKNESS) (OPT)
-
64KB-46470-12-00 LIMITED SLIP DIFFASSYLIMITED SLIP DIFFASSY
-
790105-08759-00 BOLT, FLANGEBOLT, FLANGE
-
890105-082A7-00 BOLT, FLANGEBOLT, FLANGE
-
990105-102A8-00 BOLT, FLANGEBOLT, FLANGE
-
1090179-60664-00 NUTNUT
-
1190201-086R7-00 WASHER, PLATEWASHER, PLATE
-
1293306-37210-00 BEARINGBEARING
-
1393306-07804-00 BEARINGBEARING
-
1493103-38178-00 OIL SEALOIL SEAL
-
1593105-22029-00 OIL SEALOIL SEAL
-
1693210-313A0-00 O-RINGO-RING
-
174KB-11186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
1890105-08756-00 BOLT, FLANGEBOLT, FLANGE
-
1990179-16671-00 NUTNUT
-
204KB-46146-12-00 YOKE, JOINT 2YOKE, JOINT 2
-
214KB-46119-00-00 SHIM, THRUST (0.50THICKNESS) (OPT)SHIM, THRUST (0.50THICKNESS) (OPT)
-
214KB-46119-10-00 SHIM, THRUST (0.55THICKNESS) (OPT)SHIM, THRUST (0.55THICKNESS) (OPT)
-
214KB-46119-20-00 SHIM, THRUST (0.60THICKNESS) (OPT)SHIM, THRUST (0.60THICKNESS) (OPT)
-
214KB-46119-30-00 SHIM, THRUST (0.65THICKNESS) (OPT)SHIM, THRUST (0.65THICKNESS) (OPT)
-
214KB-46119-40-00 SHIM, THRUST (0.70THICKNESS) (OPT)SHIM, THRUST (0.70THICKNESS) (OPT)
-
214KB-46119-50-00 SHIM, THRUST (0.75THICKNESS) (OPT)SHIM, THRUST (0.75THICKNESS) (OPT)
-
214KB-46119-60-00 SHIM, THRUST (0.80THICKNESS) (OPT)SHIM, THRUST (0.80THICKNESS) (OPT)
-
214KB-46119-70-00 SHIM, THRUST (0.85THICKNESS) (OPT)SHIM, THRUST (0.85THICKNESS) (OPT)
-
214KB-46119-80-00 SHIM, THRUST (0.90THICKNESS) (OPT)SHIM, THRUST (0.90THICKNESS) (OPT)
-
214KB-46119-90-00 SHIM, THRUST (0.95THICKNESS) (OPT)SHIM, THRUST (0.95THICKNESS) (OPT)
-
214KB-46119-A0-00 SHIM, THRUST (1.00THICKNESS) (OPT)SHIM, THRUST (1.00THICKNESS) (OPT)
-
214KB-46119-B0-00 SHIM, THRUST (1.05THICKNESS) (OPT)SHIM, THRUST (1.05THICKNESS) (OPT)
-
214KB-46119-C0-00 SHIM, THRUST (1.10THICKNESS) (OPT)SHIM, THRUST (1.10THICKNESS) (OPT)
-
214KB-46119-D0-00 SHIM, THRUST (1.10THICKNESS) (OPT)SHIM, THRUST (1.10THICKNESS) (OPT)
-
214KB-46119-E0-00 SHIM, THRUST (1.20THICKNESS) (OPT)SHIM, THRUST (1.20THICKNESS) (OPT)
-
214KB-46119-F0-00 SHIM, THRUST (1.25THICKNESS) (OPT)SHIM, THRUST (1.25THICKNESS) (OPT)
-
214KB-46119-G0-00 SHIM, THRUST (1.30THICKNESS) (OPT)SHIM, THRUST (1.30THICKNESS) (OPT)
-
214KB-46119-H0-00 SHIM, THRUST (1.35THICKNESS) (OPT)SHIM, THRUST (1.35THICKNESS) (OPT)
-
214KB-46119-J0-00 SHIM, THRUST (1.40THICKNESS) (OPT)SHIM, THRUST (1.40THICKNESS) (OPT)
-
214KB-46119-K0-00 SHIM, THRUST (1.45THICKNESS) (OPT)SHIM, THRUST (1.45THICKNESS) (OPT)
-
214KB-46119-L0-00 SHIM, THRUST (1.50THICKNESS) (OPT)SHIM, THRUST (1.50THICKNESS) (OPT)
-
214KB-46119-M0-00 SHIM, THRUST (1.55THICKNESS) (OPT)SHIM, THRUST (1.55THICKNESS) (OPT)
-
214KB-46119-N0-00 SHIM, THRUST (1.60THICKNESS) (OPT)SHIM, THRUST (1.60THICKNESS) (OPT)
-
2290445-072J4-00 HOSE (L1120)HOSE (L1120)
-
2390467-06016-00 CLIPCLIP
-
245FU-46108-00-00 CROSS JOINT COMP3CROSS JOINT COMP3
-
2593399-99948-00 ...BEARING...BEARING
-
2693440-20088-00 ...CIRCLIP...CIRCLIP
-
275GT-46187-00-00 ...SPIDER...SPIDER
-
2893399-99948-00 BEARINGBEARING
-
2993440-20088-00 CIRCLIPCIRCLIP
-
304KB-46173-10-00 SHAFT, DRIVE 2SHAFT, DRIVE 2
-
3199009-19400-00 CIRCLIPCIRCLIP
-
3290201-20266-00 WASHER, PLATE (1.0THICKNESS)WASHER, PLATE (1.0THICKNESS)
-
3390501-235L9-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
345GT-46136-00-00 SEAL 1SEAL 1
-
355GT-46137-00-00 SEAL 2SEAL 2
