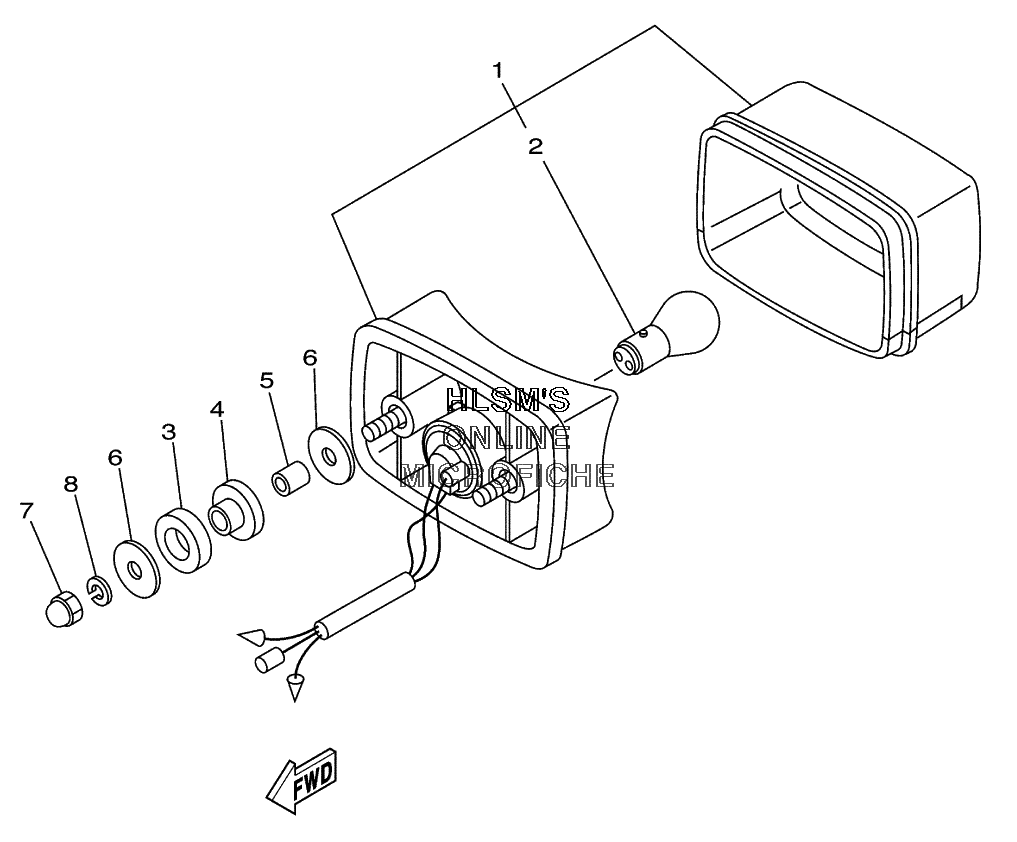

TAILLIGHT для Yamaha WOLVERINE YFM350FXP (4KBR) - 2002 года выпуска
-
№АртикулНазвание
-
15KM-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
21A2-84714-41-00 ...BULB (12VOLTS-21/5WATTS)...BULB (12VOLTS-21/5WATTS)
-
390202-14077-00 WASHER, PLATEWASHER, PLATE
-
490480-14088-00 GROMMETGROMMET
-
590560-07007-00 SPACERSPACER
-
690201-06074-00 WASHER, PLATEWASHER, PLATE
-
795307-06800-00 NUTNUT
-
892907-06100-00 WASHER, SPRINGWASHER, SPRING
