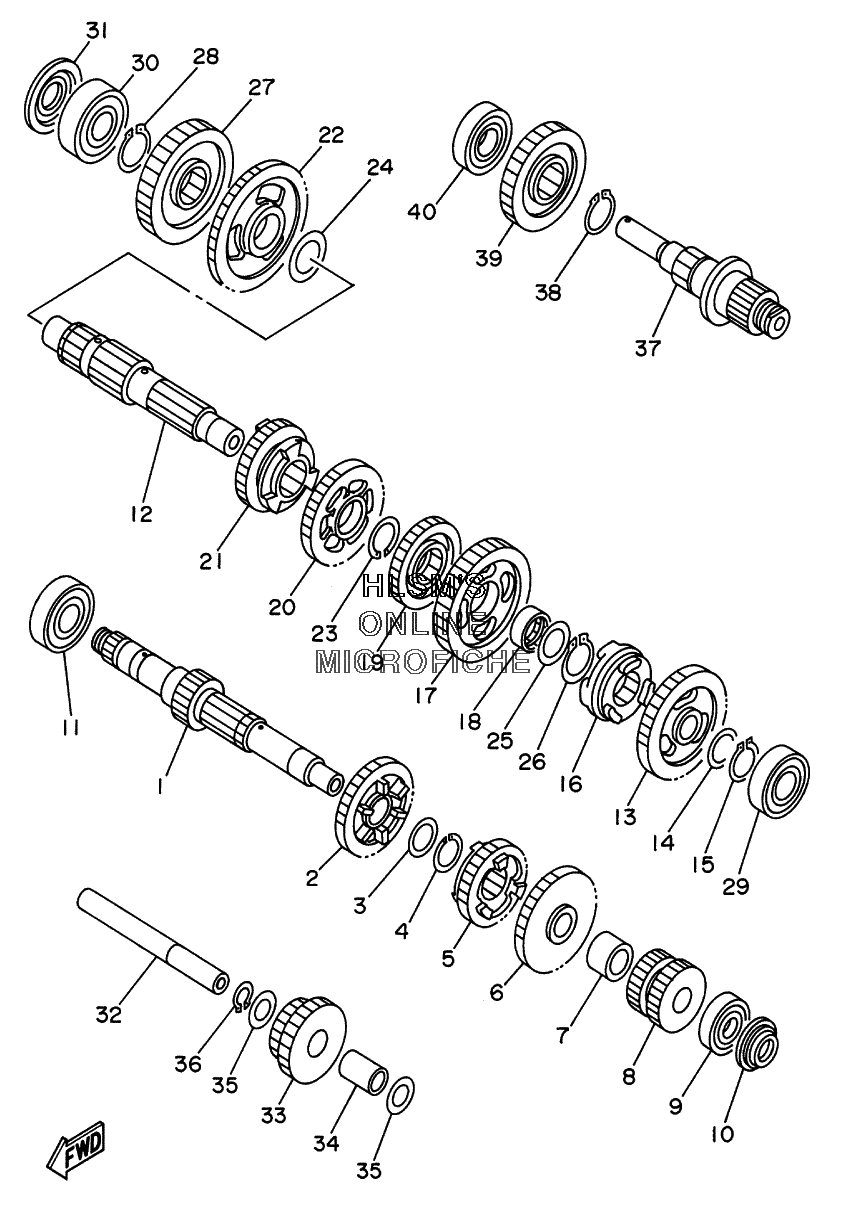

TRANSMISSION для Yamaha WOLVERINE YFM350FXP (4KBR) - 2002 года выпуска
-
№АртикулНазвание
-
14KB-17411-00-00 AXLE, MAINAXLE, MAIN
-
21YW-17151-00-00 GEAR, 5TH PINION (29TEETH)GEAR, 5TH PINION (29TEETH)
-
390209-21338-00 WASHERWASHER
-
493440-24173-00 CIRCLIPCIRCLIP
-
54KB-17131-00-00 GEAR, 3RD PINION (22TEETH)GEAR, 3RD PINION (22TEETH)
-
64KB-17141-00-00 GEAR, 4TH PINION (25TEETH)GEAR, 4TH PINION (25TEETH)
-
790387-1904J-00 COLLARCOLLAR
-
84KB-17121-00-00 GEAR, 2ND PINION (18TEETH)GEAR, 2ND PINION (18TEETH)
-
993306-20301-00 BEARINGBEARING
-
1093104-17094-00 OIL SEALOIL SEAL
-
1193306-27202-00 BEARINGBEARING
-
124KB-17421-00-00 AXLE, DRIVEAXLE, DRIVE
-
131YW-17221-00-00 GEAR, 2ND WHEEL (34TEETH)GEAR, 2ND WHEEL (34TEETH)
-
1490201-20276-00 WASHER, PLATE (1.0THICKNESS)WASHER, PLATE (1.0THICKNESS)
-
1593410-20038-00 CIRCLIPCIRCLIP
-
164KB-17285-00-00 CLUTCH, DOGCLUTCH, DOG
-
174KB-17243-00-00 GEAR, REVERSE WHEEL1 (35TEETH)GEAR, REVERSE WHEEL1 (35TEETH)
-
1890387-2104H-00 COLLARCOLLAR
-
194KB-17241-00-00 GEAR, 4TH WHEEL (26TEETH)GEAR, 4TH WHEEL (26TEETH)
-
201YW-17231-01-00 GEAR, 3RD WHEEL (30TEETH)GEAR, 3RD WHEEL (30TEETH)
-
214KB-17251-00-00 GEAR, 5TH WHEEL (24TEETH)GEAR, 5TH WHEEL (24TEETH)
-
224KB-17211-00-00 GEAR, 1ST WHEEL (38TEETH)GEAR, 1ST WHEEL (38TEETH)
-
2393440-25020-00 CIRCLIPCIRCLIP
-
2490201-266F6-00 WASHER, PLATEWASHER, PLATE
-
2590209-22191-00 WASHERWASHER
-
2693410-25017-00 CIRCLIPCIRCLIP
-
274KB-17582-00-00 GEAR, MIDDLE DRIVE (28TEETH)GEAR, MIDDLE DRIVE (28TEETH)
-
2893410-26067-00 CIRCLIPCIRCLIP
-
2993306-20401-00 BEARING (B6204)BEARING (B6204)
-
3093306-30424-00 BEARING (B6304A3)BEARING (B6304A3)
-
3193104-20068-00 OIL SEALOIL SEAL
-
324KB-17432-00-00 AXLE, IDLEAXLE, IDLE
-
334KB-17253-00-00 GEAR, REVERSE WHEEL 2 (22TEETH)GEAR, REVERSE WHEEL 2 (22TEETH)
-
3490387-1504G-00 COLLARCOLLAR
-
3590201-150U6-00 WASHER, PLATEWASHER, PLATE
-
3693440-15012-00 CIRCLIPCIRCLIP
-
374KB-17523-00-00 SHAFTSHAFT
-
3893410-26067-00 CIRCLIPCIRCLIP
-
394KB-17583-00-00 GEAR, MIDDLE DRIVEN (24TEETH)GEAR, MIDDLE DRIVEN (24TEETH)
-
4093306-00426-00 BEARINGBEARING
