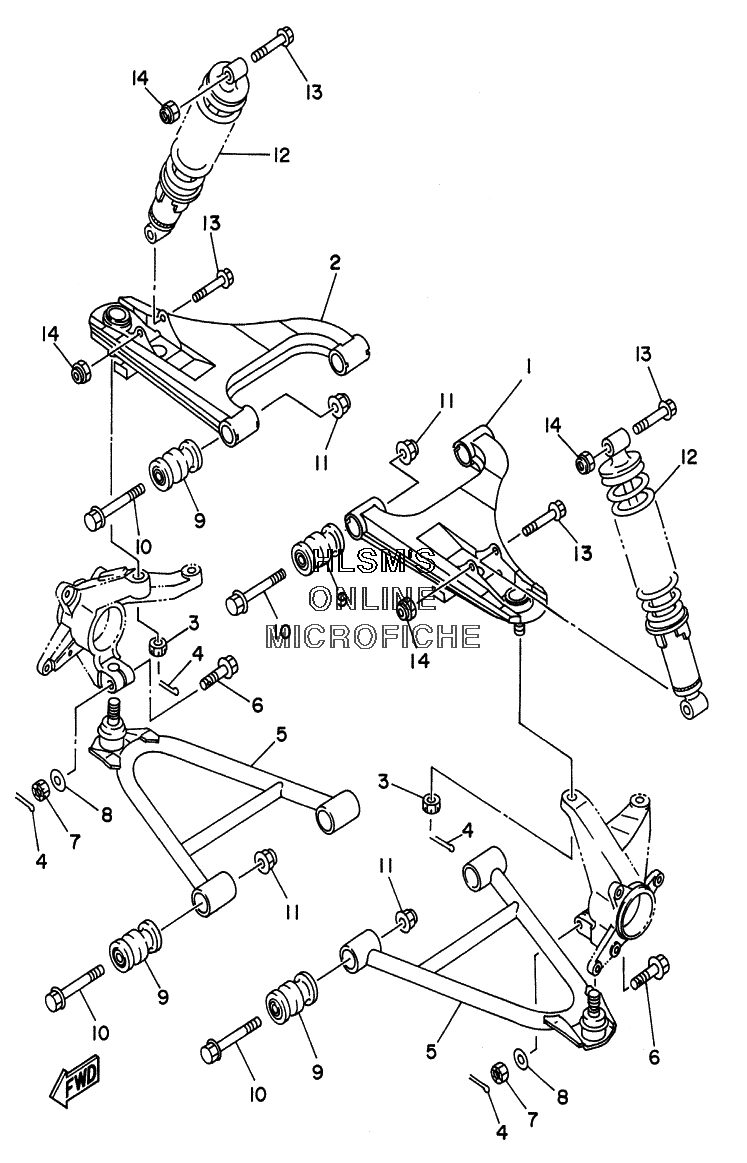

SUSPENSION - FRONT для Yamaha WOLVERINE YFM350FXP (4KBR) - 2002 года выпуска
-
№АртикулНазвание
-
14WU-23540-00-00 FRONT UPPER ARM COMP(LEFT)FRONT UPPER ARM COMP(LEFT)
-
24WU-23550-00-00 FRONT UPPER ARM COMP(RIGHT)FRONT UPPER ARM COMP(RIGHT)
-
390171-10046-00 NUT, CASTLENUT, CASTLE
-
491401-20020-00 PIN, COTTERPIN, COTTER
-
54KB-23570-11-00 FRONT LOWER ARM COMP(LEFT)FRONT LOWER ARM COMP(LEFT)
-
690105-10549-00 BOLT, FLANGEBOLT, FLANGE
-
795337-10600-00 NUTNUT
-
890201-10430-00 WASHER, PLATEWASHER, PLATE
-
92HR-23526-00-00 BUSHBUSH
-
1090105-10253-00 BOLT, FLANGEBOLT, FLANGE
-
1190185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
124KB-23350-10-35 SHOCK ABSORBER ASSY (PASTEL DEEP GREEN) (PDG)SHOCK ABSORBER ASSY (PASTEL DEEP GREEN) (PDG)
-
124KB-23350-10-36 SHOCK ABSORBER ASSY (DEEP PURPLISH BLUE SOLID E) (DPBSE)SHOCK ABSORBER ASSY (DEEP PURPLISH BLUE SOLID E) (DPBSE)
-
1390105-10388-00 BOLT, FLANGEBOLT, FLANGE
-
1490185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
