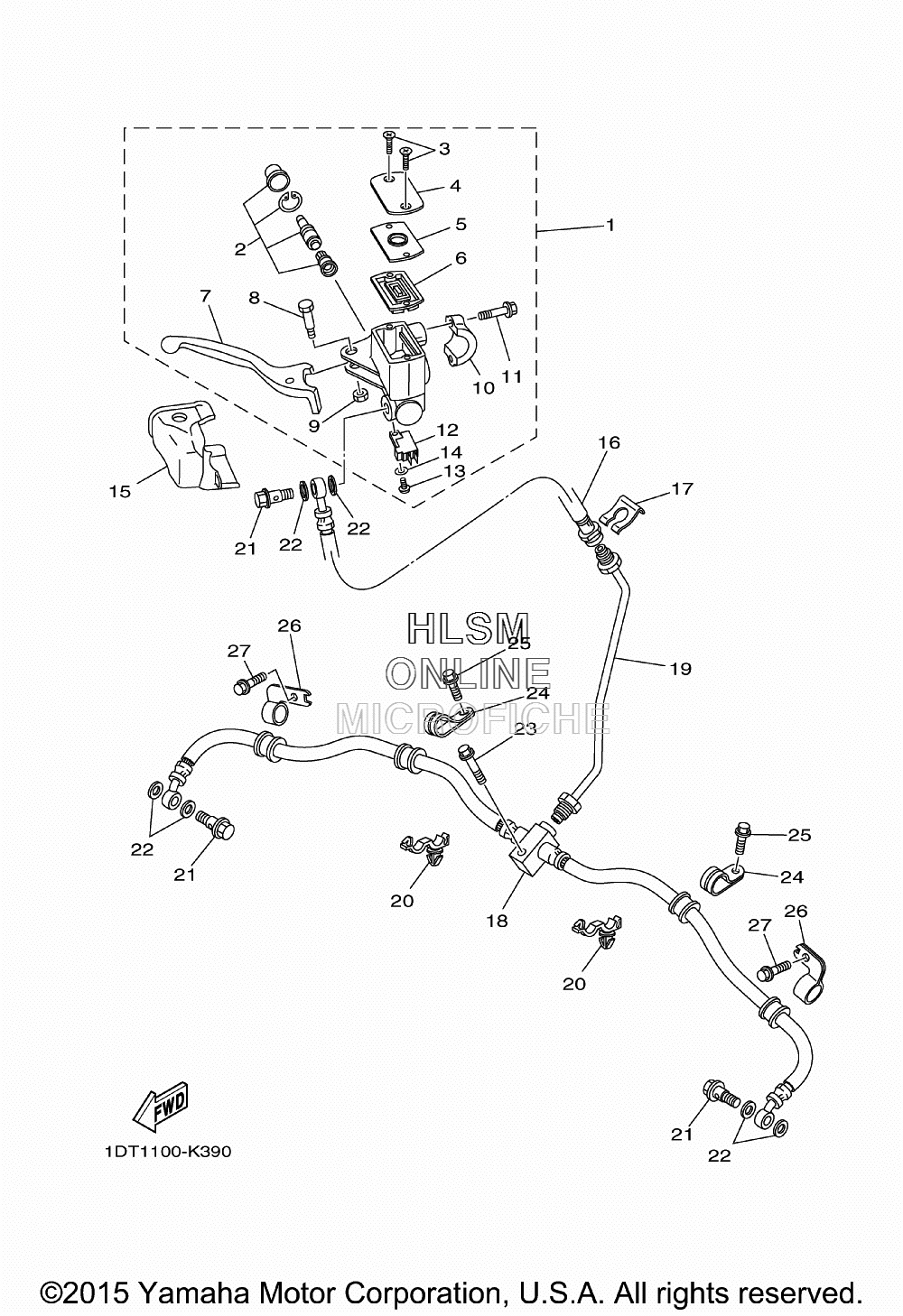

BRAKE - FRONT MASTER CYLINDER для Yamaha GRIZZLY 550 EPS 4WD HUNTER - 2011 года выпуска
-
№АртикулНазвание
-
13B4-2583T-00-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
25D3-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
398706-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
43GM-25852-22-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
53B4-2585B-00-00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
64TT-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
73B4-83922-00-00 ...LEVER 2...LEVER 2
-
83B4-2589F-00-00 ...BOLT, LEVER...BOLT, LEVER
-
995604-06100-00 ...NUT, U...NUT, U
-
1056A-25867-00-00 ...BRACKET, MASTER CYLINDER...BRACKET, MASTER CYLINDER
-
115EB-26332-00-00 ...BOLT...BOLT
-
124HM-83980-00-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
1398502-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1492902-04600-00 ...WASHER, PLATE...WASHER, PLATE
-
153B4-2637A-01-00 COVER, HANDLE LEVER 2COVER, HANDLE LEVER 2
-
163B4-25872-10-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
172GU-25866-00-00 CIRCLIPCIRCLIP
-
183B4-25873-10-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
193B4-25871-10-00 PIPE, BRAKEPIPE, BRAKE
-
2090464-20010-00 CLAMPCLAMP
-
2190401-10015-00 BOLT, UNIONBOLT, UNION
-
2290201-10118-00 WASHER, PLATEWASHER, PLATE
-
2395822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
243B4-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2595802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
263B4-25876-10-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
2795802-06012-00 BOLT, FLANGEBOLT, FLANGE
