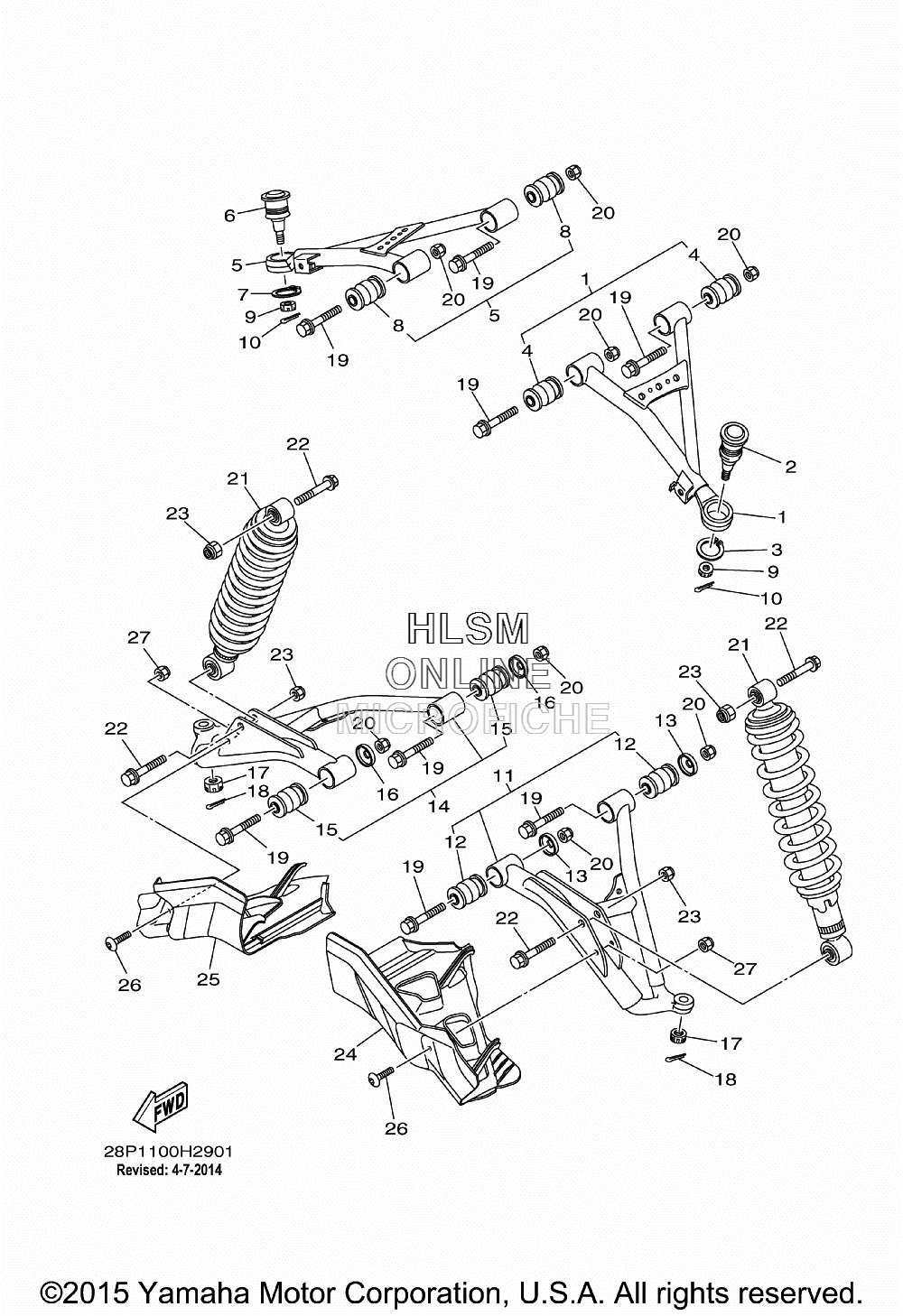

SUSPENSION - FRONT WHEEL для Yamaha GRIZZLY 550 EPS 4WD HUNTER - 2011 года выпуска
-
№АртикулНазвание
-
11HP-F3540-00-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
25LP-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
399009-30400-00 ...CIRCLIP...CIRCLIP
-
45KM-23526-10-00 ...BUSH...BUSH
-
51HP-F3550-00-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
65LP-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
799009-30400-00 ...CIRCLIP...CIRCLIP
-
85KM-23526-10-00 ...BUSH...BUSH
-
990171-10001-00 NUT, CASTLENUT, CASTLE
-
1091401-20020-00 PIN, COTTERPIN, COTTER
-
113B4-23570-00-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
125KM-23526-10-00 ...BUSH...BUSH
-
135KM-22149-10-00 WASHERWASHER
-
143B4-23580-00-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
155KM-23526-10-00 ...BUSH...BUSH
-
165KM-22149-10-00 WASHERWASHER
-
1790171-12001-00 NUT, CASTLENUT, CASTLE
-
1891490-25020-00 PIN. COTTERPIN. COTTER
-
1990105-10222-00 BOLT, FLANGEBOLT, FLANGE
-
2090185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2128P-23350-00-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
2290105-10131-00 BOLT, FLANGEBOLT, FLANGE
-
2390185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2428P-23123-00-00 COVER, UNDER 1COVER, UNDER 1
-
2528P-23133-00-00 COVER, LOWER 2COVER, LOWER 2
-
2690111-06136-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2795702-06300-00 NUT, NYLONNUT, NYLON
