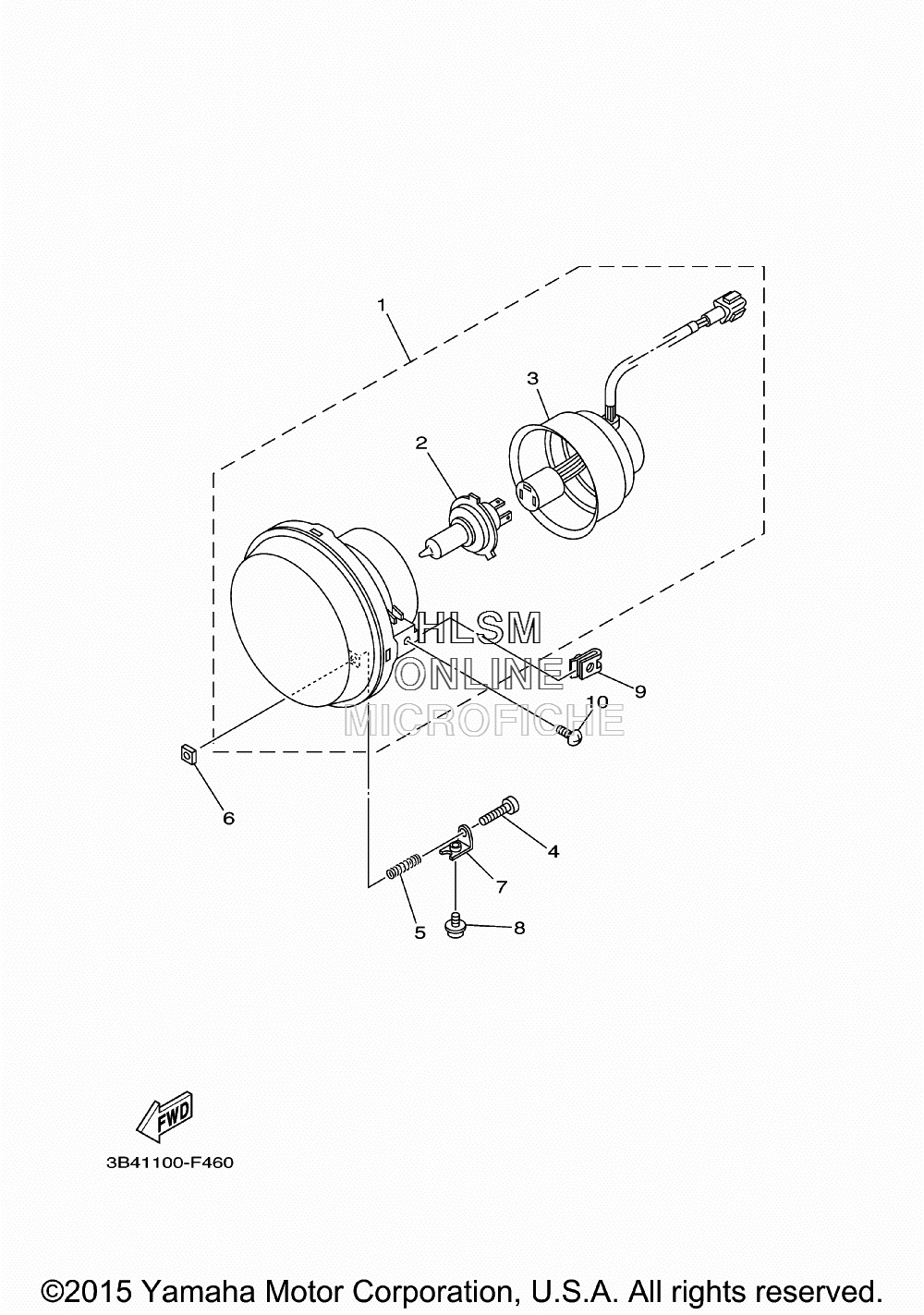

HEADLIGHT для Yamaha GRIZZLY 550 EPS 4WD HUNTER - 2011 года выпуска
-
№АртикулНазвание
-
128P-84300-00-00 HEADLIGHT ASSYHEADLIGHT ASSY
-
23B4-84314-00-00 ...BULB, HEADLIGHT (12V 35/35W)...BULB, HEADLIGHT (12V 35/35W)
-
33B4-84340-00-00 ...SOCKET CORD ASSY 1...SOCKET CORD ASSY 1
-
498502-03530-00 SCREW, PAN HEADSCREW, PAN HEAD
-
590501-05764-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
62GU-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
75GH-84703-10-00 BRACKETBRACKET
-
890159-05044-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
990183-05008-00 NUT, SPRINGNUT, SPRING
-
1090154-05021-00 SCREW, BINDINGSCREW, BINDING
