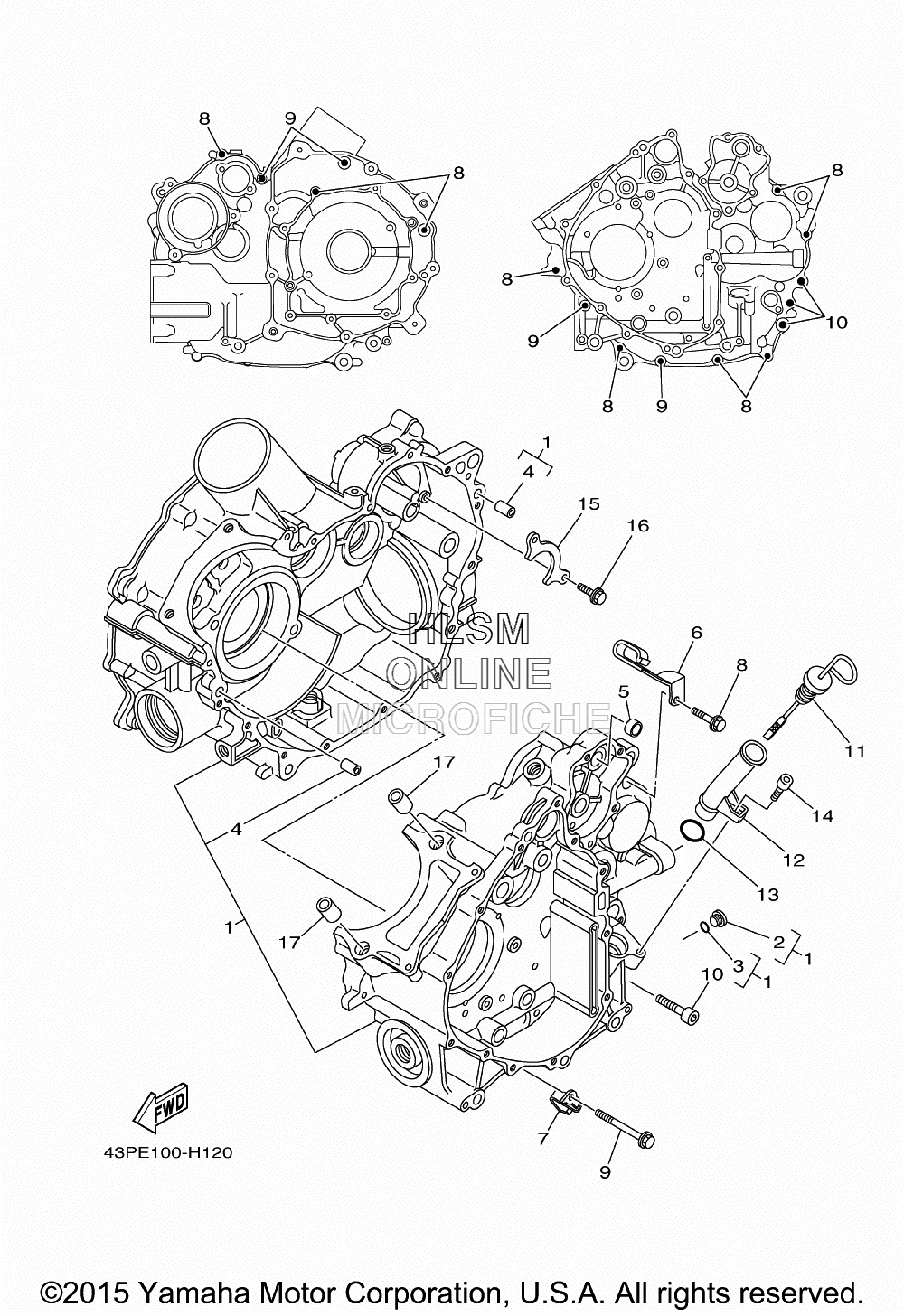

CRANKCASE для Yamaha GRIZZLY 550 EPS 4WD HUNTER - 2011 года выпуска
-
№АртикулНазвание
-
13B4-15100-25-00 CRANKCASE ASSYCRANKCASE ASSY
-
236Y-15189-00-00 ...PLUG...PLUG
-
393210-16325-00 ...O-RING...O-RING
-
499530-10116-00 ...PIN, DOWEL...PIN, DOWEL
-
53B4-18581-00-00 SPACER, CAM SHAFTSPACER, CAM SHAFT
-
690462-16003-00 CLAMPCLAMP
-
790462-08049-00 CLAMPCLAMP
-
895022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
995022-06060-00 BOLT, FLANGEBOLT, FLANGE
-
1091312-08040-00 BOLTBOLT
-
113B4-15362-01-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
123B4-15112-01-00 PIPE, OILPIPE, OIL
-
1393210-21631-00 O-RINGO-RING
-
1491312-06012-00 BOLTBOLT
-
153B4-15388-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1690105-06082-00 BOLT, FLANGEBOLT, FLANGE
-
1799530-14016-00 PIN, DOWELPIN, DOWEL
