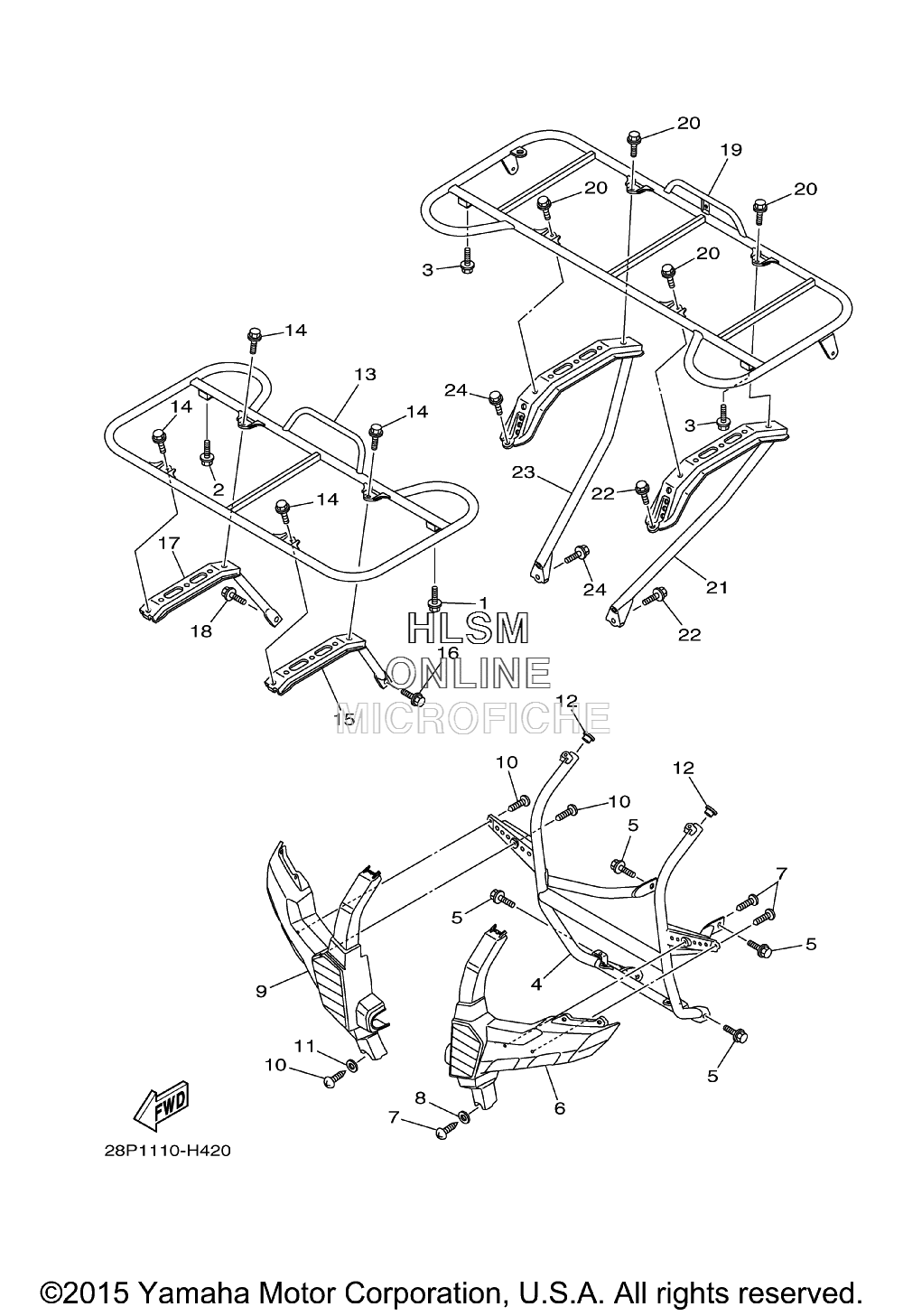

RACK AND BUMPER для Yamaha GRIZZLY 550 EPS 4WD HUNTER - 2011 года выпуска
-
№АртикулНазвание
-
190119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
290119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
43B4-2845N-00-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
595812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
63B4-2842M-00-00 COVER 1COVER 1
-
797702-50516-00 SCREW, TAPPINGSCREW, TAPPING
-
892902-05200-00 WASHERWASHER
-
93B4-2842N-00-00 COVER 2COVER 2
-
1097702-50516-00 SCREW, TAPPINGSCREW, TAPPING
-
1192902-05200-00 WASHERWASHER
-
1290338-18122-00 PLUGPLUG
-
133B4-24841-01-00 CARRIER, FRONTCARRIER, FRONT
-
1495812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
153B4-24821-00-00 STAY, FRONT CARRIER 1STAY, FRONT CARRIER 1
-
1690119-08118-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
173B4-24822-00-00 STAY, FRONT CARRIER 2STAY, FRONT CARRIER 2
-
1890119-08118-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
193B4-24842-01-00 CARRIER, REARCARRIER, REAR
-
2095812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
213B4-2482J-10-00 FRAME, CARRIER 1FRAME, CARRIER 1
-
2290119-10044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
233B4-2482K-10-00 FRAME, CARRIER 2FRAME, CARRIER 2
-
2490119-10044-00 BOLT, WITH WASHERBOLT, WITH WASHER
