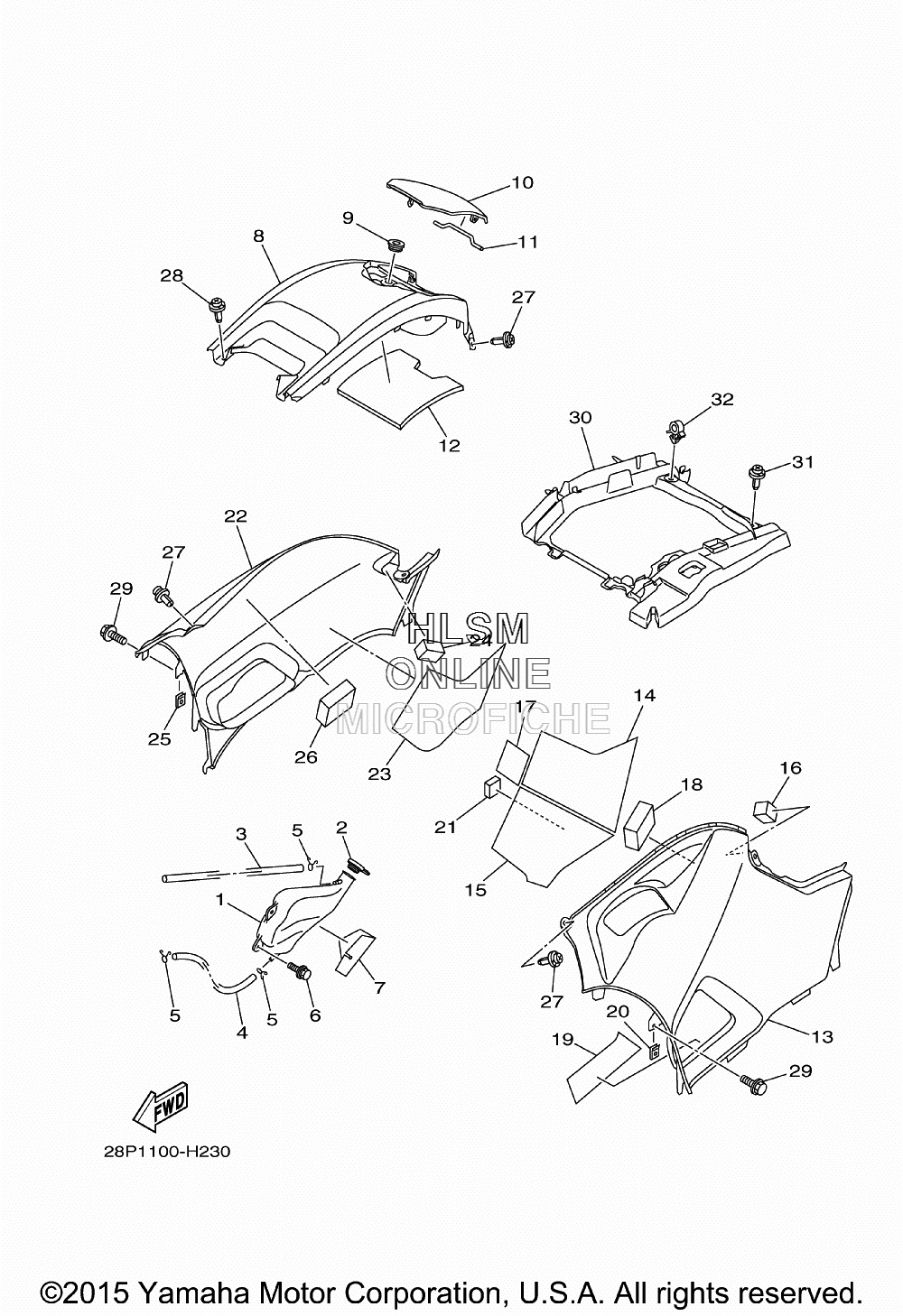

SIDE COVER для Yamaha GRIZZLY 550 EPS 4WD HUNTER - 2011 года выпуска
-
№АртикулНазвание
-
13B4-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
21S3-21875-00-00 CAPCAP
-
390445-09117-00 HOSE (L540)HOSE (L540)
-
490445-09110-00 HOSE (L420)HOSE (L420)
-
590467-08003-00 CLIPCLIP
-
690119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
73B4-2176E-00-00 PLATEPLATE
-
83B4-2171A-01-00 COVER, TOPCOVER, TOP
-
990480-01558-00 GROMMETGROMMET
-
103B4-2177B-01-00 LID, COVERLID, COVER
-
113B4-2177K-00-00 PIN, HINGEPIN, HINGE
-
123B4-21747-00-00 DAMPERDAMPER
-
133B4-21711-D0-00 COVER, SIDE 1COVER, SIDE 1
-
143B4-2174A-00-00 INSULATOR, SIDE COVERINSULATOR, SIDE COVER
-
153B4-2173N-00-00 SEAL 4SEAL 4
-
163B4-21717-00-00 DAMPERDAMPER
-
171S3-82123-00-00 SEAT, BATTERYSEAT, BATTERY
-
183B4-2174Y-00-00 DAMPERDAMPER
-
193B4-2173M-00-00 SEAL 3SEAL 3
-
2090183-06053-00 NUT, SPRINGNUT, SPRING
-
213B4-2177N-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
223B4-21721-D0-00 COVER, SIDE 2COVER, SIDE 2
-
233B4-2174T-00-00 INSULATOR, SIDE COVER 2INSULATOR, SIDE COVER 2
-
243B4-21717-00-00 DAMPERDAMPER
-
2590183-06053-00 NUT, SPRINGNUT, SPRING
-
263B4-2174Y-00-00 DAMPERDAMPER
-
2790269-07012-00 RIVETRIVET
-
2890269-06081-00 RIVETRIVET
-
2990119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
303B4-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
3190269-07010-00 RIVETRIVET
-
3290464-16012-00 CLAMPCLAMP
