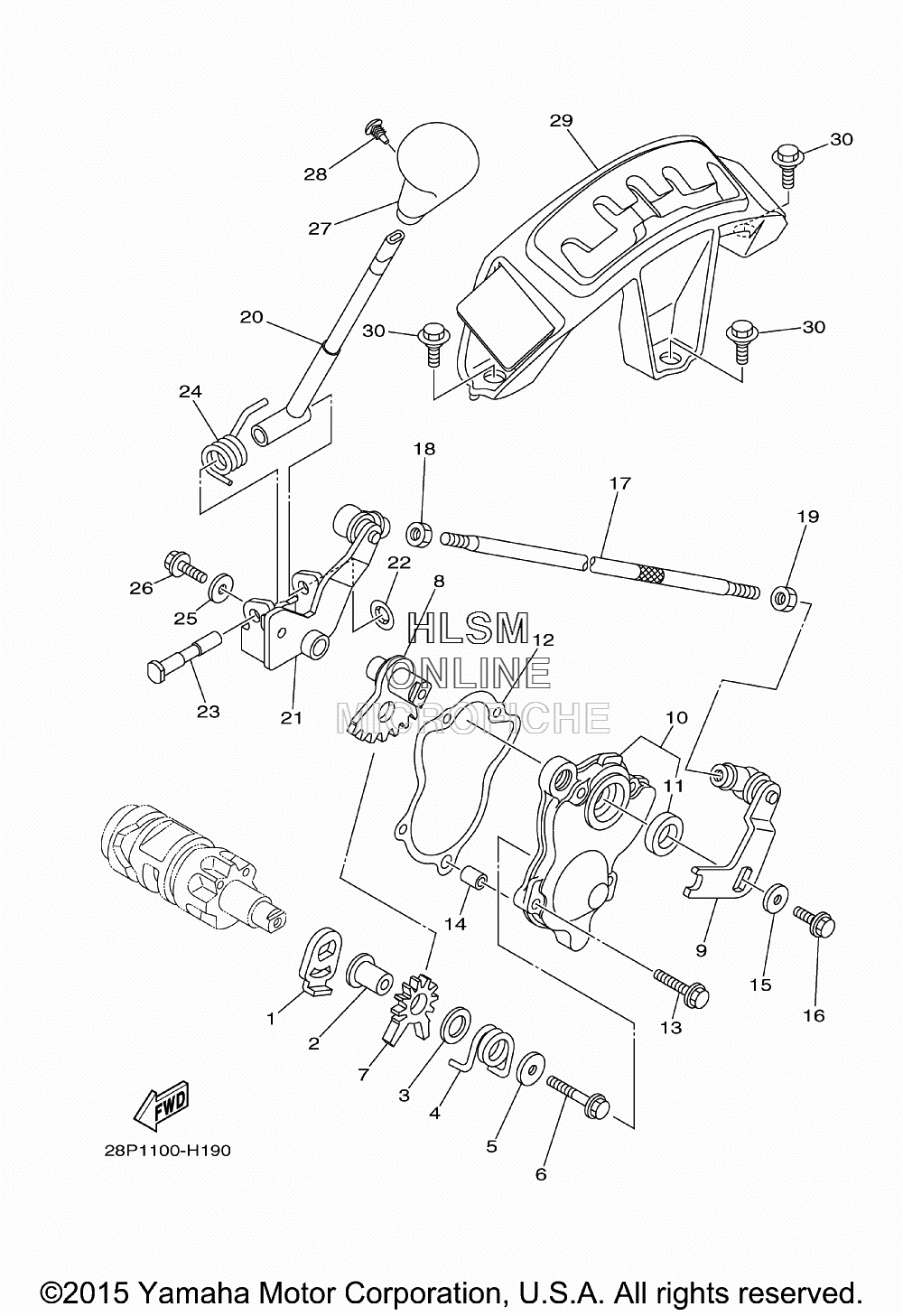

SHIFT SHAFT для Yamaha GRIZZLY 550 EPS 4WD HUNTER - 2011 года выпуска
-
№АртикулНазвание
-
14SH-18198-00-00 LEVERLEVER
-
290387-0613B-00 COLLARCOLLAR
-
390201-132G5-00 WASHER, PLATEWASHER, PLATE
-
490508-32117-00 SPRING, TORSIONSPRING, TORSION
-
590201-06036-00 WASHER, PLATEWASHER, PLATE
-
695812-06035-00 BOLT, FLANGEBOLT, FLANGE
-
75KM-18191-00-00 LEVERLEVER
-
83B4-18103-10-00 SHIFT SHAFT COMP.SHIFT SHAFT COMP.
-
928P-18104-00-00 SHIFT GUIDE COMP.SHIFT GUIDE COMP.
-
103B4-18380-00-00 SHIFTER BRKT. ASSYSHIFTER BRKT. ASSY
-
1193102-15212-00 ...OIL SEAL...OIL SEAL
-
123B4-18146-00-00 GASKETGASKET
-
1395022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1499530-08012-00 PIN, DOWELPIN, DOWEL
-
1590201-06036-00 WASHER, PLATEWASHER, PLATE
-
1690105-06176-00 BOLT, FLANGEBOLT, FLANGE
-
1728P-18115-00-00 ROD, SHIFTROD, SHIFT
-
1890170-06228-00 NUT (COUNTER CLOCKWISE)NUT (COUNTER CLOCKWISE)
-
1995304-06700-00 NUTNUT
-
203B4-18190-20-00 LEVER COMP. 1LEVER COMP. 1
-
213B4-18169-20-00 ARM, SHIFT 2ARM, SHIFT 2
-
2290183-080A1-00 NUT, SPRINGNUT, SPRING
-
233B4-18125-00-00 SHAFT, SHIFTSHAFT, SHIFT
-
243B4-18196-00-00 SPRING, RETURNSPRING, RETURN
-
2590201-06036-00 WASHER, PLATEWASHER, PLATE
-
2695812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2728P-18174-00-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
2890269-05055-00 RIVETRIVET
-
293B4-18160-00-00 SHIFT GUIDE ASSYSHIFT GUIDE ASSY
-
3090109-06172-00 BOLTBOLT
