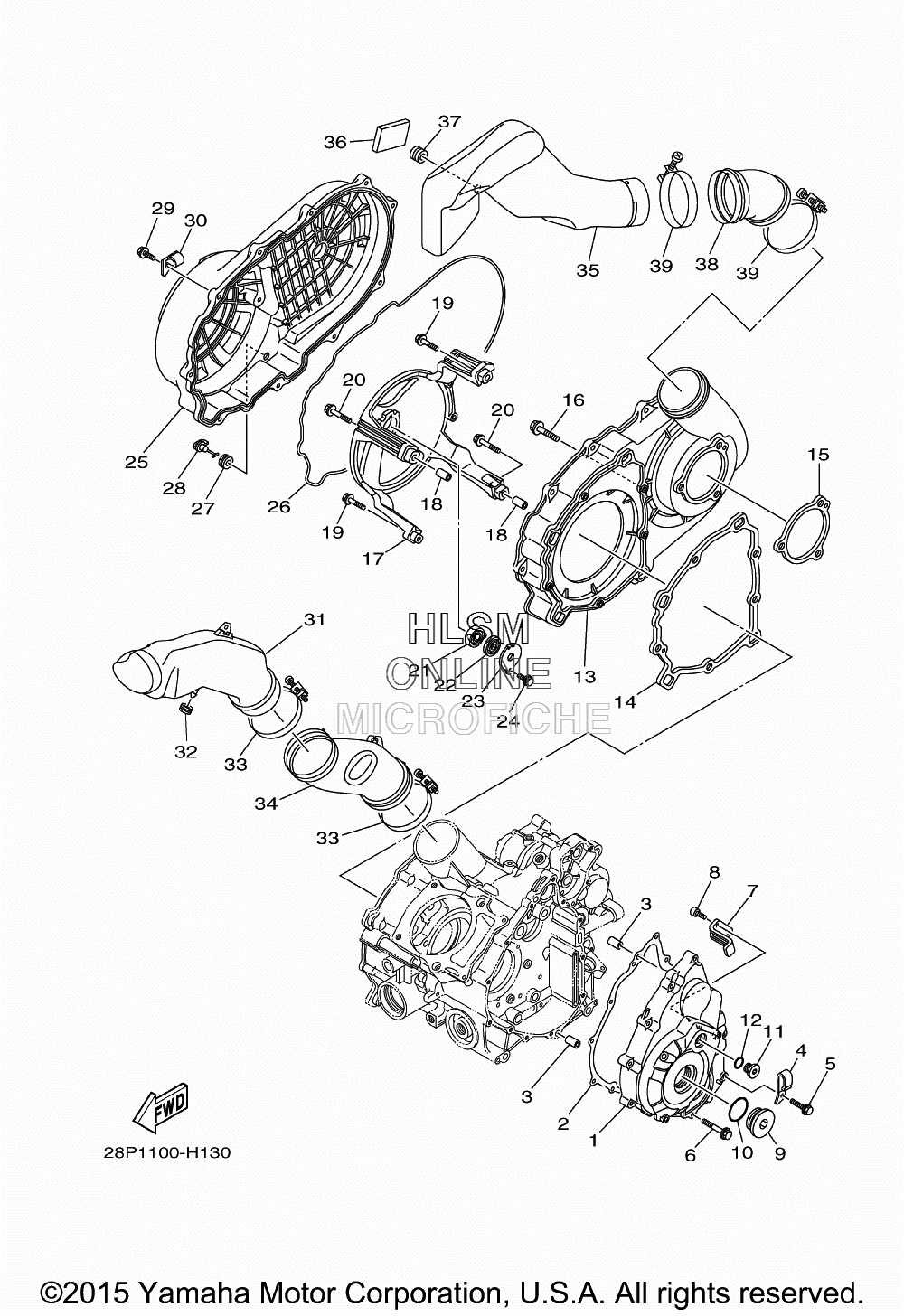

CRANKCASE COVER для Yamaha GRIZZLY 550 EPS 4WD HUNTER - 2011 года выпуска
-
№АртикулНазвание
-
13B4-15411-10-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
23B4-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
399530-10116-00 PIN, DOWELPIN, DOWEL
-
490461-08004-00 CLAMPCLAMP
-
595022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
695022-06050-00 BOLT, FLANGEBOLT, FLANGE
-
73B4-15113-00-00 PLATEPLATE
-
890110-05031-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
990340-36002-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1093210-357A3-00 O-RINGO-RING
-
1190340-14011-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1293210-14369-00 O-RINGO-RING
-
133B4-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
143B4-15453-00-00 GASKETGASKET
-
153B4-15315-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
1695822-06030-00 BOLT, FLANGEBOLT, FLANGE
-
173B4-15442-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1899530-10116-00 PIN, DOWELPIN, DOWEL
-
1995822-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2095822-06040-00 BOLT, FLANGEBOLT, FLANGE
-
2193306-20120-00 BEARINGBEARING
-
2293101-12168-00 OIL SEALOIL SEAL
-
234WV-15381-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
2495022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
253B4-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
263B4-15379-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
2790480-13018-00 GROMMETGROMMET
-
285KM-15351-00-00 PLUG, DRAINPLUG, DRAIN
-
2995822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
3090462-08055-00 CLAMPCLAMP
-
313B4-15471-00-00 DUCT, AIRDUCT, AIR
-
3290480-13567-00 GROMMETGROMMET
-
3390460-85135-00 CLAMP, HOSECLAMP, HOSE
-
343B4-15472-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
353B4-15473-00-00 DUCT, AIRDUCT, AIR
-
361S3-82123-00-00 SEAT, BATTERYSEAT, BATTERY
-
3790480-13398-00 GROMMETGROMMET
-
383B4-15474-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
3990460-85135-00 CLAMP, HOSECLAMP, HOSE
