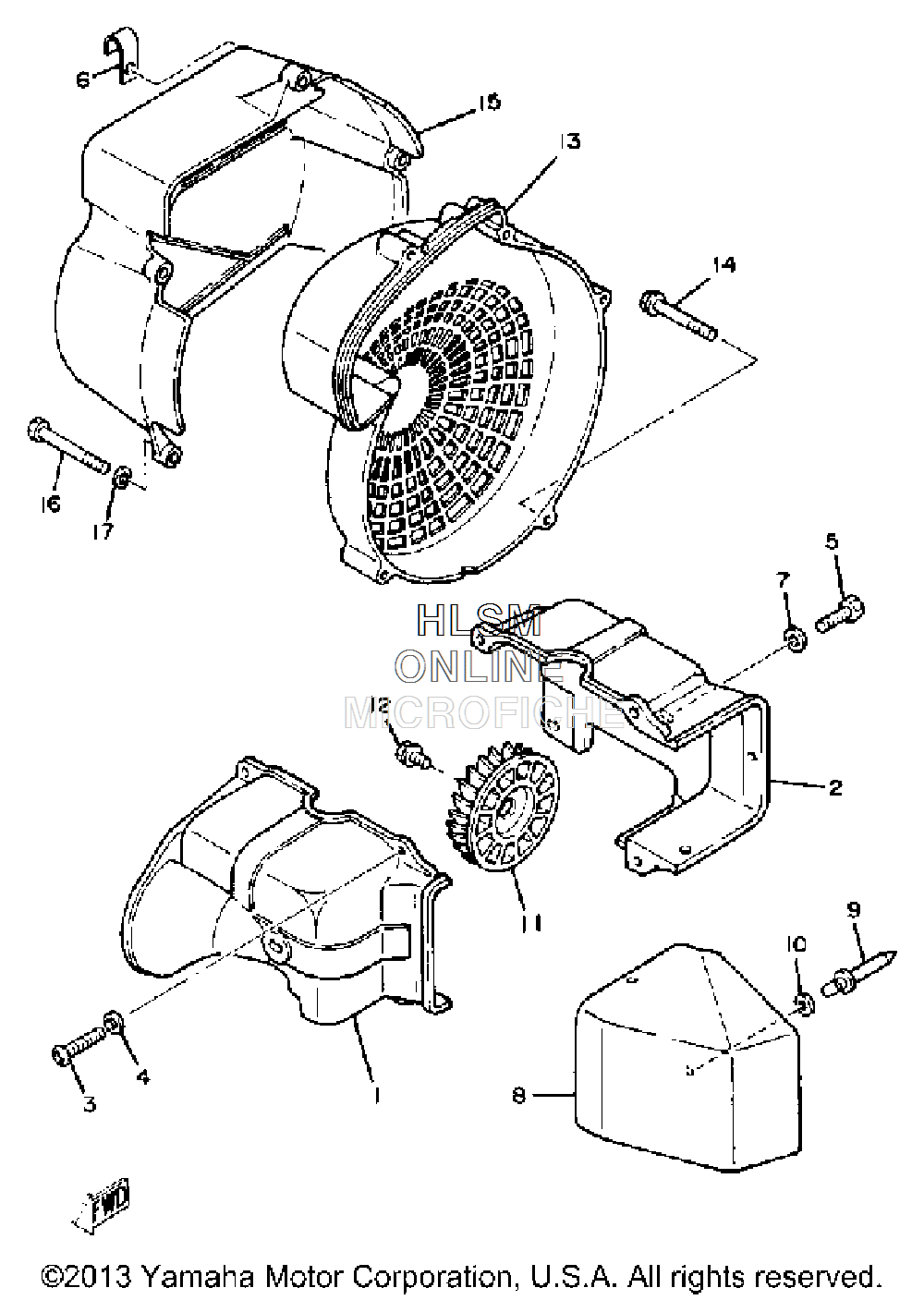

AIR SHROUD для Yamaha GOLF CAR GAS [G1AM3] (J24) - 1983 года выпуска
-
№АртикулНазвание
-
1J10-12651-00-00 AIR SHROUD, CYLINDER 1AIR SHROUD, CYLINDER 1
-
2J24-12652-00-00 AIR SHROUD, CYLINDER 2AIR SHROUD, CYLINDER 2
-
398503-06014-00 SCREW, PAN HEAD (92502-06016-00)SCREW, PAN HEAD (92502-06016-00)
-
492901-06600-00 WASHERWASHER
-
597313-06016-00 BOLT, HEXAGONBOLT, HEXAGON
-
690462-08056-00 CLAMPCLAMP
-
790201-065F3-00 WASHER, PLATEWASHER, PLATE
-
8J10-12631-00-00 DEFLECTOR 1DEFLECTOR 1
-
990267-48086-00 RIVET, BLIND (4.8X19 BLACK)RIVET, BLIND (4.8X19 BLACK)
-
1090201-04325-00 WASHER, PLATEWASHER, PLATE
-
118G8-12611-01-00 FANFAN
-
1295811-06012-00 BOLT, FLANGEBOLT, FLANGE
-
13J10-12621-01-00 CASE, FANCASE, FAN
-
1495811-06050-00 BOLT, FLANGEBOLT, FLANGE
-
15J24-12616-00-00 COVER, FAN CASECOVER, FAN CASE
-
1697313-06060-00 BOLT, HEXAGONBOLT, HEXAGON
-
1792901-06600-00 WASHERWASHER
