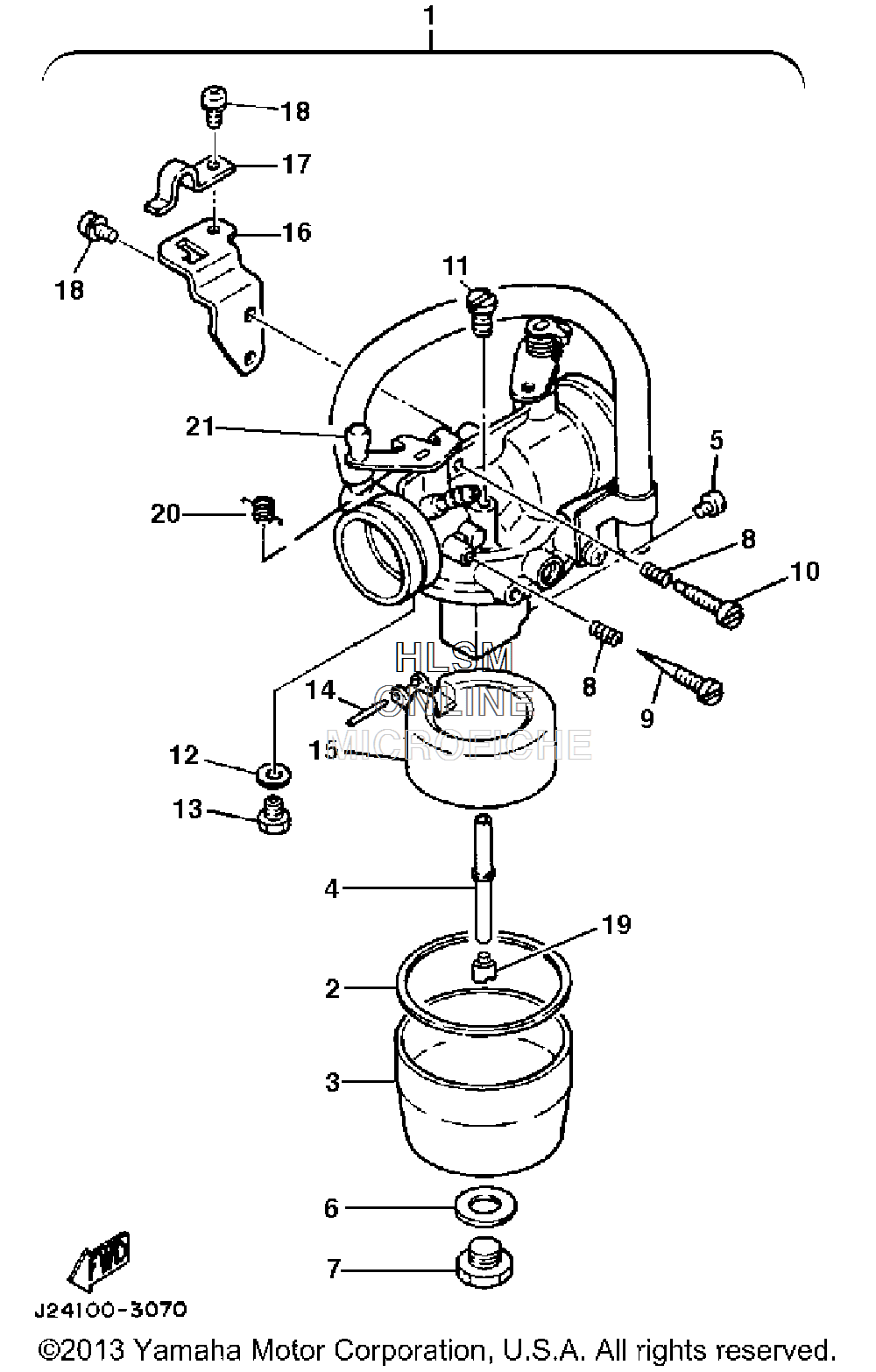

CARBURETOR для Yamaha GOLF CAR GAS [G1AM3] (J24) - 1983 года выпуска
-
№АртикулНазвание
-
1J24-14101-01-00 CARBURETOR 1 (J24-14101-00-00)CARBURETOR 1 (J24-14101-00-00)
-
2796-14184-00-00 ...GASKET, FLOAT CHAMBER...GASKET, FLOAT CHAMBER
-
3796-14181-00-00 ...BODY, FLOAT CHAMBER 1...BODY, FLOAT CHAMBER 1
-
4J17-14141-00-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
53G2-14231-19-00 ...JET, POWER (# 95)...JET, POWER (# 95)
-
6732-14237-00-00 ...GASKET...GASKET
-
7J10-14244-00-00 ...HOLDER, NOZZLE...HOLDER, NOZZLE
-
8620-14212-00-00 ...SPRING, PILOT ADJUSTING...SPRING, PILOT ADJUSTING
-
9620-14211-00-00 ...SCREW, PILOT ADJUSTING...SCREW, PILOT ADJUSTING
-
10J10-14122-00-00 ...SCREW, THROTTLE...SCREW, THROTTLE
-
11620-14142-08-00 JET, PILOT #40 (OPT)JET, PILOT #40 (OPT)
-
11620-14142-37-00 JET, PILOT #37 5 (OPT)JET, PILOT #37 5 (OPT)
-
11620-14142-32-00 ...JET, PILOT #32 (STD)...JET, PILOT #32 (STD)
-
11620-14142-42-00 JET, MAIN (#42.5) (OPT)JET, MAIN (#42.5) (OPT)
-
11620-14142-35-00 JET, PILOT #35 (OPT)JET, PILOT #35 (OPT)
-
12127-14195-00-00 ...WASHER, NEEDLE VALVE...WASHER, NEEDLE VALVE
-
13353-14190-10-00 ...NEEDLE VALVE ASSEMBLY...NEEDLE VALVE ASSEMBLY
-
14796-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
15796-14185-00-00 ...FLOAT...FLOAT
-
16J10-14581-00-00 ...BRACKET...BRACKET
-
17J10-14243-00-00 ...PLATE...PLATE
-
1898580-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
193G2-14231-18-00 JET, MAIN (#90) (OPT)JET, MAIN (#90) (OPT)
-
193G2-1423A-69-00 JET, MAIN 92 5 (OPT)JET, MAIN 92 5 (OPT)
-
193G2-1423A-70-00 JET, MAIN 97 5 (OPT)JET, MAIN 97 5 (OPT)
-
19256-14944-87-00 JET, MAIN #87 5 (OPT)JET, MAIN #87 5 (OPT)
-
19256-14944-17-00 ...JET, MAIN 85 (STD)...JET, MAIN 85 (STD)
-
20J10-14131-00-00 ...SPRING, THROTTLE...SPRING, THROTTLE
-
21J24-14202-09-00 ...THROTTLE SHAFT ASSY...THROTTLE SHAFT ASSY
