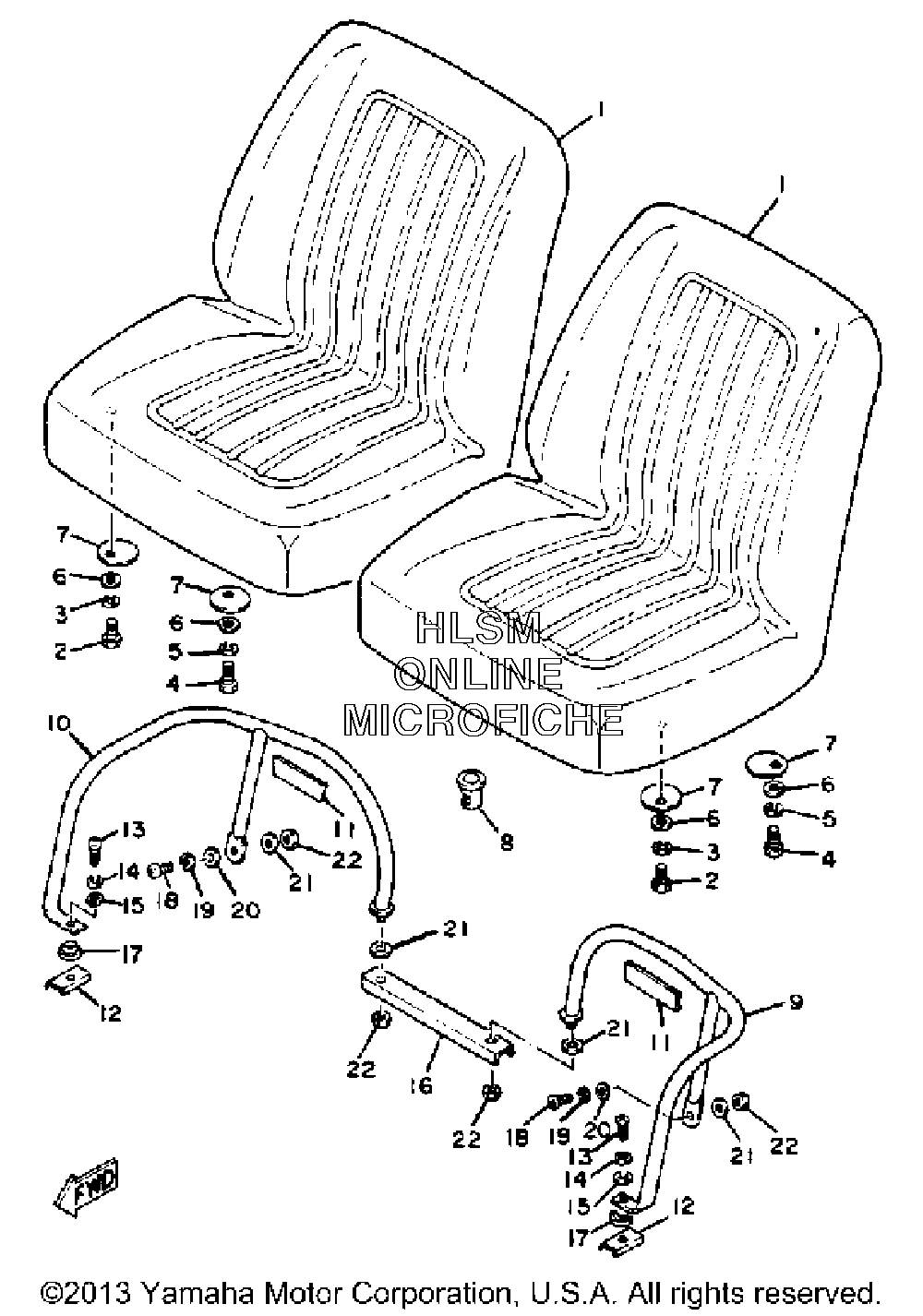

SEAT для Yamaha GOLF CAR GAS [G1AM3] (J24) - 1983 года выпуска
-
№АртикулНазвание
-
1J36-78401-90-00 SEAT SUB-ASSEMBLY, CUSHION (J24 (OPT)SEAT SUB-ASSEMBLY, CUSHION (J24 (OPT)
-
297001-08025-00 BOLT (1NV)BOLT (1NV)
-
392990-08100-00 WASHER, SPRINGWASHER, SPRING
-
497313-08030-00 BOLT, HEXAGONBOLT, HEXAGON
-
592990-08100-00 WASHER, SPRINGWASHER, SPRING
-
690201-08310-00 WASHER, PLATEWASHER, PLATE
-
7J10-78439-00-00 WASHER, SEATWASHER, SEAT
-
890480-35346-00 GROMMETGROMMET
-
9J24-78361-00-00 ARM REST 1ARM REST 1
-
10J24-78362-00-00 ARM REST 2ARM REST 2
-
11J24-78348-00-00 SPACER, ARM RESTSPACER, ARM REST
-
12J24-78347-00-00 SPACER, ARMRESTSPACER, ARMREST
-
1398502-08030-00 SCREW, PAN HEAD (92502-08030-00)SCREW, PAN HEAD (92502-08030-00)
-
1492990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1592901-08600-00 WASHERWASHER
-
16J24-78346-00-00 SUPPORT ARM RESTSUPPORT ARM REST
-
17J24-78345-00-00 WASHER, ARM RESTWASHER, ARM REST
-
1898501-08025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1992990-08100-00 WASHER, SPRINGWASHER, SPRING
-
2092901-08600-00 WASHERWASHER
-
2190201-08310-00 WASHER, PLATEWASHER, PLATE
-
2295611-08100-00 NUT, UNUT, U
