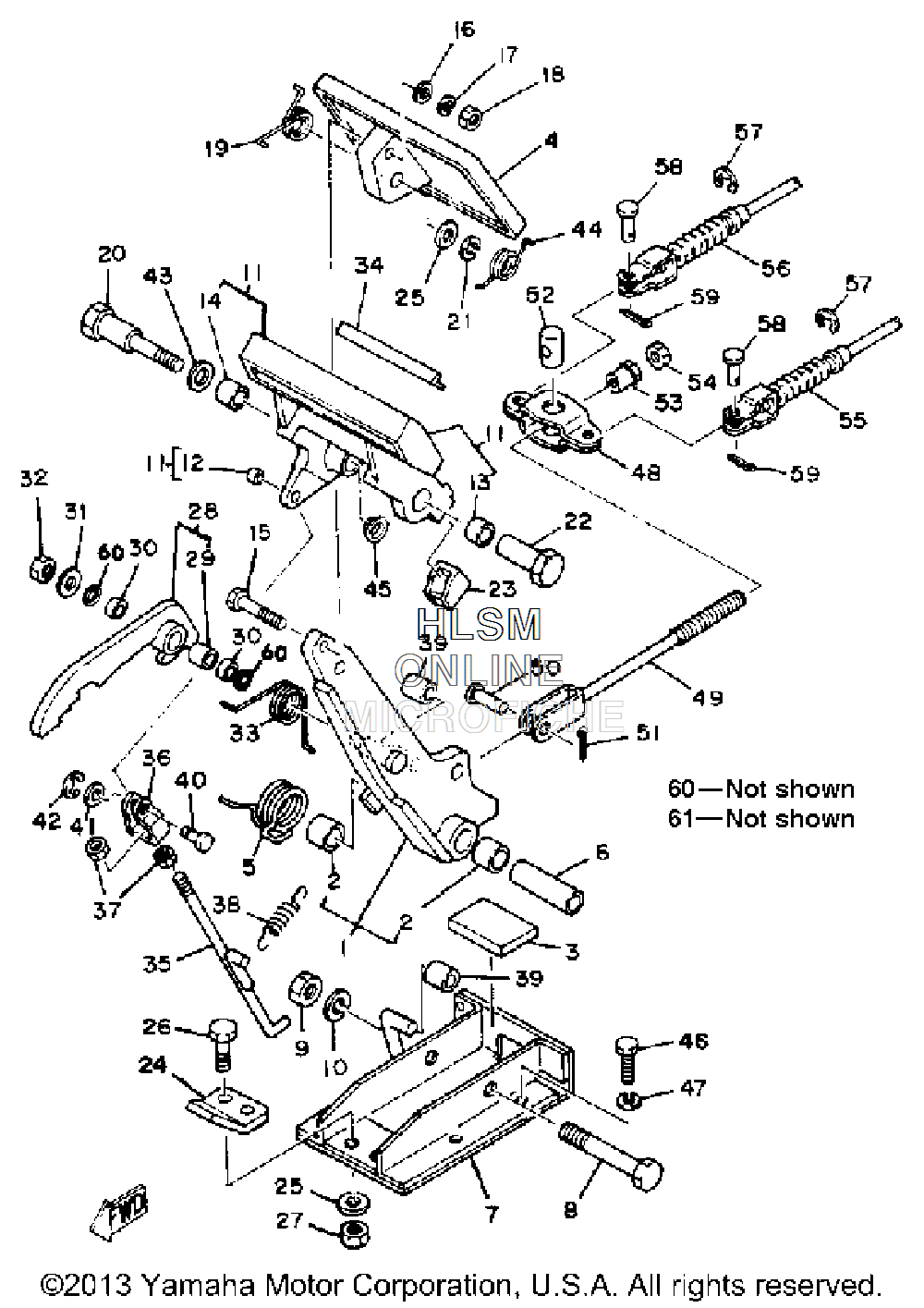

BRAKE для Yamaha GOLF CAR GAS [G1AM3] (J24) - 1983 года выпуска
-
№АртикулНазвание
-
1J17-27250-02-00 BRAKE ARM COMP. (ORDER REF NOS. 61 & 62 FOR BRAKE ARM KIT)BRAKE ARM COMP. (ORDER REF NOS. 61 & 62 FOR BRAKE ARM KIT)
-
290384-14080-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
3J17-27245-00-00 PAD, BRAKE PEDALPAD, BRAKE PEDAL
-
4J10-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
590508-40543-00 SPRING, TORSIONSPRING, TORSION
-
690387-107F8-00 COLLARCOLLAR
-
7J17-25654-00-00 BRACKET, PEDALBRACKET, PEDAL
-
890101-10447-00 BOLTBOLT
-
995601-10100-00 NUT, U (95602-10100-00)NUT, U (95602-10100-00)
-
1092990-10100-00 WASHER, SPRINGWASHER, SPRING
-
1199999-01799-00 PARKING PEDAL COMP. (J17-25670-00-00)PARKING PEDAL COMP. (J17-25670-00-00)
-
1290384-05163-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
1390384-12164-00 ...BUSH, BIMETAL...BUSH, BIMETAL
-
1490380-12051-00 ...BUSH, SOLID...BUSH, SOLID
-
1590101-06555-00 BOLTBOLT
-
1692990-06200-00 WASHER, PLAINWASHER, PLAIN
-
1792995-06100-00 WASHER, SPRINGWASHER, SPRING
-
1895380-06600-00 NUT, HEXAGONNUT, HEXAGON
-
1990508-23542-00 SPRING, TORSIONSPRING, TORSION
-
2090109-08669-00 BOLTBOLT
-
2192990-08100-00 WASHER, SPRINGWASHER, SPRING
-
2290179-08378-00 NUTNUT
-
23J17-25679-01-00 DAMPERDAMPER
-
24J17-27246-00-00 NAIL, BRAKENAIL, BRAKE
-
2592990-08200-00 WASHER, PLAINWASHER, PLAIN
-
2697001-08025-00 BOLT (1NV)BOLT (1NV)
-
2795611-08100-00 NUT, UNUT, U
-
28J17-W2561-00-00 SECTOR, PARKING BRAKESECTOR, PARKING BRAKE
-
2990384-10162-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
30J17-27221-00-00 SEAL, SHAFTSEAL, SHAFT
-
3190201-065F3-00 WASHER, PLATEWASHER, PLATE
-
3295601-06100-00 NUT, UNUT, U
-
3390508-14548-00 SPRING, TORSIONSPRING, TORSION
-
34J17-25672-01-00 PAD, PARKING PEDALPAD, PARKING PEDAL
-
35J17-27231-02-00 ROD, BRAKEROD, BRAKE
-
36J17-27232-00-00 END, ROD 2END, ROD 2
-
3795380-06700-00 NUTNUT
-
3890506-12277-00 SPRING, TENSIONSPRING, TENSION
-
39J17-25673-00-00 DAMPER, BRAKEDAMPER, BRAKE
-
40J17-27228-00-00 PIN, JOINTPIN, JOINT
-
4192901-05600-00 WASHER, PLATEWASHER, PLATE
-
4299080-04600-00 CIRCLIPCIRCLIP
-
4390201-123F2-00 WASHER, PLAINWASHER, PLAIN
-
4490508-26557-00 SPRING, TORSIONSPRING, TORSION
-
4590380-12105-00 BUSH, SOLIDBUSH, SOLID
-
4697011-06016-00 BOLTBOLT
-
4792995-06100-00 WASHER, SPRINGWASHER, SPRING
-
48J10-25681-00-00 EQUALIZER, BRAKEEQUALIZER, BRAKE
-
49J20-25685-00-00 RODROD
-
5091701-10022-00 PIN, CLEVISPIN, CLEVIS
-
5191490-30020-00 PIN. COTTERPIN. COTTER
-
5290249-14129-00 PINPIN
-
5390179-08261-00 NUTNUT
-
5495303-08700-00 NUTNUT
-
55J56-F6341-00-00 CABLE, BRAKECABLE, BRAKE
-
56J56-F6351-00-00 CABLE, BRAKECABLE, BRAKE
-
5799001-09600-00 CIRCLIPCIRCLIP
-
5891701-08018-00 PIN, CLEVISPIN, CLEVIS
-
5991490-25020-00 PIN. COTTERPIN. COTTER
-
6090201-104G8-00 WASHER, PLATEWASHER, PLATE
-
6199080-07600-00 CIRCLIP (NOT SHOWN)CIRCLIP (NOT SHOWN)
-
6292990-10600-00 WASHER, PLATE (NOT SHOWN)WASHER, PLATE (NOT SHOWN)
