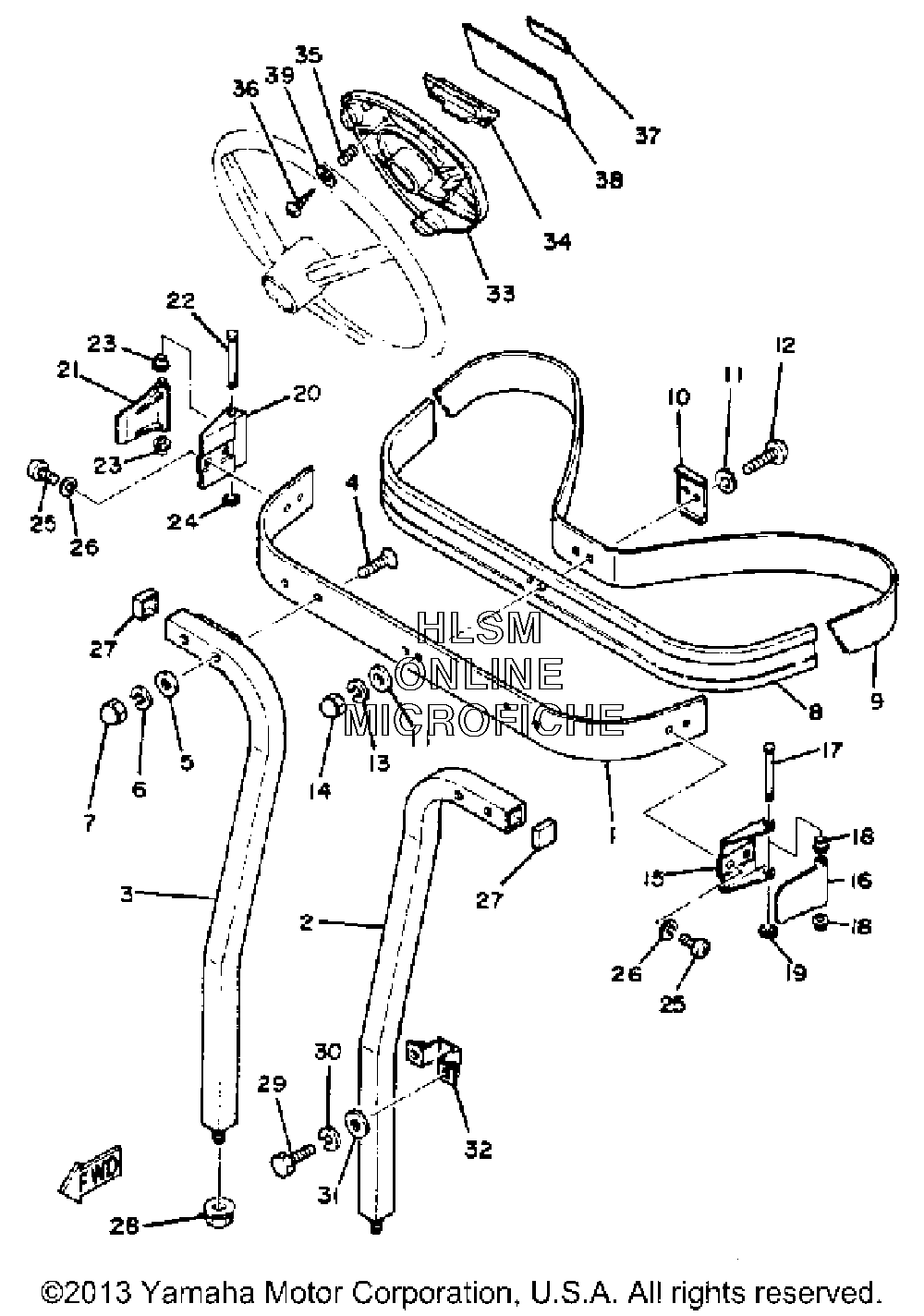

CARRIER для Yamaha GOLF CAR GAS [G1AM3] (J24) - 1983 года выпуска
-
№АртикулНазвание
-
1J42-78351-00-00 SUPPORT, BAG UPPER (J10-78351-00-9E) (IVORY WHITE)SUPPORT, BAG UPPER (J10-78351-00-9E) (IVORY WHITE)
-
2J10-78352-00-00 SUPPORT, BAG LOWER 1 (J10-78352-00-9E) (IVORY WHITE)SUPPORT, BAG LOWER 1 (J10-78352-00-9E) (IVORY WHITE)
-
3J10-78353-00-00 SUPPORT, BAG LOWER 2 (J10-78353-00-9E) (IVORY WHITE)SUPPORT, BAG LOWER 2 (J10-78353-00-9E) (IVORY WHITE)
-
498701-08045-00 SCREW, FLAT HEAD (92701-08045-00)SCREW, FLAT HEAD (92701-08045-00)
-
590202-08022-00 WASHER, PLATEWASHER, PLATE
-
692990-08100-00 WASHER, SPRINGWASHER, SPRING
-
795380-08800-00 NUT, CROWNNUT, CROWN
-
8J10-78356-00-00 PAD, BAG SUPPORTPAD, BAG SUPPORT
-
9J10-78355-00-00 BANDBAND
-
10J10-78367-00-00 PLATE, ANCHORPLATE, ANCHOR
-
1192990-06200-00 WASHER, PLAINWASHER, PLAIN
-
1298980-06016-00 SCREW, BINDSCREW, BIND
-
1392995-06100-00 WASHER, SPRINGWASHER, SPRING
-
1495380-06800-00 NUTNUT
-
15J17-78157-01-00 BASE, LOCKBASE, LOCK
-
16J17-78368-01-00 LEVER, LOCKLEVER, LOCK
-
17J17-78369-00-00 PIN, LEVERPIN, LEVER
-
1890386-06108-00 BUSHBUSH
-
1999080-05600-00 CIRCLIPCIRCLIP
-
20J17-78157-01-00 BASE, LOCKBASE, LOCK
-
21J17-78368-01-00 LEVER, LOCKLEVER, LOCK
-
22J17-78369-00-00 PIN, LEVERPIN, LEVER
-
2390386-06108-00 BUSHBUSH
-
2499080-05600-00 CIRCLIPCIRCLIP
-
2598580-06010-00 SCREW, PAN HEAD (92503-06010-00)SCREW, PAN HEAD (92503-06010-00)
-
2692995-06100-00 WASHER, SPRINGWASHER, SPRING
-
27J10-78139-00-00 CAP, ENDCAP, END
-
2895601-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2997313-06065-00 BOLT, HEXAGONBOLT, HEXAGON
-
3092995-06100-00 WASHER, SPRINGWASHER, SPRING
-
3192901-06600-00 WASHERWASHER
-
32J10-78366-01-00 CLAMP, SUPPORTCLAMP, SUPPORT
-
33J10-78357-01-00 HOLDER 1HOLDER 1
-
34J10-78358-00-00 HOLDER 2HOLDER 2
-
3590502-10013-00 SPRING, CONICALSPRING, CONICAL
-
3697780-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
37J10-78292-00-00 EMBLEM 2EMBLEM 2
-
38J10-77762-01-00 LABEL, WARNING 2LABEL, WARNING 2
-
3992901-05600-00 WASHER, PLATEWASHER, PLATE
