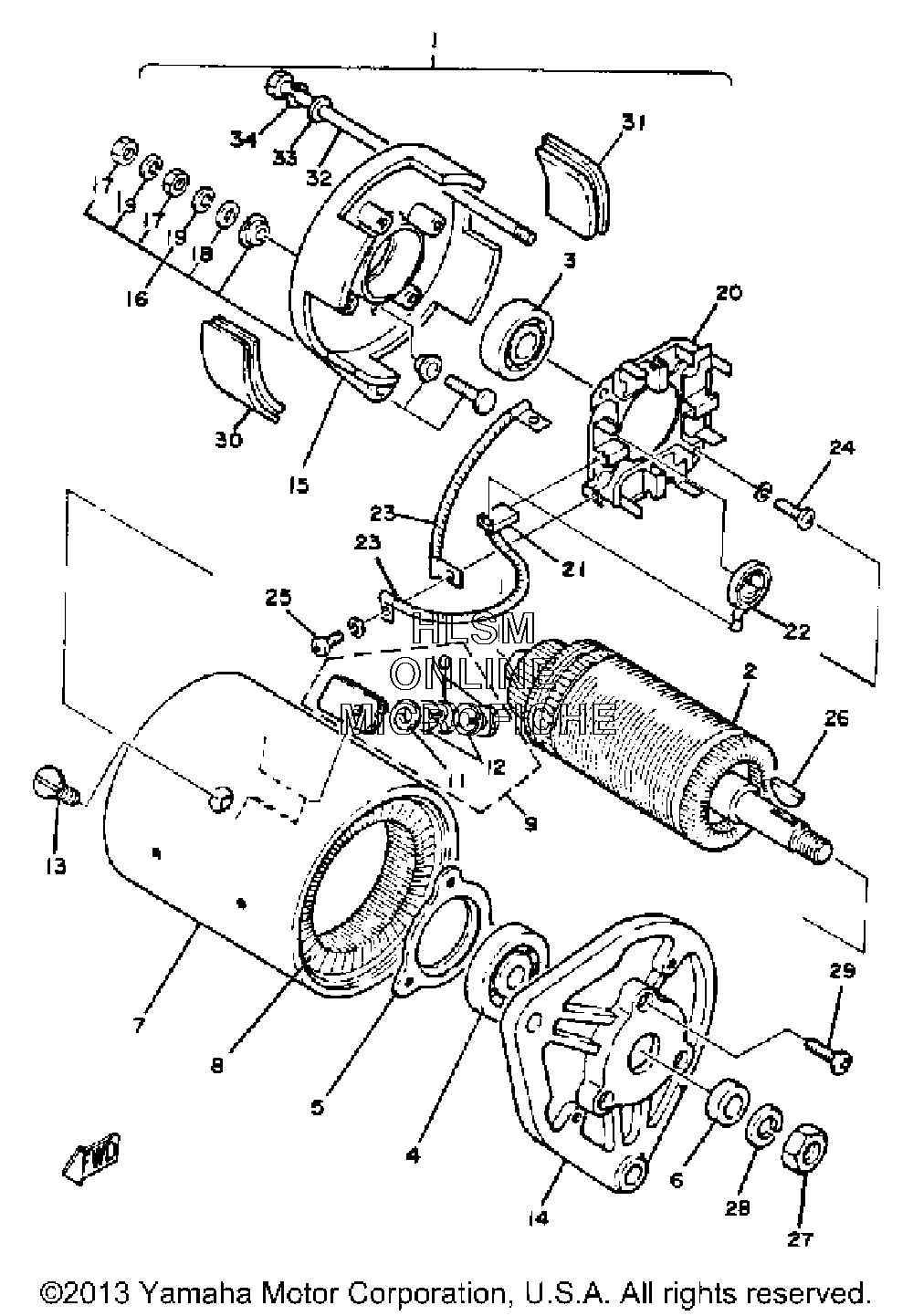

STARTER GENERATOR для Yamaha GOLF CAR GAS [G1AM3] (J24) - 1983 года выпуска
-
№АртикулНазвание
-
1J10-81100-10-00 STARTER GENERATOR ASSEMBLYSTARTER GENERATOR ASSEMBLY
-
2J10-81150-10-00 ...ARMATURE ASSEMBLY...ARMATURE ASSEMBLY
-
3J10-81157-10-00 ...BEARING 1 (6202 SD)...BEARING 1 (6202 SD)
-
4J10-81158-10-00 ...BEARING 2 (6203 SD)...BEARING 2 (6203 SD)
-
5J10-81159-10-00 ...HOLDER, BEARING...HOLDER, BEARING
-
6J10-81175-10-00 ...STOPPER 1...STOPPER 1
-
7J10-81110-10-00 ...STATOR ASSEMBLY...STATOR ASSEMBLY
-
8J10-81160-10-00 ...FIELD COIL ASSEMBLY...FIELD COIL ASSEMBLY
-
9J10-81148-10-00 ...SCREW SET 4...SCREW SET 4
-
1095380-06600-00 ......NUT, HEXAGON......NUT, HEXAGON
-
1192901-06600-00 ......WASHER......WASHER
-
1292995-06100-00 ......WASHER, SPRING......WASHER, SPRING
-
13J10-81146-10-00 ...SCREW 2...SCREW 2
-
14J10-81165-10-00 ...BRACKET, STARTER GENERATOR 1...BRACKET, STARTER GENERATOR 1
-
15J10-81166-10-00 ...BRACKET, STARTER GENERATOR 2...BRACKET, STARTER GENERATOR 2
-
16J10-81147-10-00 ...SCREW SET 3...SCREW SET 3
-
1795380-06600-00 ......NUT, HEXAGON......NUT, HEXAGON
-
1892901-06600-00 ......WASHER......WASHER
-
1992995-06100-00 ......WASHER, SPRING......WASHER, SPRING
-
20J10-81119-10-00 ...BRUSH HOLDER ASSEMBLY...BRUSH HOLDER ASSEMBLY
-
21J10-81111-10-00 ...BRUSH...BRUSH
-
22J10-81113-10-00 ...SPRING, BRUSH...SPRING, BRUSH
-
23J10-81115-10-00 ...WIRE, LEAD...WIRE, LEAD
-
2498580-05016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2598580-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
26J38-81163-10-00 ...KEY...KEY
-
2795312-14600-00 ...NUT...NUT
-
2892995-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
2998501-05018-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
30J10-81129-10-00 ...COVER, BRUSH...COVER, BRUSH
-
31J10-81129-10-00 ...COVER, BRUSH...COVER, BRUSH
-
32J10-81145-10-00 ...SCREW 1...SCREW 1
-
3392901-06600-00 ...WASHER...WASHER
-
3492995-06100-00 ...WASHER, SPRING...WASHER, SPRING
