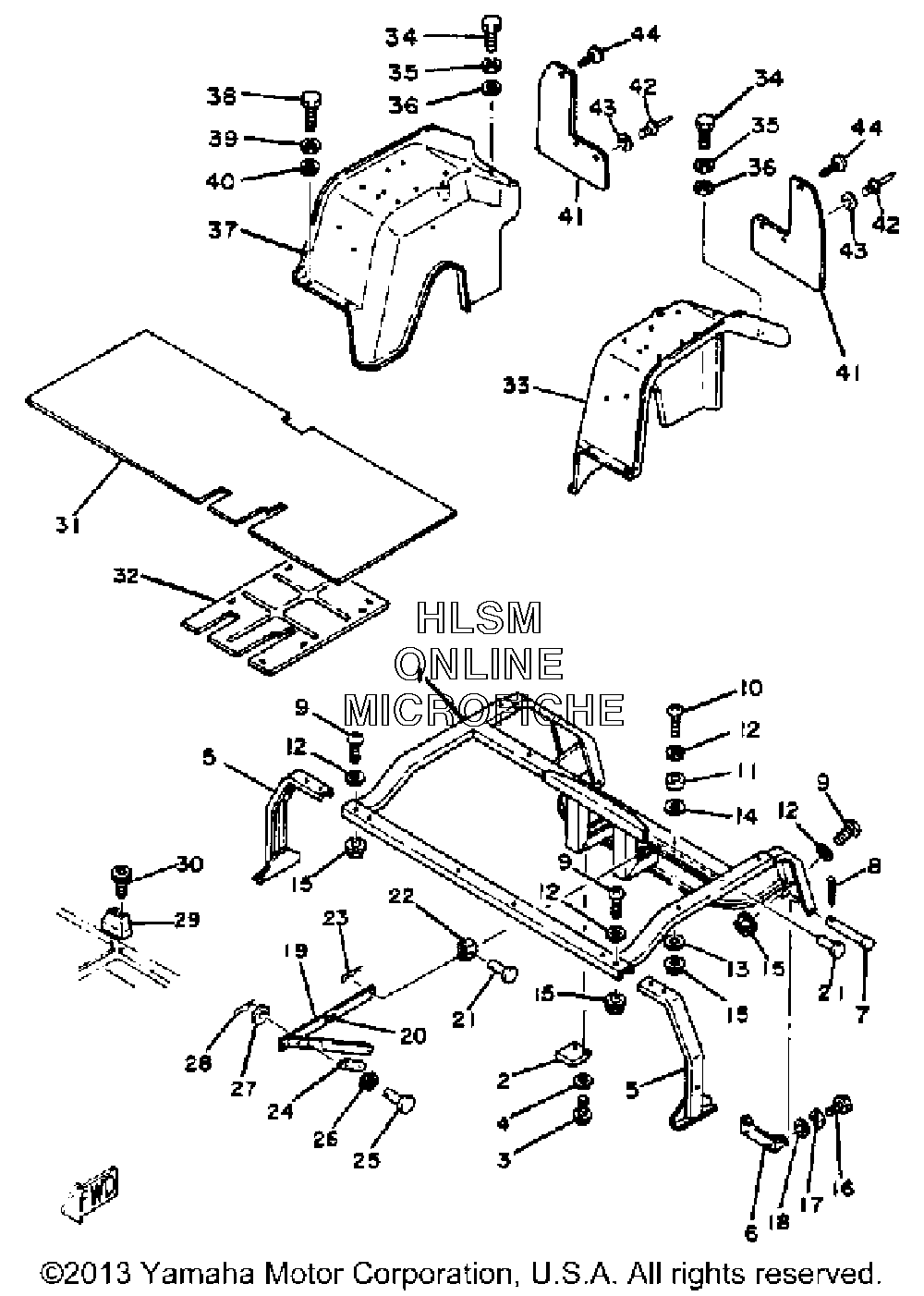

BODY FITTING для Yamaha GOLF CAR GAS [G1AM3] (J24) - 1983 года выпуска
-
№АртикулНазвание
-
1J31-77145-00-00 HINGE 1HINGE 1
-
2J17-78221-00-00 SHEET, BODY MOUNTING 1SHEET, BODY MOUNTING 1
-
398501-05018-00 SCREW, PAN HEADSCREW, PAN HEAD
-
492901-05600-00 WASHER, PLATEWASHER, PLATE
-
5J31-78123-00-00 REINFORCEMENT 3REINFORCEMENT 3
-
6J10-77146-00-00 HINGE 2HINGE 2
-
791701-08118-00 PIN, CLEVISPIN, CLEVIS
-
891401-25020-00 PIN, COTTERPIN, COTTER
-
998980-06020-00 SCREW, BINDSCREW, BIND
-
1098980-06025-00 SCREW, BINDSCREW, BIND
-
1190202-08085-00 WASHER, PLATEWASHER, PLATE
-
1290201-06697-00 WASHER, PLATEWASHER, PLATE
-
1390201-06697-00 WASHER, PLATEWASHER, PLATE
-
1490201-08730-00 WASHER, PLATEWASHER, PLATE
-
1595601-06200-00 NUT, U-FLANGENUT, U-FLANGE
-
1697313-08020-00 BOLT, HEXAGONBOLT, HEXAGON
-
1792990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1892901-08600-00 WASHERWASHER
-
19J10-77125-00-00 STAY 1STAY 1
-
20J10-77766-00-00 LABEL, WARNING 6LABEL, WARNING 6
-
2191701-08020-00 PIN, CLEVISPIN, CLEVIS
-
22J17-7712F-00-00 STAY 1STAY 1
-
2390468-16065-00 CLIPCLIP
-
24J10-77188-00-00 STOPPERSTOPPER
-
2591701-06012-00 PIN, CLEVISPIN, CLEVIS
-
2690206-06090-00 WASHER, WAVEWASHER, WAVE
-
2792990-06200-00 WASHER, PLAINWASHER, PLAIN
-
2890468-10050-00 CLIPCLIP
-
29J17-78156-00-00 STOPPER, LOCKSTOPPER, LOCK
-
3091311-06035-00 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
31J10-78231-09-00 MAT, MAIN FLOOR 1 (J10-78231-02-00)MAT, MAIN FLOOR 1 (J10-78231-02-00)
-
32J31-78271-00-00 SERVICE LID, PEDALSERVICE LID, PEDAL
-
33J24-78191-00-00 PANEL, RR FENDER 1PANEL, RR FENDER 1
-
3497023-06020-00 BOLT (3XF) (97302-06020-00)BOLT (3XF) (97302-06020-00)
-
3592995-06100-00 WASHER, SPRINGWASHER, SPRING
-
3690201-062A8-00 WASHER, PLATEWASHER, PLATE
-
37J24-78192-00-00 PANEL, RR FENDER 2PANEL, RR FENDER 2
-
3897023-06020-00 BOLT (3XF) (97302-06020-00)BOLT (3XF) (97302-06020-00)
-
3992995-06100-00 WASHER, SPRINGWASHER, SPRING
-
4090201-062A8-00 WASHER, PLATEWASHER, PLATE
-
41J24-78199-00-00 FLAP, REAR 2FLAP, REAR 2
-
4290267-40075-00 RIVET, BLINDRIVET, BLIND
-
4390201-05034-00 WASHER, PLATEWASHER, PLATE
-
4490269-06028-00 RIVETRIVET
