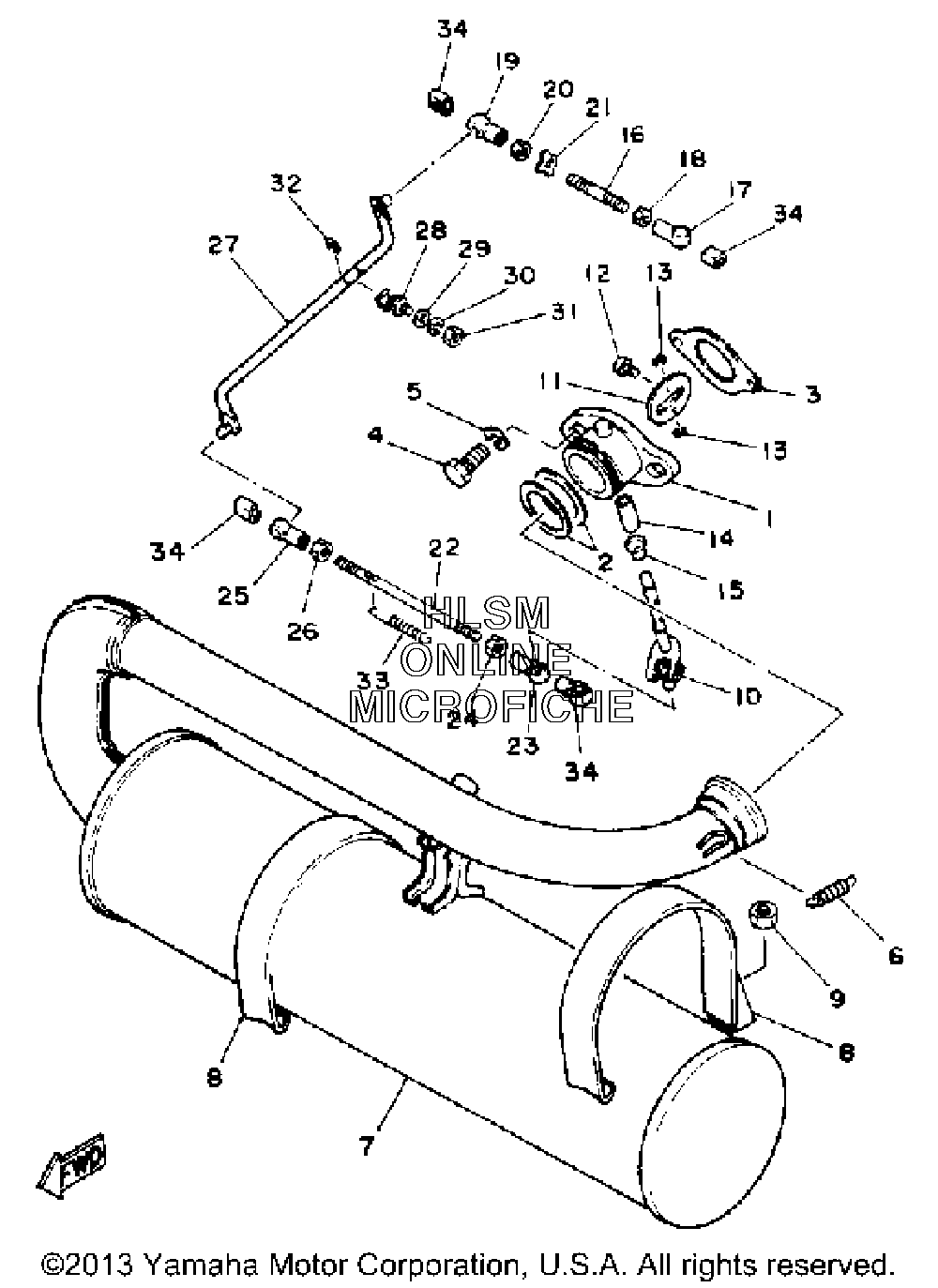

EXHAUST для Yamaha GOLF CAR GAS [G1AM3] (J24) - 1983 года выпуска
-
№АртикулНазвание
-
1J24-14612-00-00 NUT, RINGNUT, RING
-
2888-14633-00-00 RINGRING
-
3J10-14613-00-00 GASKET, EXAUST PIPEGASKET, EXAUST PIPE
-
497013-08025-00 BOLTBOLT
-
592990-08100-00 WASHER, SPRINGWASHER, SPRING
-
690506-20074-00 SPRING, TENSIONSPRING, TENSION
-
7J24-14610-00-00 EXHAUST PIPE ASSEMBLY LEXHAUST PIPE ASSEMBLY L
-
8J10-14715-01-00 BAND, MUFFLERBAND, MUFFLER
-
995611-08100-00 NUT, UNUT, U
-
10J10-14813-01-00 SHAFT, BUTTERFLYSHAFT, BUTTERFLY
-
11J10-14812-02-00 VALVE, BUTTERFLYVALVE, BUTTERFLY
-
1298580-03008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1399080-05600-00 CIRCLIPCIRCLIP
-
14J10-14815-00-00 GASKETGASKET
-
15J10-14818-00-00 COVER, GASKETCOVER, GASKET
-
16J10-14836-00-00 RODROD
-
17J10-14833-01-00 JOINTJOINT
-
1895311-05700-00 NUTNUT
-
19J10-14864-01-00 JOINTJOINT
-
2090170-05190-00 NUT, HEXAGONNUT, HEXAGON
-
21J24-14842-00-00 PLATE, CON RODPLATE, CON ROD
-
22J10-14837-00-00 CONNECTOR, RODCONNECTOR, ROD
-
23J10-14833-01-00 JOINTJOINT
-
2495311-05700-00 NUTNUT
-
25J10-14864-01-00 JOINTJOINT
-
2690170-05190-00 NUT, HEXAGONNUT, HEXAGON
-
27J10-14802-00-00 CONNECTER COMPCONNECTER COMP
-
2890464-07034-00 CLAMPCLAMP
-
2992901-05600-00 WASHER, PLATEWASHER, PLATE
-
3092990-05100-00 WASHER, SPRINGWASHER, SPRING
-
3195380-05600-00 NUTNUT
-
3299009-06600-00 CIRCLIPCIRCLIP
-
3390506-06201-00 SPRING, TENSIONSPRING, TENSION
-
34J24-14846-00-00 BOOT, ACTUATORBOOT, ACTUATOR
