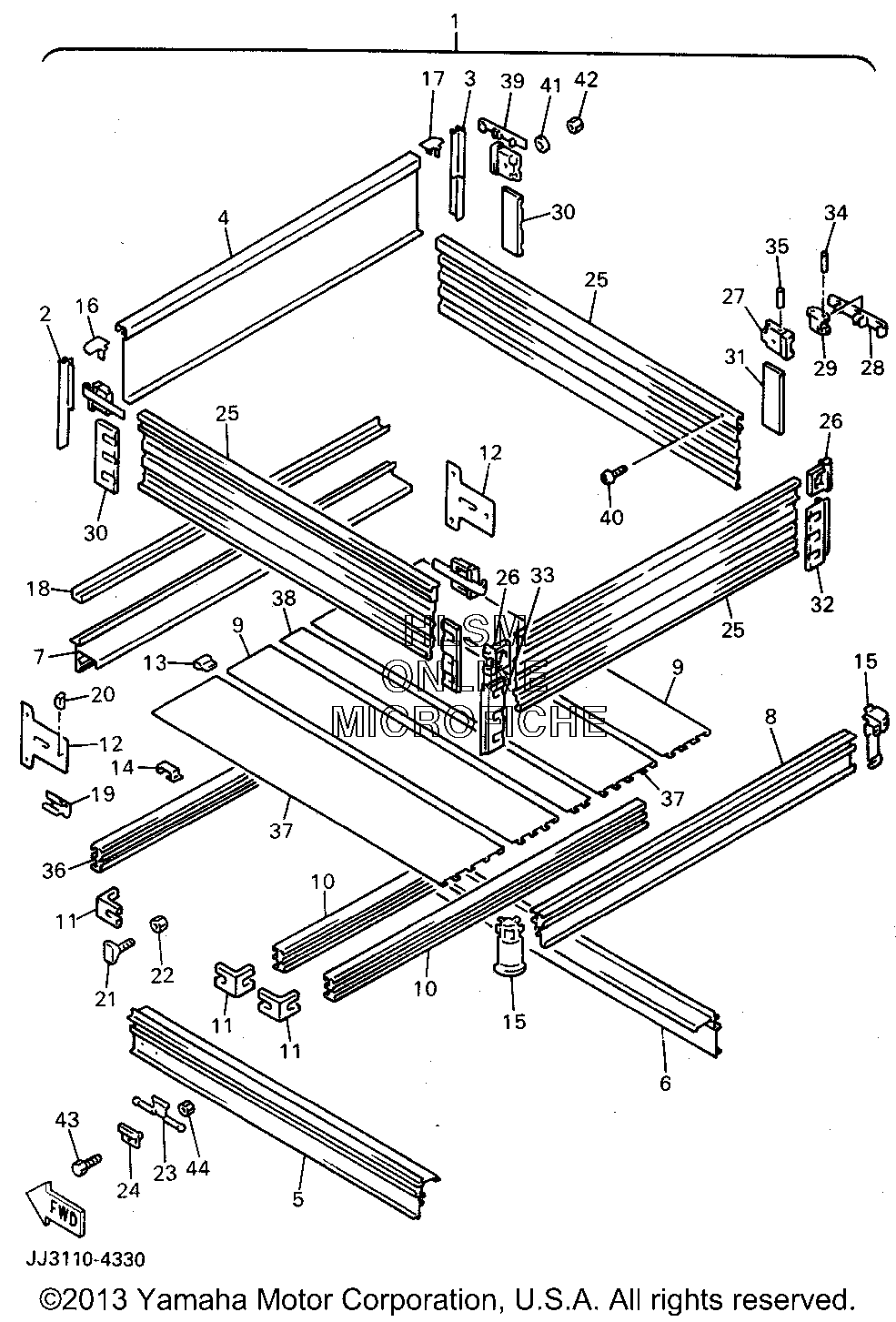

BOX ASSEMBLY для Yamaha GOLF CAR GAS [G11AK] (JJ3) - 1994 года выпуска
-
№АртикулНазвание
-
1JJ3-F4850-00-00 BOX, ASSEMBLYBOX, ASSEMBLY
-
2JJ3-F4821-00-00 STAY CARRIER FR LHSTAY CARRIER FR LH
-
3JJ3-F4822-00-00 STAR CARRIER FR RHSTAR CARRIER FR RH
-
4JJ3-F481J-00-00 MBR, CROSSMBR, CROSS
-
5JJ3-F4845-00-00 COVER, 1COVER, 1
-
6JJ3-F4846-00-00 COVER, 2COVER, 2
-
7JJ3-F481M-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
8JJ3-F4836-00-00 STAY, CARRIERSTAY, CARRIER
-
9JJ3-F482F-10-00 PLATE, 1PLATE, 1
-
10JJ3-F482A-00-00 REINF, 1REINF, 1
-
11JJ3-F4816-00-00 BRACKET, CARRIERBRACKET, CARRIER
-
12JJ3-F482G-00-00 PLATE, 2PLATE, 2
-
13JJ3-F4825-00-00 SPACERSPACER
-
14JJ3-F481H-00-00 CLAMPCLAMP
-
15JJ3-F484K-00-00 ATTACHMENTATTACHMENT
-
16JJ3-F482H-00-00 CAPCAP
-
17JJ3-F2315-00-00 CAPCAP
-
18JJ3-F4854-00-00 DAMPERDAMPER
-
19JJ3-F4859-00-00 HINGEHINGE
-
20JJ3-F481W-10-00 BOSSBOSS
-
21JJ3-F4834-00-00 BOLTBOLT
-
22JJ3-F4735-00-00 NUTNUT
-
23JJ3-F4867-00-00 HOOK (OPT)HOOK (OPT)
-
24JJ3-F4857-00-00 BOSS, CARRIER ASSEMBLY (OPT)BOSS, CARRIER ASSEMBLY (OPT)
-
25JJ3-F482J-00-00 FRAME, CARRIER 1FRAME, CARRIER 1
-
26JJ3-F4862-00-00 CLAMP, CARRIERCLAMP, CARRIER
-
27JJ3-F4847-00-00 HOLDER 1HOLDER 1
-
28JJ3-F4829-00-00 LEVERLEVER
-
29JJ3-F4848-00-00 HOLDER 2HOLDER 2
-
30JJ3-F4855-00-00 BRACKET 1BRACKET 1
-
31JJ3-F4856-00-00 BRACKET 2BRACKET 2
-
32JJ3-F484F-00-00 GRID 1GRID 1
-
33JJ3-F484G-00-00 GRID 2GRID 2
-
34JJ3-F5165-00-00 PIN, ROD END 1PIN, ROD END 1
-
35JJ3-F5166-00-00 PIN, ROD END 2PIN, ROD END 2
-
36JJ3-F482E-00-00 RENFORCEMENT 2RENFORCEMENT 2
-
37JJ3-F485F-00-00 GRID 3GRID 3
-
38JJ3-F482R-00-00 PLATE 3PLATE 3
-
39JJ3-F4853-00-00 LEVER, REAR BOX (STAMPED FR)LEVER, REAR BOX (STAMPED FR)
-
40JJ3-F2242-00-00 BOLT 2BOLT 2
-
41JJ3-F2243-00-00 WASHER 1WASHER 1
-
42JJ3-F2251-00-00 NUT 1NUT 1
-
43JJ3-F2241-00-00 BOLT 1 (OPT)BOLT 1 (OPT)
-
44JJ3-F2252-00-00 NUT 2 (OPT)NUT 2 (OPT)
