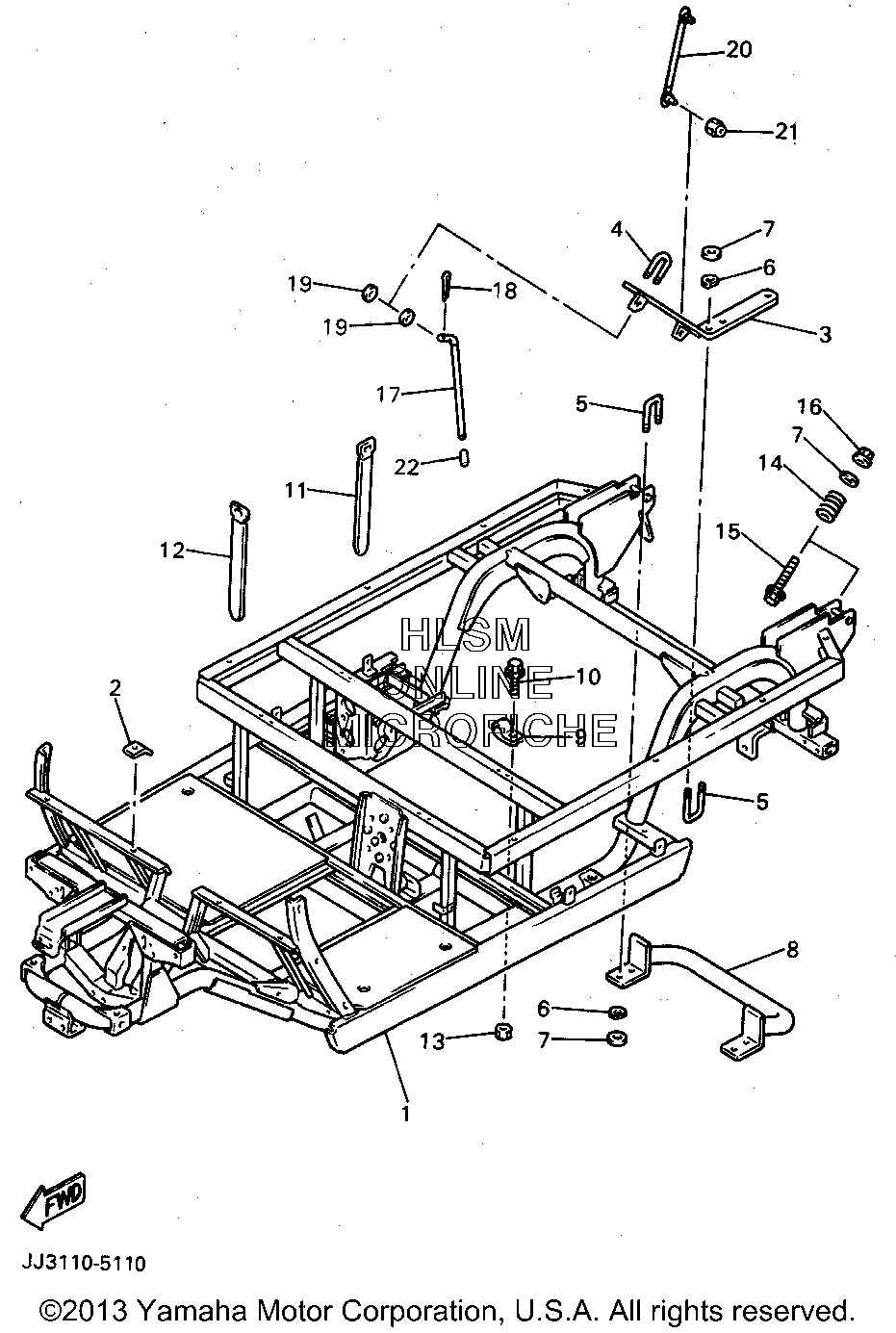

FRAME для Yamaha GOLF CAR GAS [G11AK] (JJ3) - 1994 года выпуска
-
№АртикулНазвание
-
1JJ3-F2501-20-00 FRAME COMP.FRAME COMP.
-
2JF2-7814A-00-00 SEAL, BODY UPPERSEAL, BODY UPPER
-
3JJ3-F2229-00-00 BRACKET, UNDERBRACKET, UNDER
-
490109-10840-00 BOLTBOLT
-
590109-10841-00 BOLTBOLT
-
692901-10100-00 WASHER, SPRINGWASHER, SPRING
-
792990-10200-00 WASHERWASHER
-
8JJ3-F722B-00-00 BAR, TOWBAR, TOW
-
990461-12117-00 CLAMPCLAMP
-
1095811-06012-00 BOLT, FLANGEBOLT, FLANGE
-
11341-26397-01-00 BANDBAND
-
12JF2-82591-00-00 BANDBAND
-
1395701-06300-00 NUT, NYLONNUT, NYLON
-
14JJ3-K8316-00-00 DAMPERDAMPER
-
1590105-10357-00 BOLT, FLANGEBOLT, FLANGE
-
1690185-10115-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
17JJ3-K8158-00-00 ROD, INSPECTION LIDROD, INSPECTION LID
-
1891401-25020-00 PIN, COTTERPIN, COTTER
-
1992990-10200-00 WASHERWASHER
-
20JJ3-K7588-00-00 DAMPER 1DAMPER 1
-
2195601-08200-00 NUT, UNUT, U
-
22JJ3-K818M-00-00 CAP, PROTECTOR END 4CAP, PROTECTOR END 4
