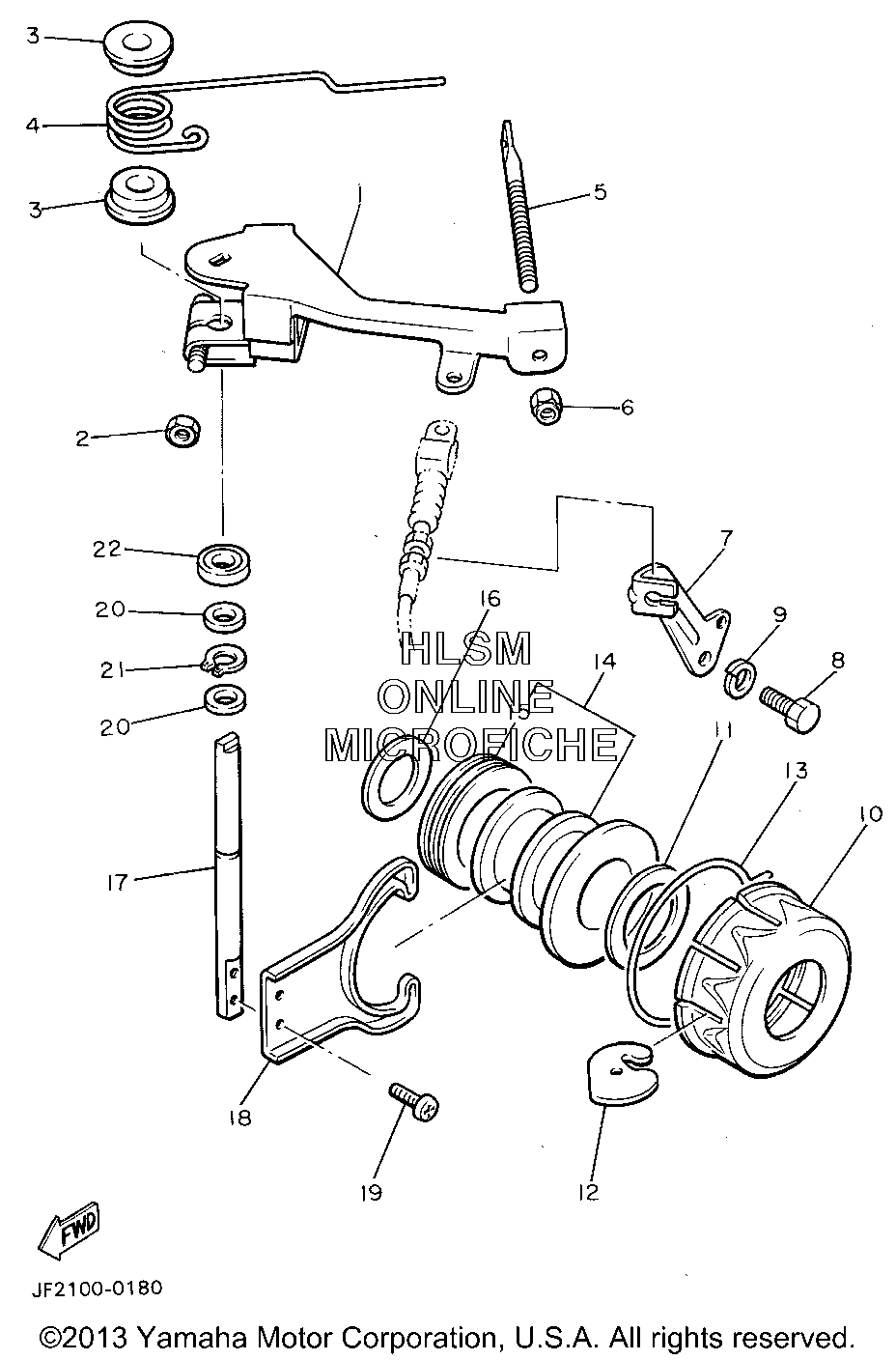

GOVERNOR для Yamaha GOLF CAR GAS [G11AK] (JJ3) - 1994 года выпуска
-
№АртикулНазвание
-
1J38-27951-00-00 LEVER, SPEED LIMITERLEVER, SPEED LIMITER
-
295380-06600-00 NUT, HEXAGONNUT, HEXAGON
-
390386-08141-00 BUSHBUSH
-
490508-40678-00 SPRING, TORSIONSPRING, TORSION
-
5J38-27959-00-00 SCREW, ADJUSTINGSCREW, ADJUSTING
-
695701-06300-00 NUT, NYLONNUT, NYLON
-
7J38-27982-00-00 BRACKET, WIREBRACKET, WIRE
-
897011-08016-00 BOLTBOLT
-
992902-08100-00 WASHER, SPRINGWASHER, SPRING
-
10J10-27912-00-00 RETAINERRETAINER
-
1190387-21690-00 COLLARCOLLAR
-
12J10-27913-00-00 WEIGHTWEIGHT
-
13J10-27911-00-00 HOLDERHOLDER
-
14J10-27927-00-00 LIFTERLIFTER
-
1593342-22502-00 ...BEARING, THRUST...BEARING, THRUST
-
1690201-20275-00 WASHER, PLATEWASHER, PLATE
-
17J38-27921-00-00 SHAFT, GOVERNORSHAFT, GOVERNOR
-
18J10-27922-00-00 FORK, GOVERNORFORK, GOVERNOR
-
1991316-04008-00 BOLTBOLT
-
2090202-08110-00 WASHER, PLATEWASHER, PLATE
-
2199009-06600-00 CIRCLIPCIRCLIP
-
2293109-08050-00 OIL SEALOIL SEAL
