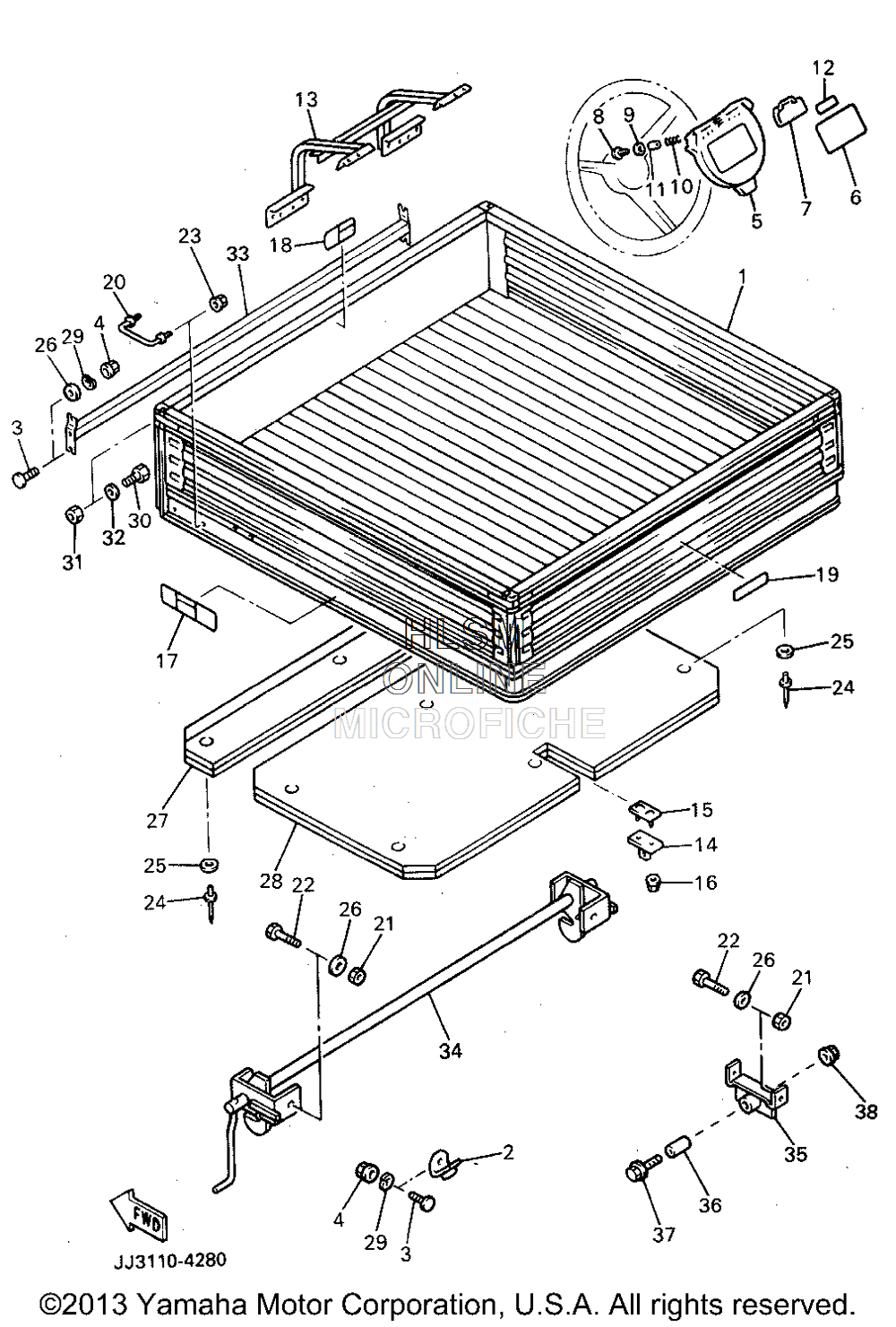

CARRIER 1 для Yamaha GOLF CAR GAS [G11AK] (JJ3) - 1994 года выпуска
-
№АртикулНазвание
-
1JJ3-F4850-00-00 BOX, ASSEMBLYBOX, ASSEMBLY
-
2JJ3-K8324-00-00 BRACKET 2BRACKET 2
-
390109-10842-00 BOLTBOLT
-
490170-10842-00 NUTNUT
-
5J55-K8357-00-00 HOLDER 1HOLDER 1
-
6JN3-K7762-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
7J55-K8358-00-00 HOLDER 2HOLDER 2
-
897706-40525-00 SCREW, TAPPINGSCREW, TAPPING
-
990201-044H9-00 WASHER, PLATEWASHER, PLATE
-
1090502-10013-00 SPRING, CONICALSPRING, CONICAL
-
1190387-046N7-00 COLLARCOLLAR
-
12J51-77763-00-00 LABEL, WARNING 3LABEL, WARNING 3
-
13JF2-K831F-01-00 SUPPORT, ROOF 5SUPPORT, ROOF 5
-
14JJ3-K834E-00-00 HOLDER COMP. 1HOLDER COMP. 1
-
15JJ3-K834F-00-00 HOLDER COMP. 2HOLDER COMP. 2
-
1695601-06200-00 NUT, U-FLANGENUT, U-FLANGE
-
17JJ3-K7764-00-00 LABEL, WARNING 4LABEL, WARNING 4
-
18JJ3-K7766-00-00 LABEL, WARNING 6LABEL, WARNING 6
-
19JJ3-K7768-00-00 LABEL, WARNINGLABEL, WARNING
-
20JJ3-K7576-00-00 BRACKET, ASSIST GRIPBRACKET, ASSIST GRIP
-
2195601-10100-00 NUT, UNUT, U
-
2297012-10050-00 BOLTBOLT
-
2395601-08200-00 NUT, UNUT, U
-
2490267-48835-00 RIVET, BLINDRIVET, BLIND
-
2590201-063J2-00 WASHER, PLATEWASHER, PLATE
-
2692990-10200-00 WASHERWASHER
-
27JJ3-K8211-10-00 PLATE, BODY MOUNTING 1PLATE, BODY MOUNTING 1
-
28JJ3-K8212-01-00 PLATE, BODY MOUNTING 2PLATE, BODY MOUNTING 2
-
2992901-10100-00 WASHER, SPRINGWASHER, SPRING
-
3090101-10858-00 BOLTBOLT
-
3190173-10801-00 NUT, SQUARENUT, SQUARE
-
3290205-10800-00 WASHER, TOOTHED LOCKWASHER, TOOTHED LOCK
-
33JJ3-K8438-00-00 BOX, SEAT SIDEBOX, SEAT SIDE
-
34JJ3-K8380-01-00 LOCK ASSEMBLYLOCK ASSEMBLY
-
35JJ3-K7720-00-00 HINGE ASSEMBLYHINGE ASSEMBLY
-
36JJ3-K827A-00-00 GUIDE 1GUIDE 1
-
3790105-12598-00 BOLT, FLANGEBOLT, FLANGE
-
3895601-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
