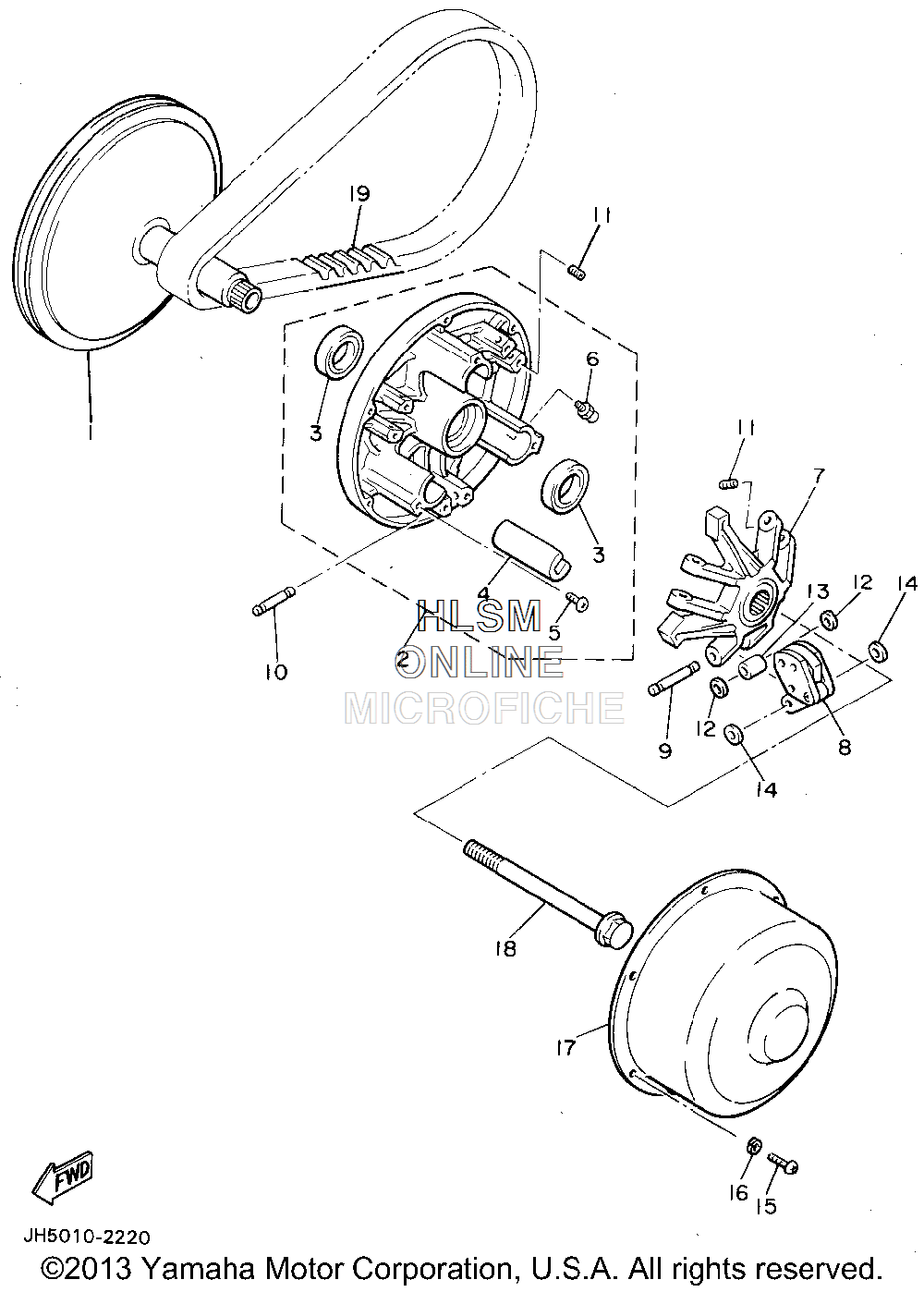

PRIMARY SHEAVE для Yamaha GOLF CAR GAS [G11AK] (JJ3) - 1994 года выпуска
-
№АртикулНазвание
-
1J38-46210-01-00 PRIMARY FIXED SHEAVE COMP.PRIMARY FIXED SHEAVE COMP.
-
2J38-46220-00-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
393102-28348-00 ...OIL SEAL...OIL SEAL
-
4J38-46253-00-00 ...SLIDER...SLIDER
-
598901-05008-00 ...SCREW, BLIND...SCREW, BLIND
-
693700-06M03-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
7J38-46251-00-00 SPIDERSPIDER
-
8J38-46205-01-00 WEIGHT LINK ASSEMBLYWEIGHT LINK ASSEMBLY
-
9J38-46236-00-00 PIN, WEIGHTPIN, WEIGHT
-
10J38-46237-00-00 PIN, WEIGHT 2PIN, WEIGHT 2
-
1190113-04050-00 BOLT, SETBOLT, SET
-
1290202-07164-00 WASHER, PLATEWASHER, PLATE
-
1390387-076U6-00 COLLARCOLLAR
-
1490202-07186-00 WASHER, PLATEWASHER, PLATE
-
1598580-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1692990-05100-00 WASHER, SPRINGWASHER, SPRING
-
17J38-46231-00-00 CAPCAP
-
18J38-46249-00-00 BOLTBOLT
-
19J55-G6241-00-00 V-BELTV-BELT
