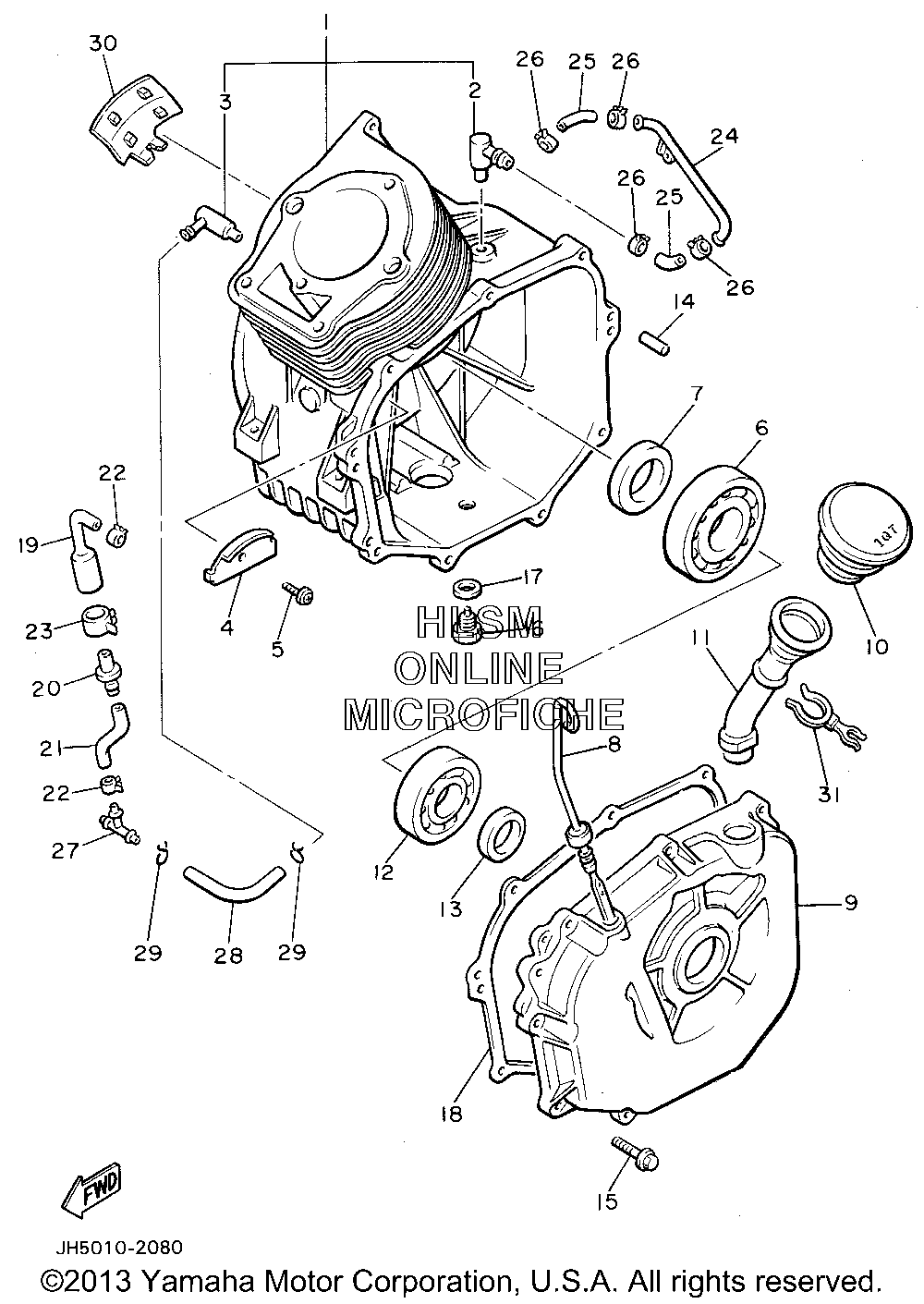

CRANKCASE для Yamaha GOLF CAR GAS [G11AK] (JJ3) - 1994 года выпуска
-
№АртикулНазвание
-
1J38-15100-02-00 CRANKCASE ASSEMBLYCRANKCASE ASSEMBLY
-
2J38-15148-00-00 ...NOZZLE 2...NOZZLE 2
-
3J38-15155-00-00 ...NOZZLE 3...NOZZLE 3
-
4J38-15123-00-00 PLATE, BUFFLE 1PLATE, BUFFLE 1
-
590159-05117-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
693306-30709-00 BEARINGBEARING
-
793102-35191-00 OIL SEALOIL SEAL
-
8J38-15361-00-00 GAUGE, LEVELGAUGE, LEVEL
-
9J38-15411-01-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
10J38-15363-00-00 PLUG, OILPLUG, OIL
-
11J38-15112-00-00 PIPE, OILPIPE, OIL
-
1293306-30630-00 BEARINGBEARING
-
1393102-30195-00 OIL SEALOIL SEAL
-
1493608-12063-00 PIN, DOWELPIN, DOWEL
-
1595811-08035-00 BOLT, FLANGE (95821-08035-00)BOLT, FLANGE (95821-08035-00)
-
1697001-12020-00 BOLTBOLT
-
17812-11198-00-00 GASKETGASKET
-
18J38-15451-02-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
19J38-14388-00-00 VALVE, VACUUM CONTROLVALVE, VACUUM CONTROL
-
20J38-13115-00-00 CONNECTOR, SUCTION PIPECONNECTOR, SUCTION PIPE
-
2190445-113E4-00 HOSEHOSE
-
2290467-10008-00 CLIPCLIP
-
2390468-08104-00 CLIPCLIP
-
24J38-13161-00-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
2590445-110E6-00 HOSEHOSE
-
2690467-10008-00 CLIPCLIP
-
27807-24376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
2890445-09073-00 HOSEHOSE
-
2990467-08017-00 CLIPCLIP
-
30J38-11355-00-00 SEAL, CYLINDER 1SEAL, CYLINDER 1
-
3190464-15093-00 CLAMPCLAMP
