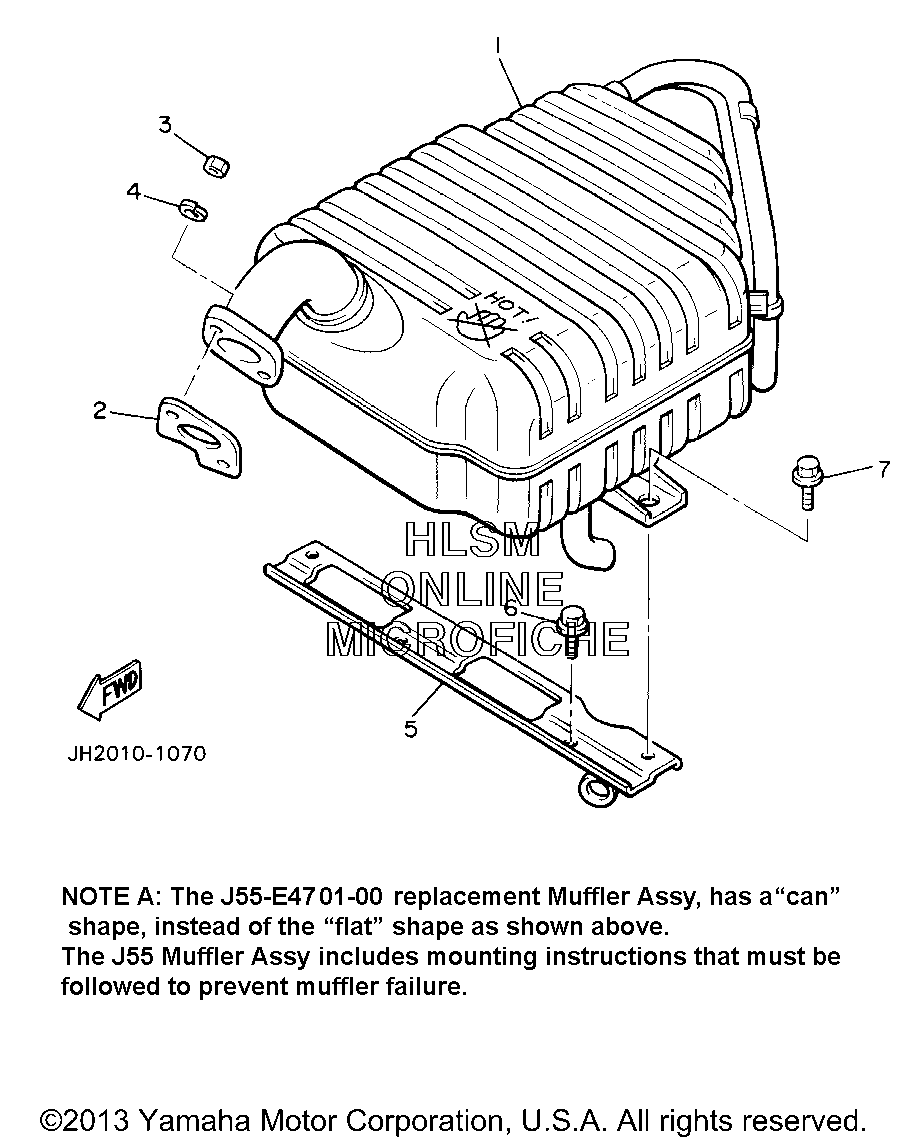

EXHAUST для Yamaha GOLF CAR GAS [G11AK] (JJ3) - 1994 года выпуска
-
№АртикулНазвание
-
1J55-E4710-01-00 MUFFLER ASSEMBLY 1 (SEE NOTE A)MUFFLER ASSEMBLY 1 (SEE NOTE A)
-
2J38-14613-01-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
395380-08600-00 NUTNUT
-
492990-08100-00 WASHER, SPRINGWASHER, SPRING
-
5J38-14771-00-00 STAY, MUFFLER 1STAY, MUFFLER 1
-
695026-10020-00 BOLT, FLANGEBOLT, FLANGE
-
790119-08119-00 BOLT, WITH WASHERBOLT, WITH WASHER
