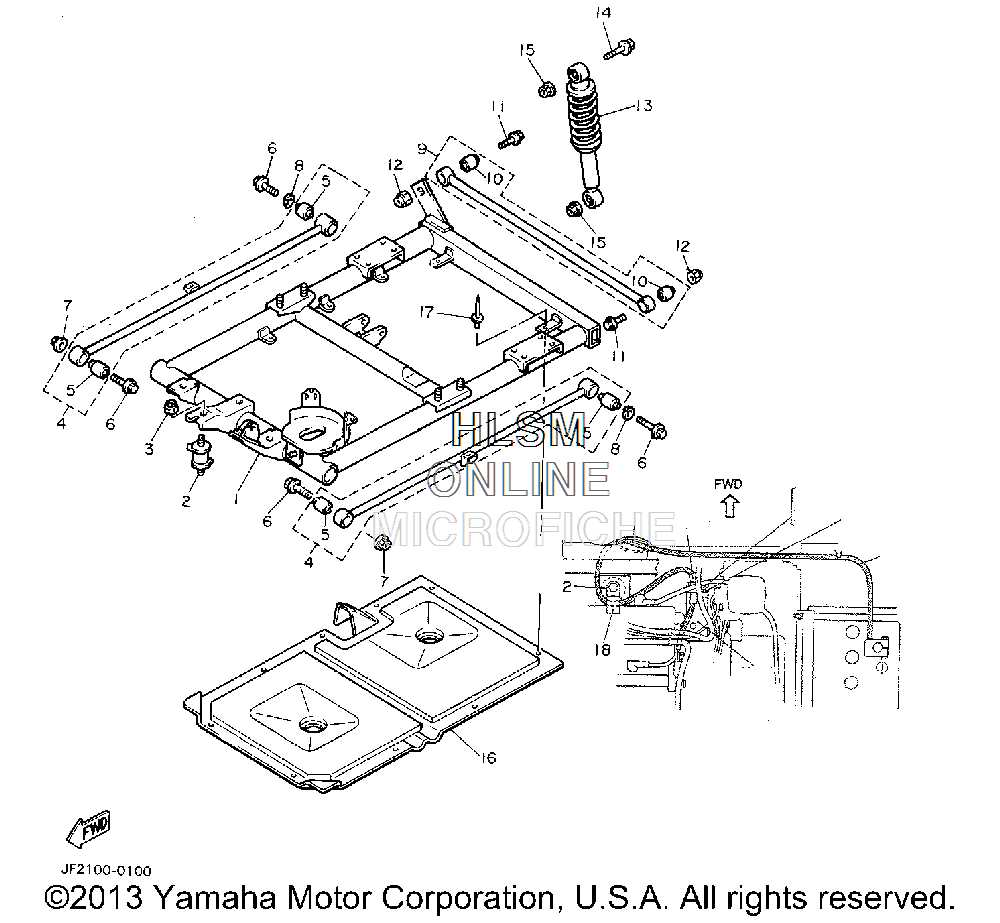

SUSPENSION - REAR ARM для Yamaha GOLF CAR GAS [G11AK] (JJ3) - 1994 года выпуска
-
№АртикулНазвание
-
1JF2-F2110-00-00 REAR ARM COMP.REAR ARM COMP.
-
2J50-22123-01-00 BUSH 1BUSH 1
-
390185-10115-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4J50-22171-00-00 ARM, REAR 1ARM, REAR 1
-
5J50-22124-00-00 ...BUSH 2...BUSH 2
-
695812-12065-00 BOLT, FLANGEBOLT, FLANGE
-
790185-12072-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
892901-12100-00 WASHER, SPRINGWASHER, SPRING
-
9JF2-22172-00-00 ARM, REAR 2ARM, REAR 2
-
10J50-22124-00-00 ...BUSH 2...BUSH 2
-
1195812-12065-00 BOLT, FLANGEBOLT, FLANGE
-
1290185-12072-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
13JJ3-22210-00-00 SHOCK ABSORBER ASSEMBLY, REARSHOCK ABSORBER ASSEMBLY, REAR
-
1495812-12065-00 BOLT, FLANGEBOLT, FLANGE
-
1590185-12072-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
16J38-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
1790267-40131-00 RIVET, BLINDRIVET, BLIND
-
1890461-10091-00 CLAMPCLAMP
