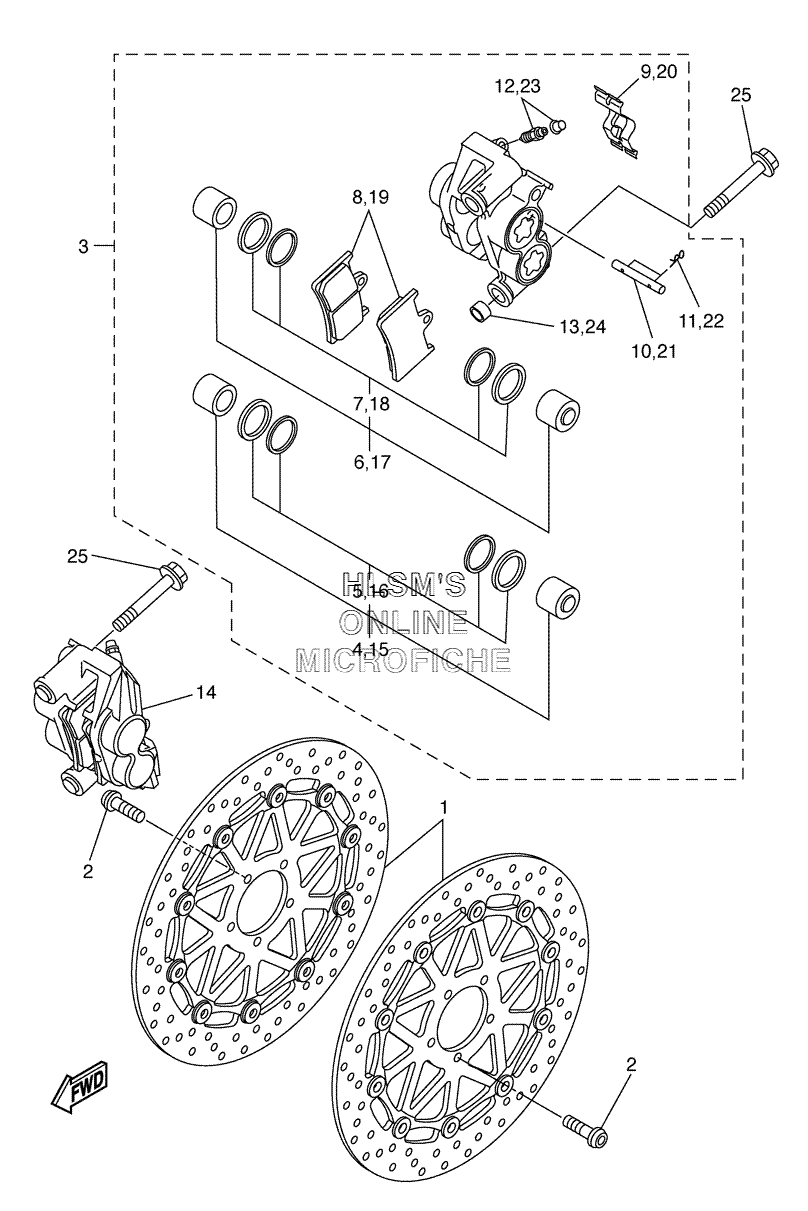

BRAKE - FRONT CALIPER для Yamaha YZF-R1 LIMITED EDITION - 2006 года выпуска
-
№АртикулНазвание
-
14B1-2581T-00-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
290109-083G4-00 BOLTBOLT
-
34B1-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
45PW-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
55PW-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
65PW-W0057-10-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
75PW-W0047-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
85VY-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
94SV-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
104SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
113GM-25925-00-00 ...CLIP...CLIP
-
121J3-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
135VY-2583B-00-00 ...PIN, KNOCK...PIN, KNOCK
-
144B1-2580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
155PW-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
165PW-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
175PW-W0057-10-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
185PW-W0047-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
195VY-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
204SV-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
214SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
223GM-25925-00-00 ...CLIP...CLIP
-
231J3-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
245VY-2583B-00-00 ...PIN, KNOCK...PIN, KNOCK
-
2590401-10012-00 BOLT, UNIONBOLT, UNION
