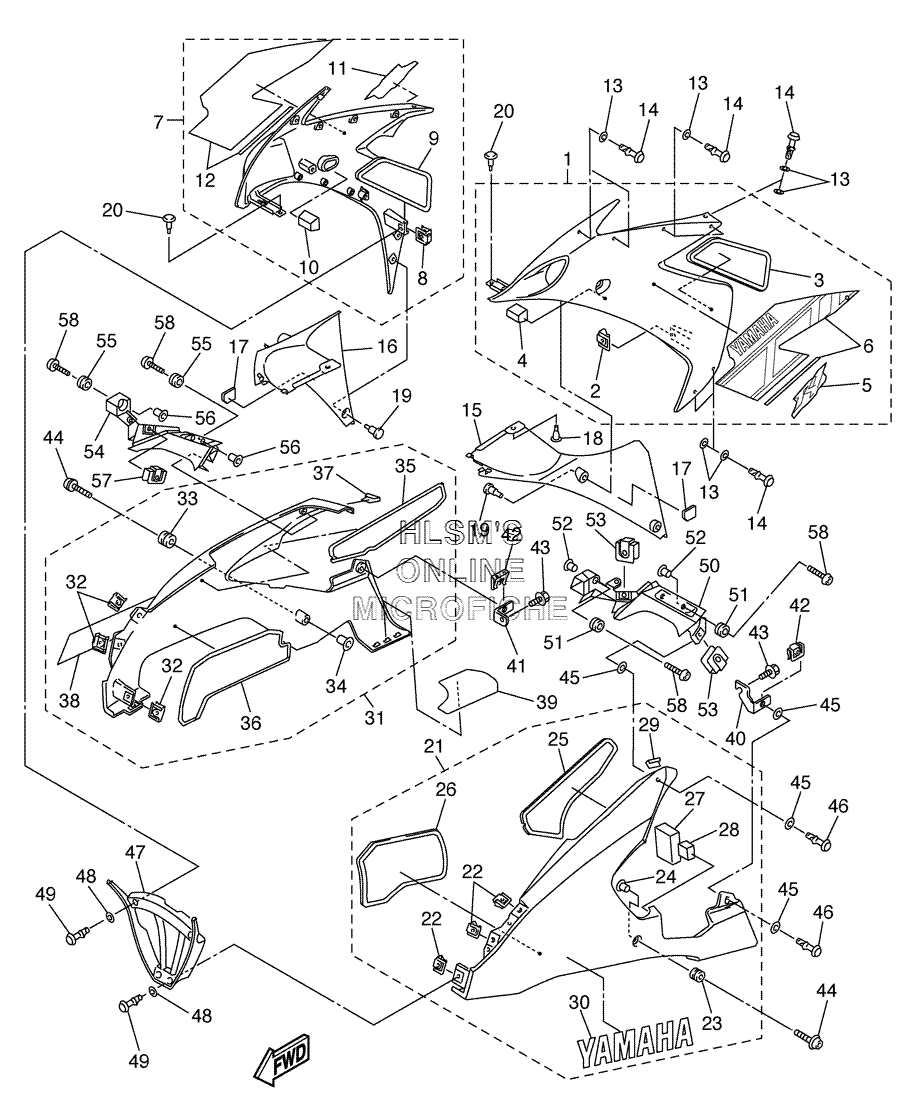

COWLING 2 для Yamaha YZF-R1 LIMITED EDITION - 2006 года выпуска
-
№АртикулНазвание
-
15VY-Y283U-80-0X PANEL ASSEMBLY 1 (RYC1/BWC1)PANEL ASSEMBLY 1 (RYC1/BWC1)
-
25PW-2177L-00-00 ...PLATE, SPRING...PLATE, SPRING
-
35VY-2848H-00-00 ...SEAT...SEAT
-
45VY-28322-00-00 ...STAY 2...STAY 2
-
55VY-2834C-50-00 ...EMBLEM 1...EMBLEM 1
-
65VY-283B1-10-00 ...GRAPHIC SET...GRAPHIC SET
-
75VY-Y283V-80-0X PANEL ASSEMBLY 2 (RYC1/BWC1)PANEL ASSEMBLY 2 (RYC1/BWC1)
-
85PW-2177L-00-00 ...PLATE, SPRING...PLATE, SPRING
-
95VY-2848K-00-00 ...SEAT 2...SEAT 2
-
105VY-28332-00-00 ...STAY, LEG SHIELD...STAY, LEG SHIELD
-
115VY-2835C-50-00 ...EMBLEM 2...EMBLEM 2
-
125VY-283B2-10-00 ...GRAPHIC SET...GRAPHIC SET
-
132TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
145PW-28386-00-00 HEADHEAD
-
155VY-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
165VY-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
175VY-28494-00-00 HOOK 3HOOK 3
-
1890269-07077-00 RIVETRIVET
-
1990269-06081-00 RIVETRIVET
-
2090269-07077-00 RIVETRIVET
-
215VY-Y2808-20-33 COVER ASSY, UNDER (YB)COVER ASSY, UNDER (YB)
-
225PW-2177L-00-00 ...PLATE, SPRING...PLATE, SPRING
-
2390480-12596-00 ...GROMMET...GROMMET
-
2490387-065J6-00 ...COLLAR...COLLAR
-
255VY-2848L-00-00 ...SEAT 3...SEAT 3
-
265VY-2848N-00-00 ...SEAT 5...SEAT 5
-
275VY-2837J-00-00 ...DAMPER 5...DAMPER 5
-
285VY-2837K-00-00 ...DAMPER 6...DAMPER 6
-
295VY-28307-00-00 ...SEAL...SEAL
-
305JJ-2153E-00-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
315VY-Y2809-20-33 COVER ASSY 2, UNDER (YB)COVER ASSY 2, UNDER (YB)
-
325PW-2177L-00-00 ...PLATE, SPRING...PLATE, SPRING
-
3390480-12596-00 ...GROMMET...GROMMET
-
3490387-065J6-00 ...COLLAR...COLLAR
-
355VY-2848M-00-00 ...SEAT 4...SEAT 4
-
365VY-2848P-00-00 ...SEAT 6...SEAT 6
-
375VY-28307-00-00 ...SEAL...SEAL
-
385JJ-2153E-00-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
395VY-2848R-00-00 SEAT 7SEAT 7
-
405VY-2836A-00-00 BRACKET 1BRACKET 1
-
415VY-2836E-00-00 BRACKET 2BRACKET 2
-
425PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
4390109-06056-00 BOLTBOLT
-
4490149-06302-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
452TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
465PW-28386-00-00 HEADHEAD
-
475VY-2836M-00-00 PANEL, INNER 3PANEL, INNER 3
-
482TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
495PW-28386-00-00 HEADHEAD
-
505VY-2117V-00-00 COVER 7COVER 7
-
5190480-12596-00 GROMMETGROMMET
-
5290387-065J6-00 COLLARCOLLAR
-
535PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
545VY-2117W-00-00 COVER 8COVER 8
-
5590480-12596-00 GROMMETGROMMET
-
5690387-065J6-00 COLLARCOLLAR
-
575PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
5890111-06030-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
