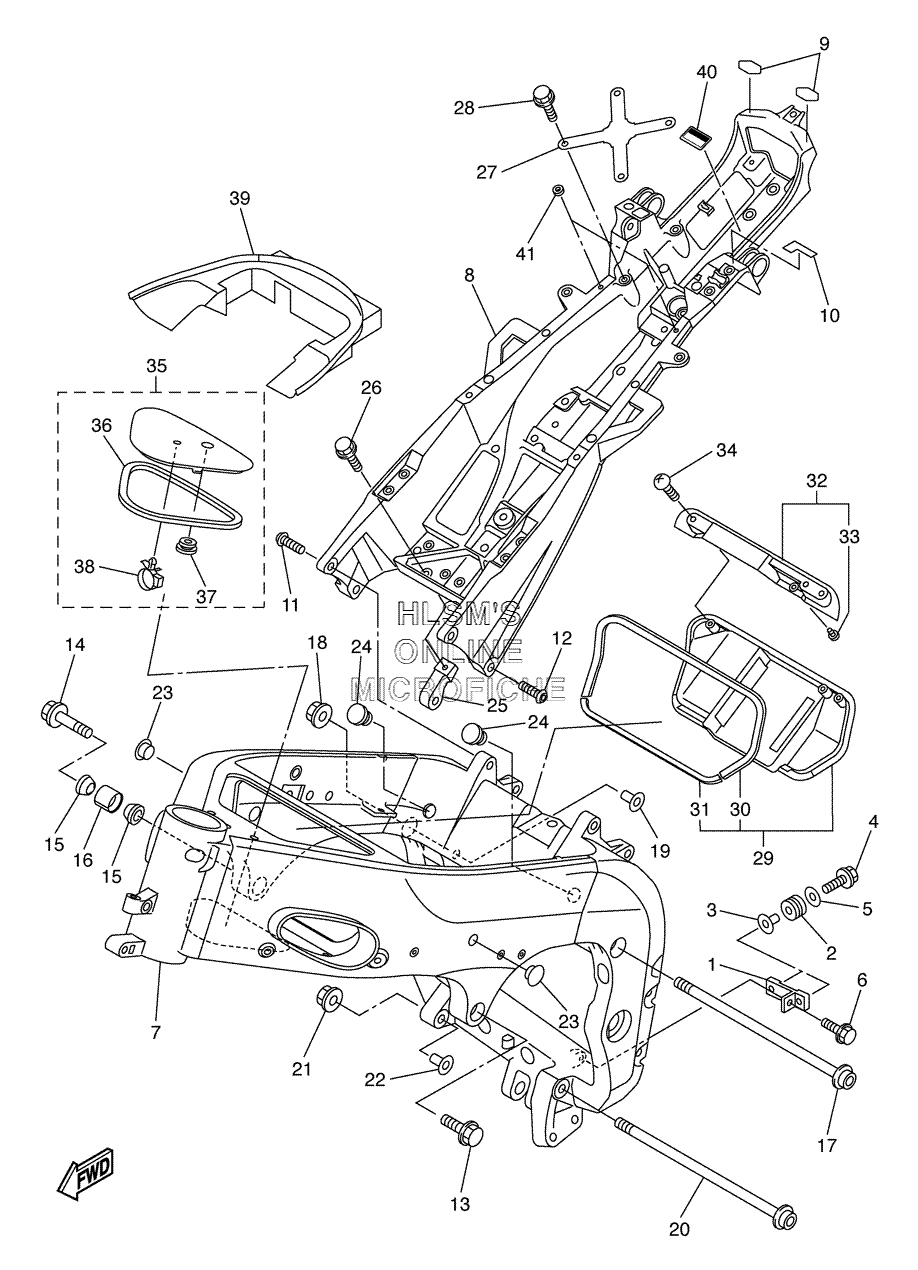

FRAME для Yamaha YZF-R1 LIMITED EDITION - 2006 года выпуска
-
№АртикулНазвание
-
15VY-2116J-00-00 BRACKET 7BRACKET 7
-
290480-14005-00 GROMMETGROMMET
-
390387-063E6-00 COLLARCOLLAR
-
495022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
590201-06M31-00 WASHER, PLATEWASHER, PLATE
-
695024-06012-00 BOLT, FLANGEBOLT, FLANGE
-
75VY-21110-20-P0 FRAME COMP. (EXCEPT CALIF)FRAME COMP. (EXCEPT CALIF)
-
75VY-21110-30-P0 FRAME COMP. (CALIF ONLY)FRAME COMP. (CALIF ONLY)
-
85VY-21190-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
95VY-21268-00-00 SEALSEAL
-
105VY-21269-00-00 SEALSEAL
-
1190149-10015-00 SCREWSCREW
-
1290149-10017-00 SCREWSCREW
-
1395024-10040-00 BOLT, FLANGEBOLT, FLANGE
-
1495024-10050-00 BOLT, FLANGEBOLT, FLANGE
-
154B1-21414-00-00 BOSS, ENGINE MOUNTBOSS, ENGINE MOUNT
-
164B1-21424-00-00 BOSS, ENGINE MOUNTBOSS, ENGINE MOUNT
-
1790110-10005-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1890179-10696-00 NUTNUT
-
195EB-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
2090110-10005-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2190179-10696-00 NUTNUT
-
225EB-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
2390338-15004-00 PLUGPLUG
-
2490338-23004-00 PLUGPLUG
-
255VY-21435-00-00 BRACKET, MUFFLER 1BRACKET, MUFFLER 1
-
2690109-06056-00 BOLTBOLT
-
275VY-21131-00-00 BRACKETBRACKET
-
2895827-06016-00 BOLT, FLANGEBOLT, FLANGE
-
295VY-2110M-00-00 COVER ASSYCOVER ASSY
-
305VY-2174X-00-00 ...DAMPER...DAMPER
-
315VY-21746-00-00 ...DAMPER...DAMPER
-
325VY-2131P-00-00 COVER PLATE COMP.COVER PLATE COMP.
-
3390338-06018-00 ...PLUG, SPEC'L SHAPE...PLUG, SPEC'L SHAPE
-
3490167-05080-00 SCREW, TAPPINGSCREW, TAPPING
-
355VY-2110M-10-00 COVER ASSYCOVER ASSY
-
365VY-2174Y-00-00 ...DAMPER...DAMPER
-
3790480-01333-00 ...GROMMET...GROMMET
-
3890464-16006-00 ...CLAMP...CLAMP
-
395VY-2117R-00-00 COVER 4COVER 4
-
403TB-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
415SL-84753-00-00 DAMPERDAMPER
