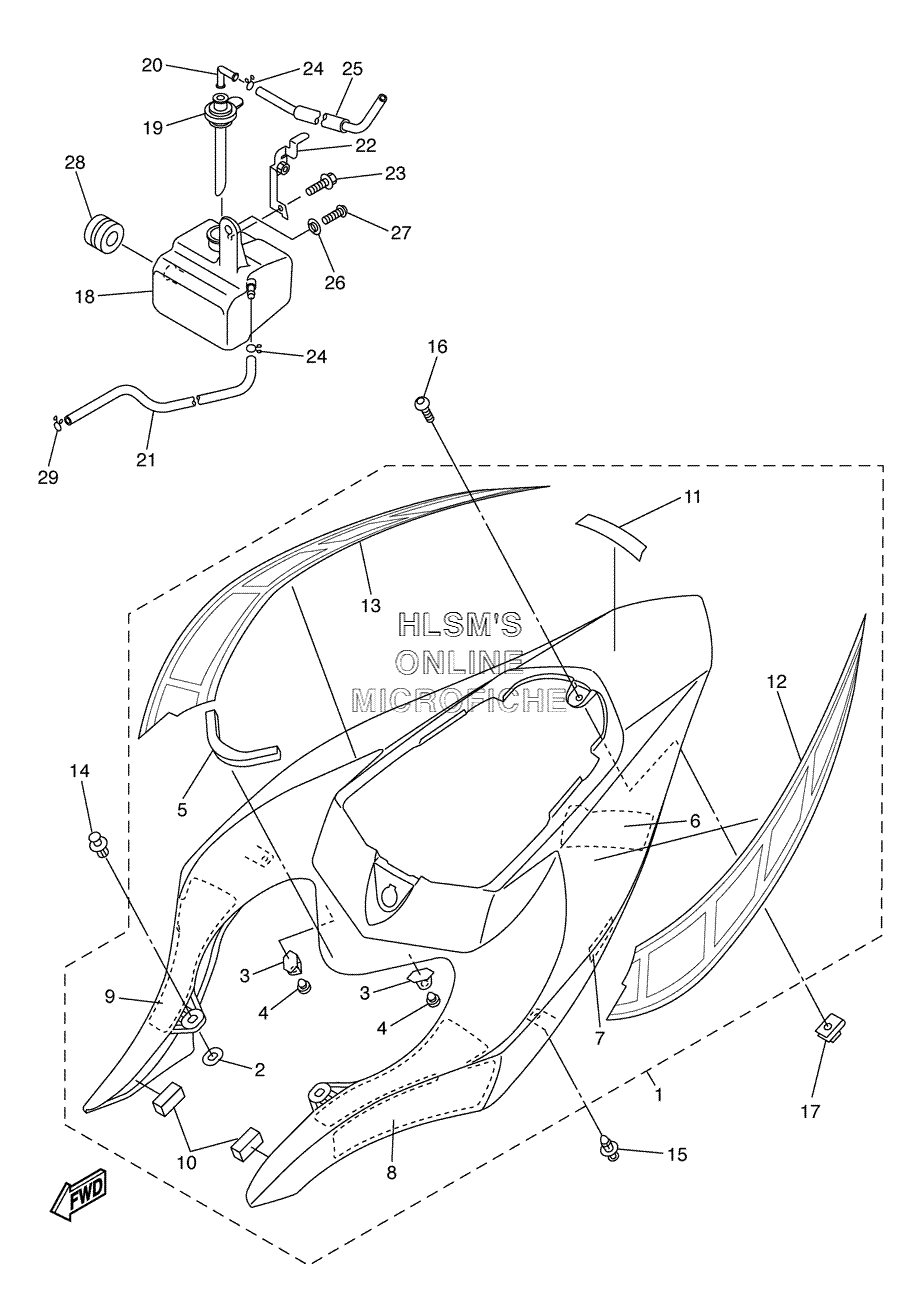

SIDE COVER для Yamaha YZF-R1 LIMITED EDITION - 2006 года выпуска
-
№АртикулНазвание
-
15VY-Y2171-61-P5 COVER, SIDE 1 (RYC1)COVER, SIDE 1 (RYC1)
-
25PW-2174X-00-00 ...DAMPER...DAMPER
-
35VY-2172E-00-00 ...STAY, SIDE COVER 1...STAY, SIDE COVER 1
-
490338-06018-00 ...PLUG, SPEC'L SHAPE...PLUG, SPEC'L SHAPE
-
55VY-21747-00-00 ...DAMPER...DAMPER
-
61JK-21735-00-00 ...SEAL 2...SEAL 2
-
75PW-21732-00-00 ...SEAL 1...SEAL 1
-
85VY-2172P-00-00 ...SEAT, 1...SEAT, 1
-
95VY-2173P-00-00 ...SEAT, 2...SEAT, 2
-
101UJ-21717-00-00 ...DAMPER...DAMPER
-
1199244-00080-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
125VY-2173E-00-00 ...GRAPHIC 1...GRAPHIC 1
-
135VY-2173F-00-00 ...GRAPHIC 2...GRAPHIC 2
-
1490269-07076-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
1590269-06011-00 RIVETRIVET
-
1690111-05007-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1790183-05076-00 NUT, SPRINGNUT, SPRING
-
185VY-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
195VY-21875-00-00 CAPCAP
-
2026H-21828-00-00 ELBOWELBOW
-
2190445-08022-00 HOSEHOSE
-
225VY-21843-00-00 STAY, 4STAY, 4
-
2390105-06052-00 BOLT, FLANGEBOLT, FLANGE
-
2490467-08075-00 CLIP, SCISSORCLIP, SCISSOR
-
2590445-087K6-00 HOSE (L700)HOSE (L700)
-
2690387-062M9-00 COLLARCOLLAR
-
2792017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2890480-20001-00 GROMMETGROMMET
-
2990467-08075-00 CLIP, SCISSORCLIP, SCISSOR
