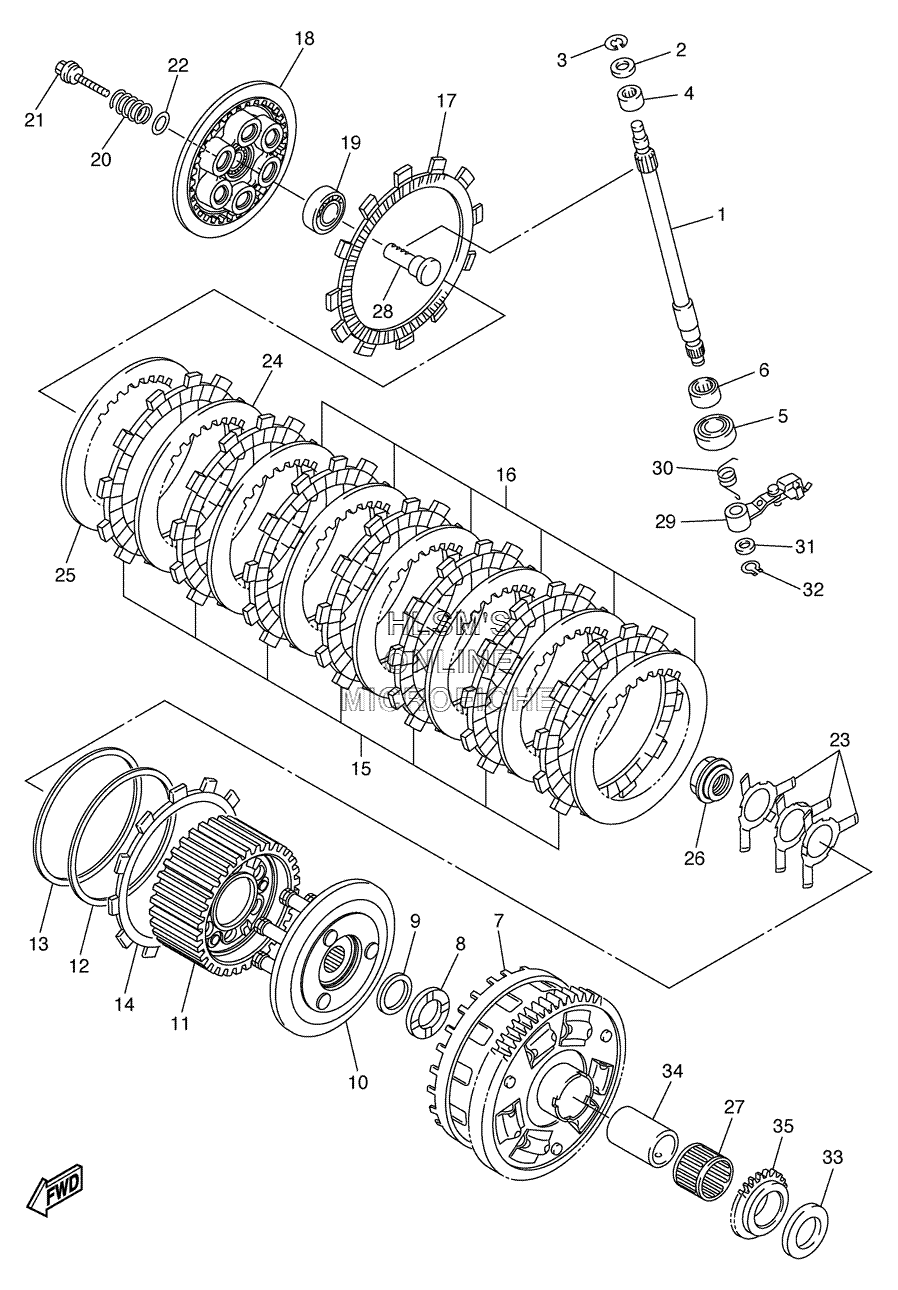

CLUTCH для Yamaha YZF-R1 LIMITED EDITION - 2006 года выпуска
-
№АртикулНазвание
-
15VY-16382-10-00 AXLE, PUSH LEVERAXLE, PUSH LEVER
-
292907-08600-00 WASHER, PLATEWASHER, PLATE
-
399001-07600-00 CIRCLIPCIRCLIP
-
493317-11096-00 BEARINGBEARING
-
593102-15212-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
693315-31502-00 BEARING, CYL.#15BEARING, CYL.#15
-
74B1-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
84B1-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
990208-25002-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
104B1-16360-00-00 PRESSURE PLATE ASSY 2PRESSURE PLATE ASSY 2
-
114B1-16370-00-00 CLUTCH BOSS ASSYCLUTCH BOSS ASSY
-
125VY-16384-00-00 PLATE, SEATPLATE, SEAT
-
134B1-16383-00-00 SPRING, CLUTCH BOSSSPRING, CLUTCH BOSS
-
145VY-16331-00-00 PLATE, FRICTION 2PLATE, FRICTION 2
-
155VY-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
165VY-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
175VY-16330-00-00 PLATE, FRICTION 2PLATE, FRICTION 2
-
184B1-16351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
1993306-00304-00 BEARINGBEARING
-
2090501-240A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2190159-06026-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
224B1-16384-00-00 PLATE, SEATPLATE, SEAT
-
232C0-16539-00-00 SPRINGSPRING
-
245VY-16325-00-00 PLATE, CLUTCH 2 (T2.0)PLATE, CLUTCH 2 (T2.0)
-
244B1-16325-00-00 PLATE, CLUTCH 2 (T2.3)PLATE, CLUTCH 2 (T2.3)
-
255VY-16325-00-00 PLATE, CLUTCH 2 (T2.0)PLATE, CLUTCH 2 (T2.0)
-
254B1-16325-00-00 PLATE, CLUTCH 2 (T2.3)PLATE, CLUTCH 2 (T2.3)
-
254B1-16324-00-00 PLATE, CLUTCH 1 (T1.6)PLATE, CLUTCH 1 (T1.6)
-
264B1-16377-00-00 NUT, LOCKNUT, LOCK
-
2793310-232R9-00 BEARINGBEARING
-
284XV-16356-01-00 ROD, PUSH 1ROD, PUSH 1
-
295VY-16340-10-00 PUSH LEVER ASSYPUSH LEVER ASSY
-
3090508-16041-00 SPRING, TORSIONSPRING, TORSION
-
3190201-10029-00 WASHER, PLATEWASHER, PLATE
-
3299009-10400-00 CIRCLIPCIRCLIP
-
335VY-16164-00-00 PLATE, THRUST 2PLATE, THRUST 2
-
345VY-16181-00-00 SPACER 1SPACER 1
-
355VY-13354-00-00 SPROCKET, DRIVESPROCKET, DRIVE
