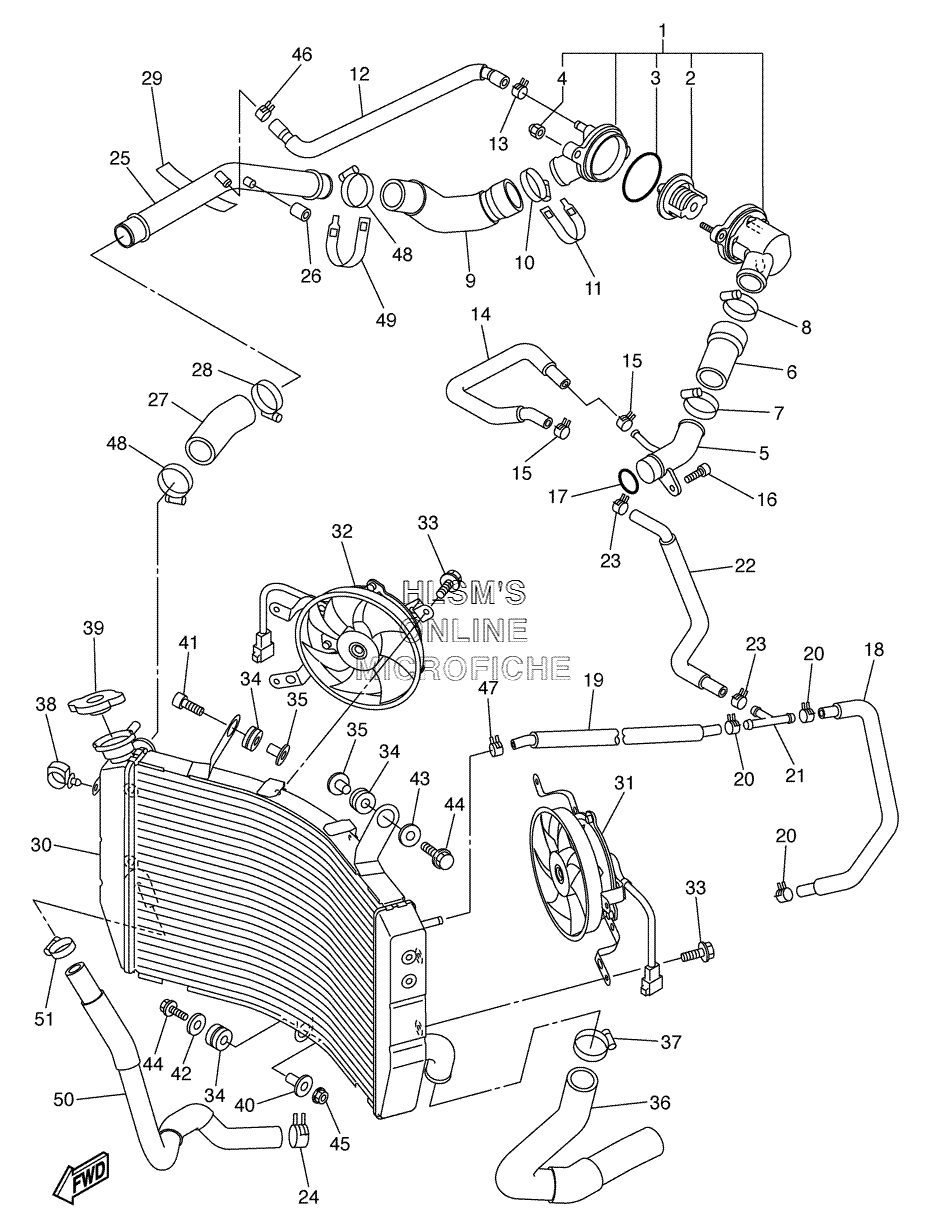

RADIATOR для Yamaha YZF-R1 LIMITED EDITION - 2006 года выпуска
-
№АртикулНазвание
-
15VY-12410-10-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
25LP-12411-00-00 ...THERMOSTAT...THERMOSTAT
-
393210-49046-00 ...O-RING...O-RING
-
490176-06014-00 ...NUT, CROWN...NUT, CROWN
-
55VY-12485-10-00 PIPE 5PIPE 5
-
65VY-12579-00-00 HOSE 4HOSE 4
-
790450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
890450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
95VY-12577-00-00 HOSE 2HOSE 2
-
1090450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
115GV-1246A-00-00 COVER 1COVER 1
-
125VY-12552-00-00 HOSE 8HOSE 8
-
1390467-11044-00 CLIPCLIP
-
145VY-1243F-00-00 HOSE, 3HOSE, 3
-
1590467-11090-00 CLIP, SCISSORCLIP, SCISSOR
-
1690110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1793210-235A1-00 O-RINGO-RING
-
185VY-1243A-00-00 HOSE 1HOSE 1
-
195VY-1244G-00-00 HOSE, 4HOSE, 4
-
2090467-11090-00 CLIP, SCISSORCLIP, SCISSOR
-
2190413-07023-00 WAY 3WAY 3
-
225VY-1243E-00-00 HOSE 2HOSE 2
-
2390467-11090-00 CLIP, SCISSORCLIP, SCISSOR
-
2490467-200A0-00 CLIPCLIP
-
255VY-12483-01-00 PIPE 3PIPE 3
-
2690445-11418-00 HOSE (L18)HOSE (L18)
-
275VY-12578-00-00 HOSE 3HOSE 3
-
2890450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
295VY-12494-00-00 SEAL, PIPE 1SEAL, PIPE 1
-
305VY-12461-00-00 RADIATOR ASSYRADIATOR ASSY
-
315VY-12405-00-00 BLOWER ASSYBLOWER ASSY
-
325VY-12405-10-00 BLOWER ASSYBLOWER ASSY
-
335GJ-12675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
3490480-15363-00 GROMMETGROMMET
-
3590387-0614M-00 COLLARCOLLAR
-
365VY-12551-00-00 HOSE 7HOSE 7
-
3790450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3890464-13249-00 CLAMPCLAMP
-
395SL-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
4090387-0614M-00 COLLARCOLLAR
-
4191317-06030-00 BOLTBOLT
-
4290201-06071-00 WASHER, PLATEWASHER, PLATE
-
4390201-06074-00 WASHER, PLATEWASHER, PLATE
-
4495827-06030-00 BOLT, FLANGEBOLT, FLANGE
-
4595607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
4690467-12191-00 CLIP, SCISSORCLIP, SCISSOR
-
4790467-11090-00 CLIP, SCISSORCLIP, SCISSOR
-
4890450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
495GV-1246E-00-00 COVER 2COVER 2
-
505VY-12589-01-00 HOSE 6HOSE 6
-
5190450-22017-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
