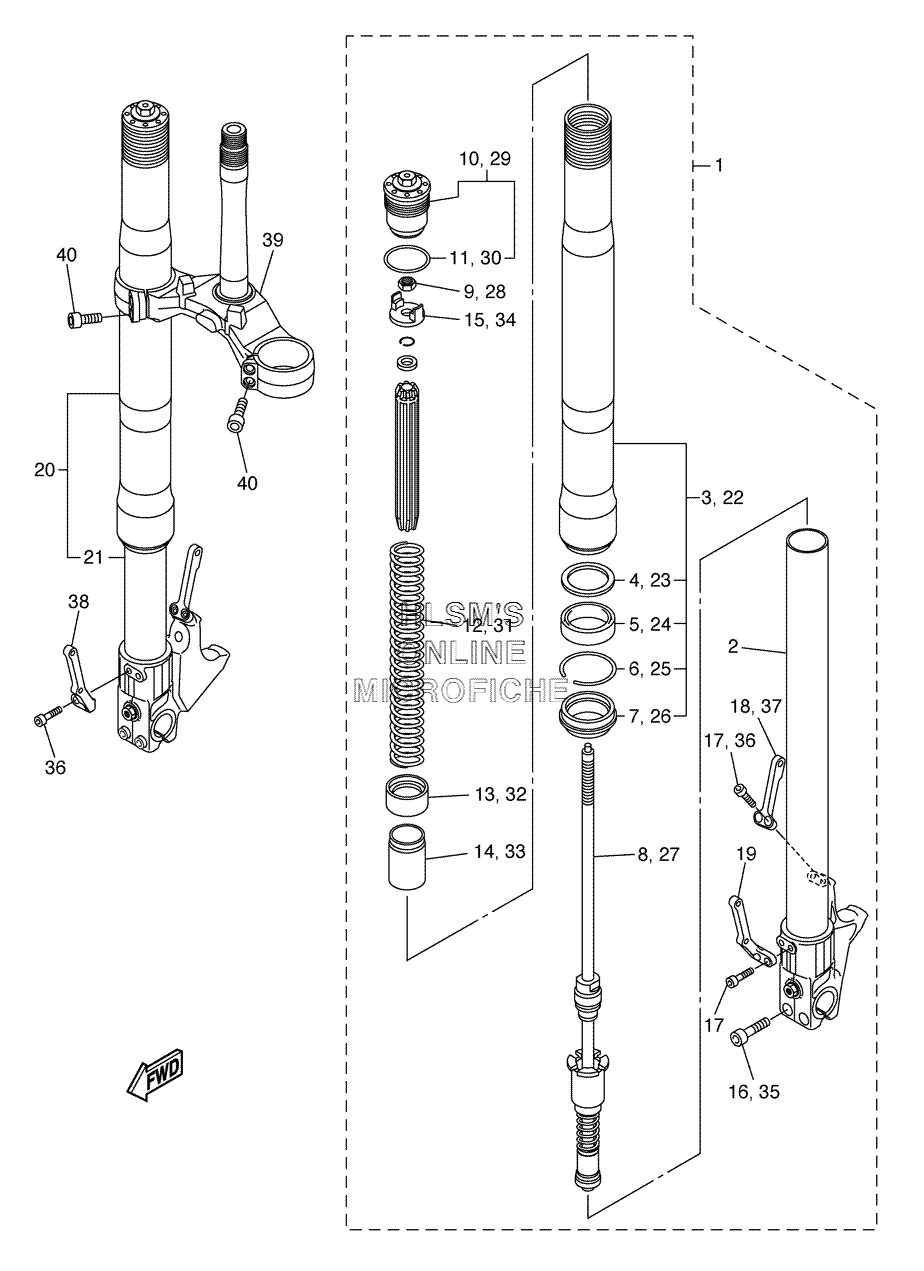

SUSPENSION - FRONT FORK для Yamaha YZF-R1 LIMITED EDITION - 2006 года выпуска
-
№АртикулНазвание
-
14B1-23102-00-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
24B1-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
34B1-23106-00-00 ...OUTER TUBE COMP. (L.H)...OUTER TUBE COMP. (L.H)
-
44TX-23115-00-00 ......GUIDE, COVER UPPER......GUIDE, COVER UPPER
-
55VX-23145-00-00 ......OIL SEAL......OIL SEAL
-
64TX-23156-00-00 ......CLIP, OIL SEAL......CLIP, OIL SEAL
-
74TX-23144-00-00 ......SEAL, DUST......SEAL, DUST
-
84B1-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
995302-12700-00 ...NUT...NUT
-
104B1-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
1193210-41N50-00 ......O-RING......O-RING
-
124B1-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
134B1-2331K-00-00 ...ADJUSTER...ADJUSTER
-
144B1-2331L-00-00 ...SEAT, SPRING UPPER...SEAT, SPRING UPPER
-
154B1-23142-00-00 ...SEAT, SPRING UPPER...SEAT, SPRING UPPER
-
1691314-08040-00 ...BOLT...BOLT
-
1791314-05010-00 ...BOLT...BOLT
-
184B1-2334G-00-00 ...BRACKET 1...BRACKET 1
-
194B1-2317F-00-00 ...STAY 2...STAY 2
-
204B1-23103-00-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
214B1-23120-00-00 ......INNER TUBE COMP. 2......INNER TUBE COMP. 2
-
224B1-23106-00-00 ...OUTER TUBE COMP. (L.H)...OUTER TUBE COMP. (L.H)
-
234TX-23115-00-00 ......GUIDE, COVER UPPER......GUIDE, COVER UPPER
-
245VX-23145-00-00 ......OIL SEAL......OIL SEAL
-
254TX-23156-00-00 ......CLIP, OIL SEAL......CLIP, OIL SEAL
-
264TX-23144-00-00 ......SEAL, DUST......SEAL, DUST
-
274B1-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
2895302-12700-00 ...NUT...NUT
-
294B1-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
3093210-41N50-00 ......O-RING......O-RING
-
314B1-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
324B1-2331K-00-00 ...ADJUSTER...ADJUSTER
-
334B1-2331L-00-00 ...SEAT, SPRING UPPER...SEAT, SPRING UPPER
-
344B1-23142-00-00 ...SEAT, SPRING UPPER...SEAT, SPRING UPPER
-
3591314-08040-00 ...BOLT...BOLT
-
3691314-05010-00 ...BOLT...BOLT
-
374B1-2334G-00-00 ...BRACKET 1...BRACKET 1
-
384B1-2317M-00-00 ...STAY 3...STAY 3
-
395VY-23340-30-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
4091314-08030-00 BOLTBOLT
