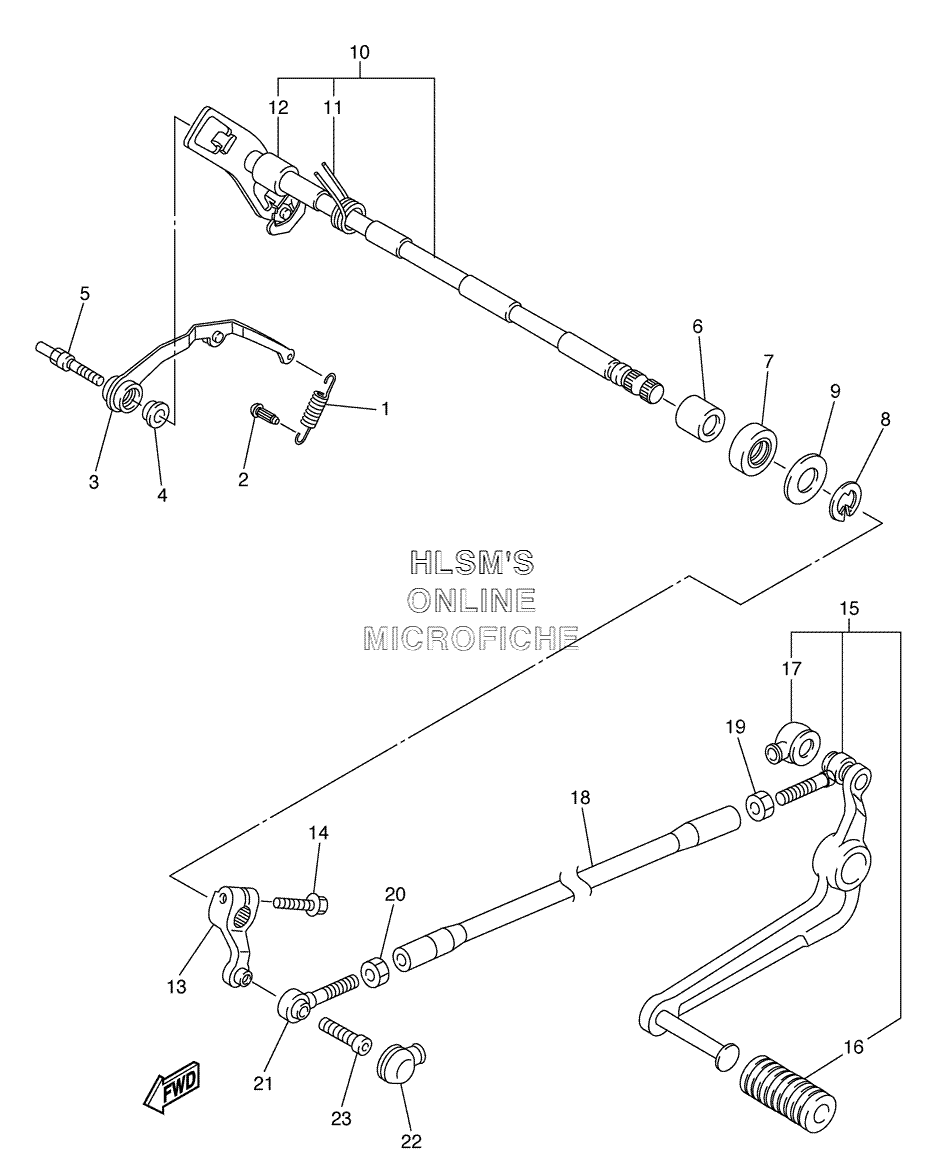

SHIFT SHAFT для Yamaha YZF-R1 LIMITED EDITION - 2006 года выпуска
-
№АртикулНазвание
-
15VY-18144-00-00 HANGER, SPRINGHANGER, SPRING
-
2132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
35VY-18140-00-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
490387-0804S-00 COLLARCOLLAR
-
55VY-18127-10-00 STOPPER, SCREWSTOPPER, SCREW
-
693317-11287-00 BEARINGBEARING
-
793101-12004-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
899002-10600-00 CIRCLIPCIRCLIP
-
990201-12575-00 WASHER, PLATEWASHER, PLATE
-
105VY-18101-10-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
1190508-32020-00 ...SPRING, TORSION...SPRING, TORSION
-
1290387-1211D-00 ...COLLAR...COLLAR
-
135VY-18112-00-00 ARM, SHIFTARM, SHIFT
-
1495022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
155VY-18110-00-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
165EB-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
174XV-18154-00-00 ...COVER, DUST...COVER, DUST
-
185VY-18115-00-00 ROD, SHIFTROD, SHIFT
-
1990170-06228-00 NUT (COUNTER CLOCKWISE)NUT (COUNTER CLOCKWISE)
-
2095304-06700-00 NUTNUT
-
215LV-18116-00-00 JOINT, ROD 1JOINT, ROD 1
-
224XV-18154-00-00 COVER, DUSTCOVER, DUST
-
2390111-06019-00 BOLT, HEXAGON SOCKET BUTTONBOLT, HEXAGON SOCKET BUTTON
