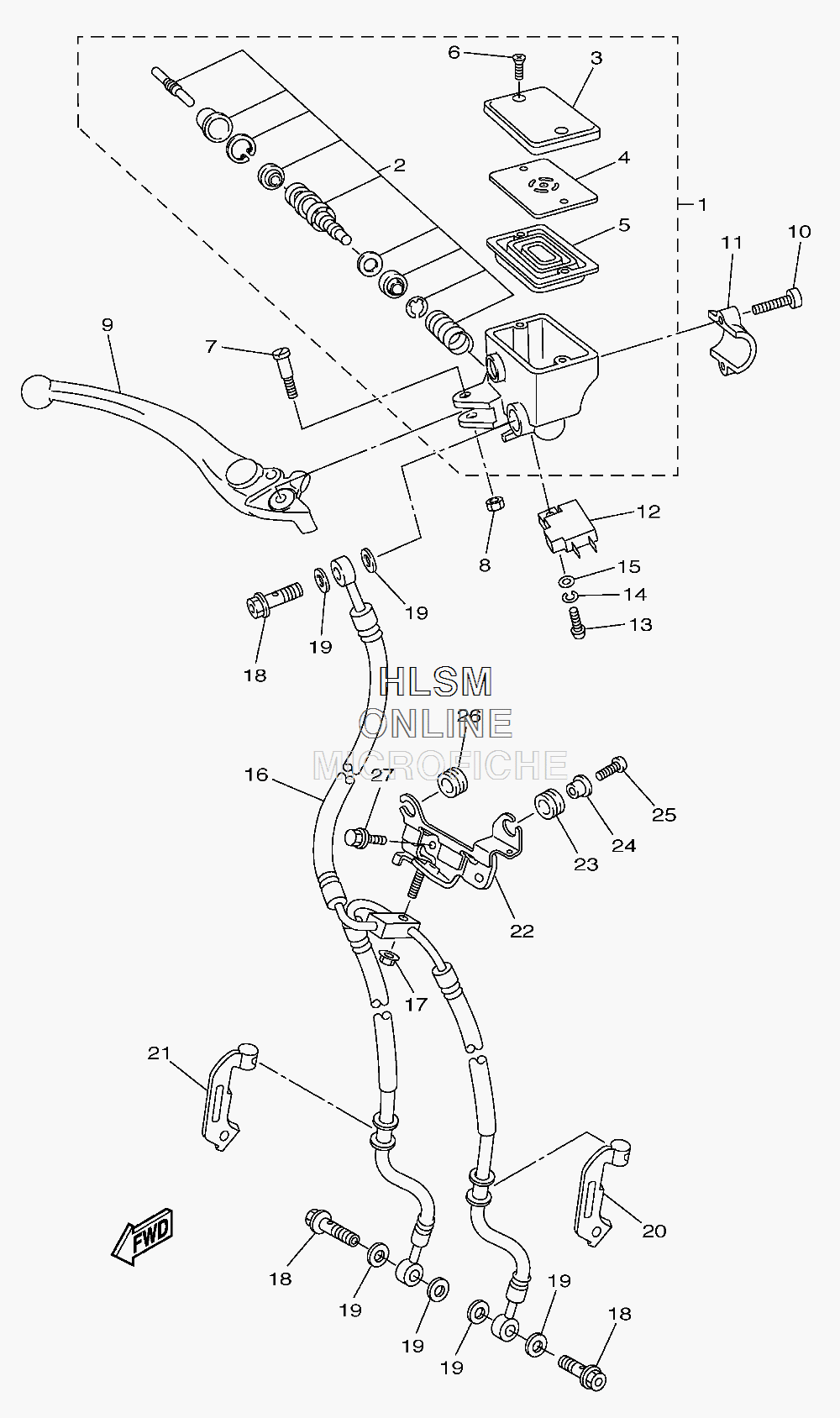

BRAKE - FRONT MASTER CYLINDER для Yamaha FZ8 - 2011 года выпуска
-
№АртикулНазвание
-
12D1-W2587-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
22D1-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
35VS-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
45VS-25855-00-00 ...BUSH, DIAPHRAGM...BUSH, DIAPHRAGM
-
520S-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
65VS-2589H-00-00 ...SCREW...SCREW
-
75VS-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
895617-06100-00 NUT, UNUT, U
-
95VS-83922-00-00 LEVER 2LEVER 2
-
105VS-26332-00-00 BOLTBOLT
-
115VS-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
124HM-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1398502-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1492902-04100-00 WASHER, SPRINGWASHER, SPRING
-
1592902-04600-00 WASHER, PLATEWASHER, PLATE
-
1639P-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1795702-06500-00 NUT, FLANGENUT, FLANGE
-
1890401-10020-00 BOLT, UNIONBOLT, UNION
-
1990430-10005-00 GASKETGASKET
-
202D1-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
212D1-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
2239P-84118-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
2390480-14004-00 GROMMETGROMMET
-
2490387-06M60-00 COLLARCOLLAR
-
2590149-06302-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
2690480-13005-00 GROMMETGROMMET
-
2795802-06014-00 BOLT, FLANGEBOLT, FLANGE
