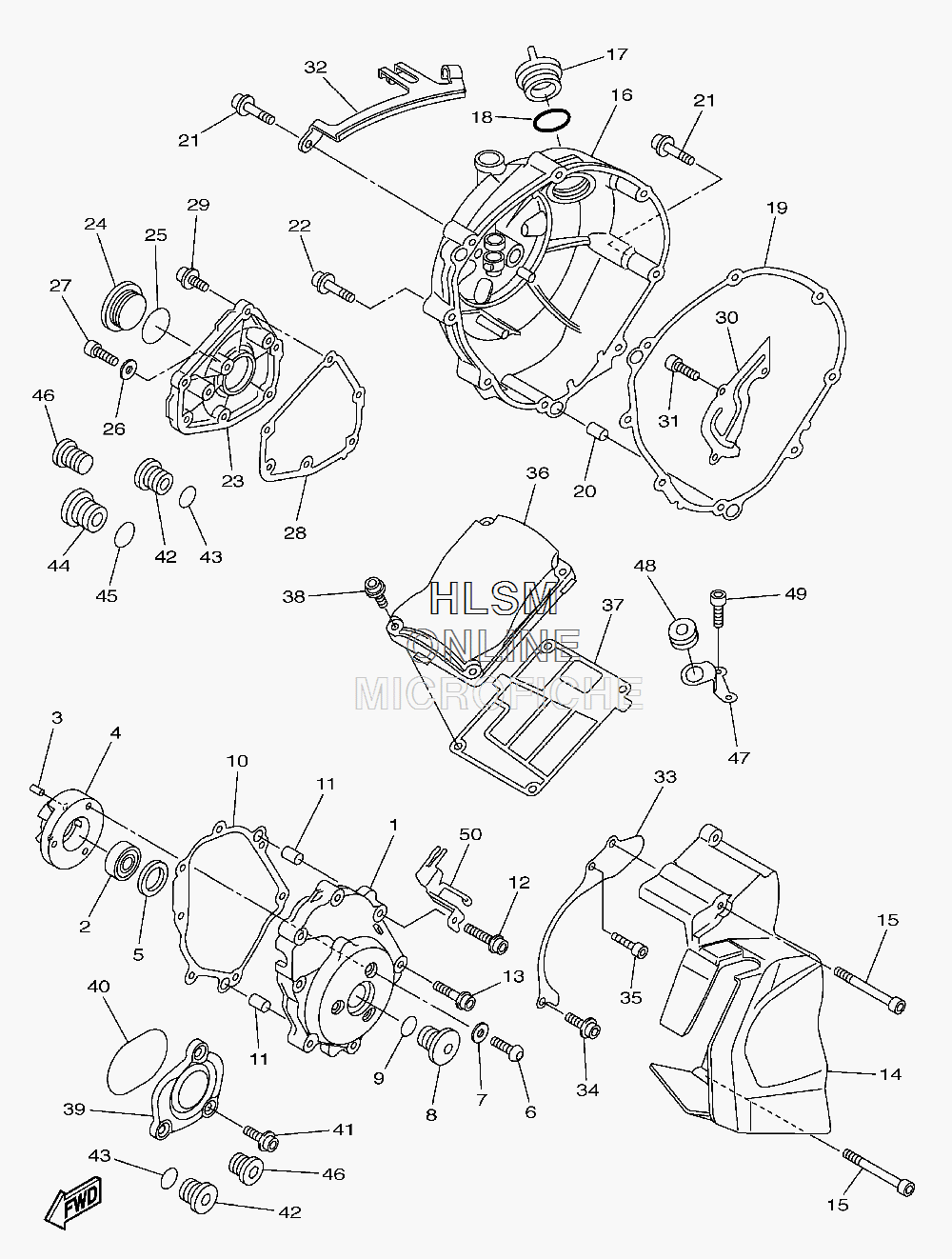

CRANKCASE COVER для Yamaha FZ8 - 2011 года выпуска
-
№АртикулНазвание
-
15VY-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
293306-20124-00 BEARINGBEARING
-
393605-10108-00 PIN, DOWELPIN, DOWEL
-
45VY-15164-00-00 HOUSING, BEARING 2HOUSING, BEARING 2
-
55VY-15542-00-00 COLLAR 2COLLAR 2
-
690149-06064-00 SCREWSCREW
-
790201-06431-00 WASHER, PLATEWASHER, PLATE
-
85PX-15189-00-00 PLUGPLUG
-
993210-22382-00 O-RINGO-RING
-
102D1-15451-10-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
1199480-10018-00 PINPIN
-
1290110-06323-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1390110-08099-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
142D1-15418-00-00 COVER, CHAIN CASECOVER, CHAIN CASE
-
1590110-06255-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
162D1-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
173F9-15362-10-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
1893210-27194-00 O-RINGO-RING
-
194C8-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
2093610-20189-00 PIN, DOWELPIN, DOWEL
-
2190110-06321-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2290110-06320-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
232D1-15416-00-00 COVER, OIL PUMPCOVER, OIL PUMP
-
2490340-32004-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
2593210-32172-00 O-RINGO-RING
-
2690430-08143-00 GASKETGASKET
-
2792014-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
284C8-15456-00-00 GASKET, OIL PUMP COVER 1GASKET, OIL PUMP COVER 1
-
2990110-06331-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
305VY-11165-00-00 PLATE, BREATHERPLATE, BREATHER
-
3190110-06182-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3239P-15441-00-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
3339P-15113-00-00 PLATEPLATE
-
3490110-06277-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3590110-06276-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
362D1-15413-00-00 COVERCOVER
-
374C8-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
3890110-06172-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
394C8-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
4093210-57003-00 O-RINGO-RING
-
4190110-06331-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4236Y-15189-00-00 PLUGPLUG
-
4393210-16325-00 O-RINGO-RING
-
444H7-15189-00-00 PLUGPLUG
-
4593210-22382-00 O-RINGO-RING
-
4690340-12003-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
475VY-12443-10-00 STAYSTAY
-
4890480-13014-00 GROMMETGROMMET
-
4991380-06014-00 BOLTBOLT
-
5039P-14413-00-00 STAYSTAY
