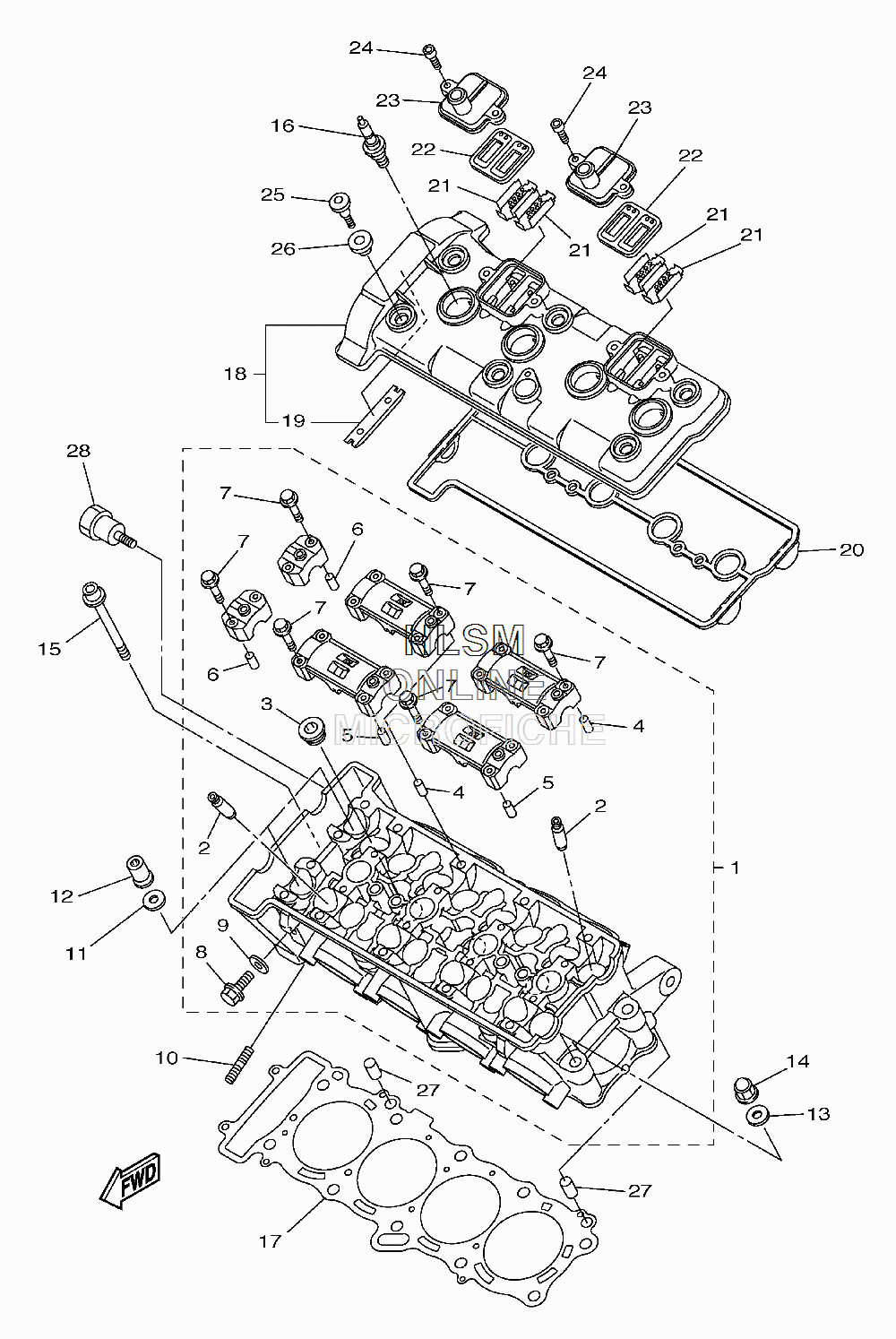

CYLINDER HEAD для Yamaha FZ8 - 2011 года выпуска
-
№АртикулНазвание
-
139P-11101-09-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
220S-11134-10-00 ...GUIDE, VALVE 2...GUIDE, VALVE 2
-
390340-18002-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
491808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
591808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
691808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
790105-06027-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
895024-06012-00 ...BOLT, FLANGE (SMALL HEAD)...BOLT, FLANGE (SMALL HEAD)
-
990430-06014-00 ...GASKET...GASKET
-
1090116-08087-00 BOLT, STUDBOLT, STUD
-
1190201-10050-00 WASHER, PLATEWASHER, PLATE
-
1290179-10029-00 NUTNUT
-
1390201-10050-00 WASHER, PLATEWASHER, PLATE
-
1490176-10075-00 NUT, CROWNNUT, CROWN
-
1590110-06212-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1694701-00318-00 PLUG, SPARK (NGK R CR9E)PLUG, SPARK (NGK R CR9E)
-
1739P-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
184C8-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
195BE-12241-00-00 ...GUIDE, STOPPER 2...GUIDE, STOPPER 2
-
204C8-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
215VY-1482K-00-00 PLATEPLATE
-
225SL-14890-10-00 REED VALVE ASSYREED VALVE ASSY
-
235VY-14899-01-00 CAP, CASECAP, CASE
-
2490110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2590109-066F0-00 BOLTBOLT
-
265VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
2799530-10114-00 PIN, DOWELPIN, DOWEL
-
282D1-11026-00-00 BOLT, MOUNTBOLT, MOUNT
