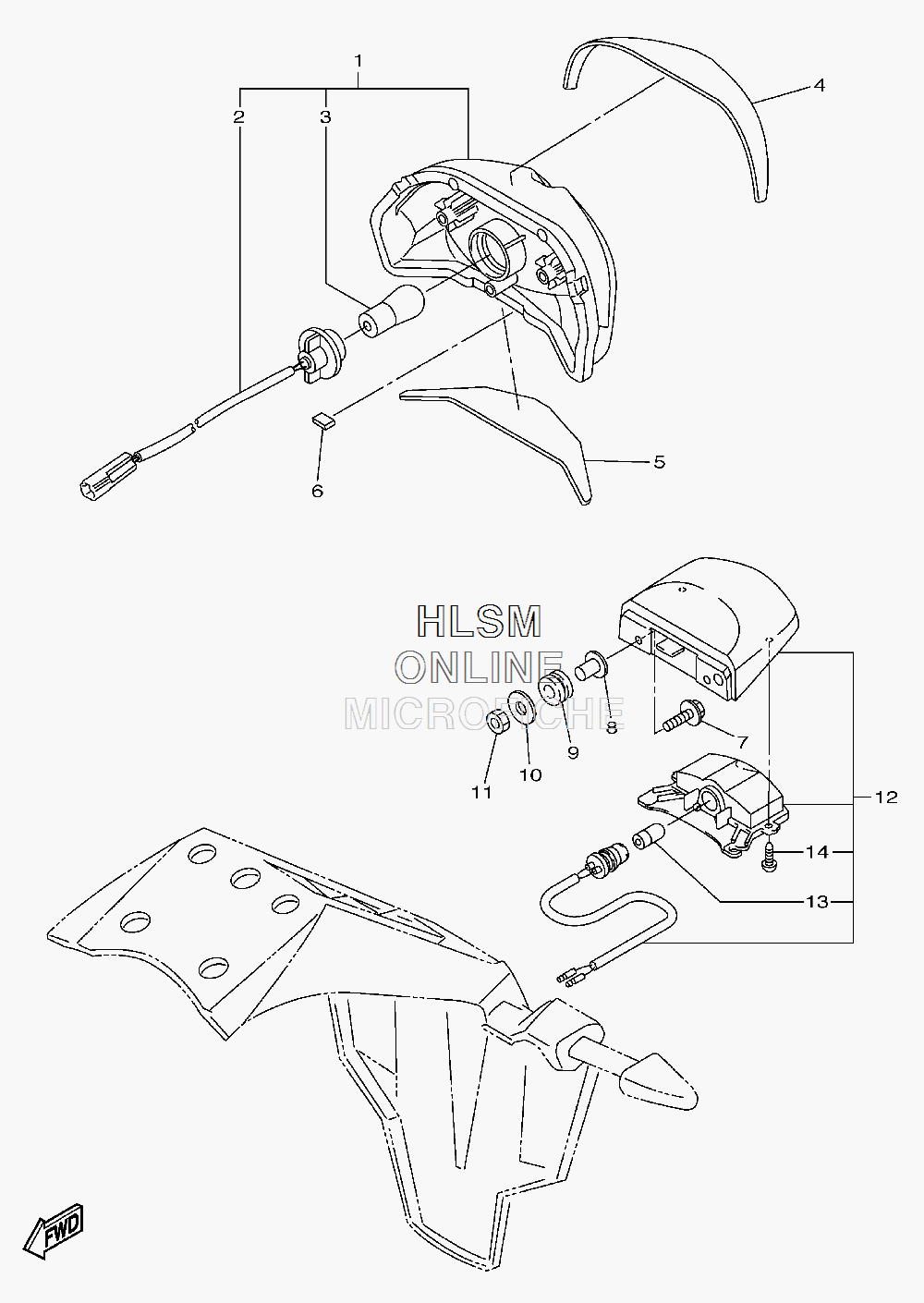

TAILLIGHT для Yamaha FZ8 - 2011 года выпуска
-
№АртикулНазвание
-
139P-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
239P-84735-00-00 ...SOCKET CORD ASSY...SOCKET CORD ASSY
-
31A2-84714-41-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
43C3-84736-00-00 DAMPER, TAIL 1DAMPER, TAIL 1
-
52D1-84737-00-00 DAMPER, TAIL 2DAMPER, TAIL 2
-
690520-01002-00 DAMPER, PLATEDAMPER, PLATE
-
790159-05035-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
890387-05042-00 COLLARCOLLAR
-
990480-11009-00 GROMMETGROMMET
-
1092902-05200-00 WASHERWASHER
-
1195602-05100-00 NUT, UNUT, U
-
122D1-84745-00-00 LICENSE LIGHT UNIT ASSYLICENSE LIGHT UNIT ASSY
-
134HC-84744-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
1497706-04012-00 ...SCREW, TAPPING...SCREW, TAPPING
