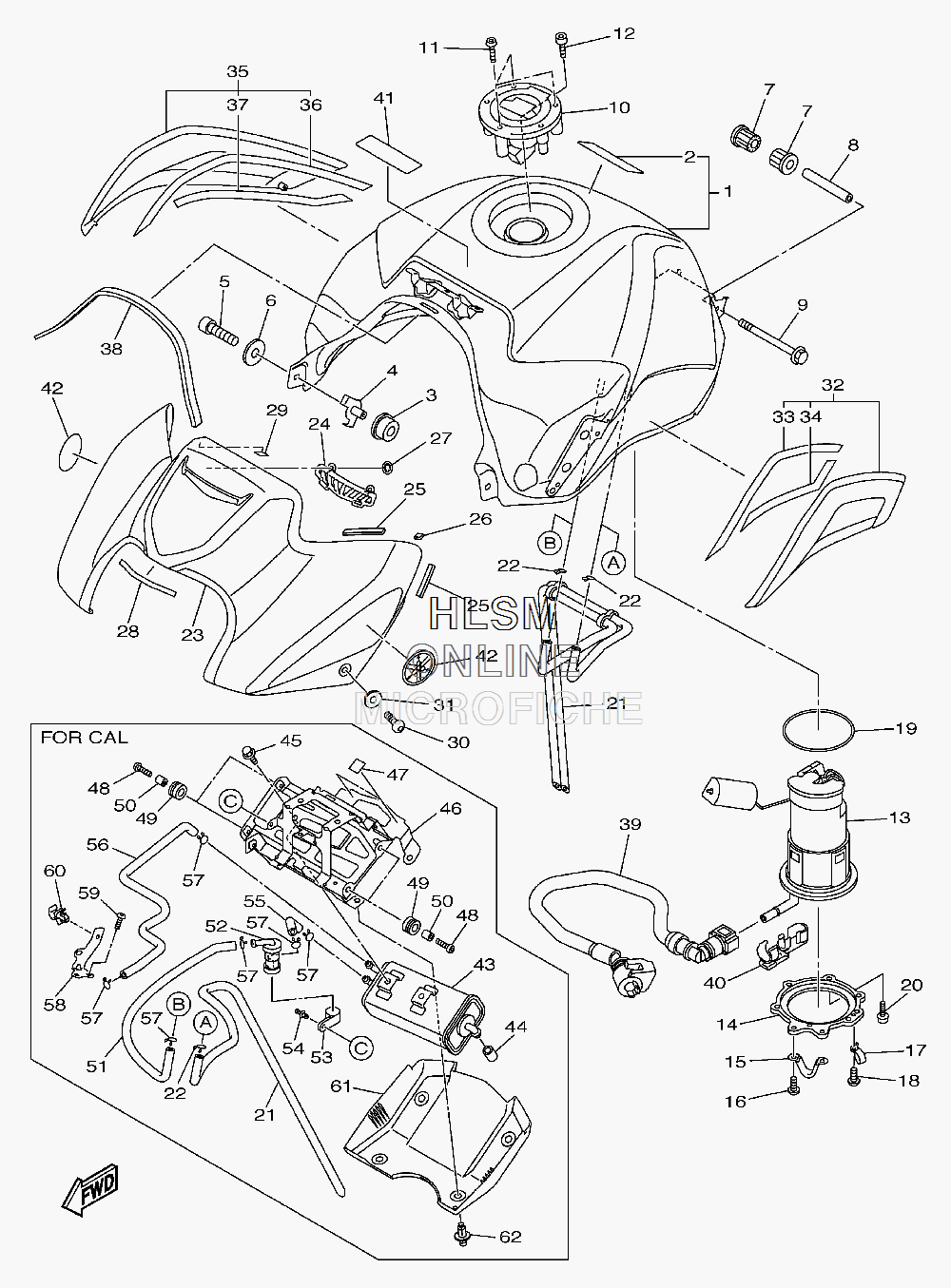

FUEL TANK для Yamaha FZ8 - 2011 года выпуска
-
№АртикулНазвание
-
139P-Y2410-00-01 FUEL TANK COMP. (SMX)FUEL TANK COMP. (SMX)
-
239P-24161-00-00 ...EMBLEM 1...EMBLEM 1
-
35VY-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
42D1-2412G-00-00 COLLARCOLLAR
-
591312-06016-00 BOLTBOLT
-
690201-06086-00 WASHER, PLATEWASHER, PLATE
-
75SL-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
890387-06055-00 COLLARCOLLAR
-
995022-06090-00 BOLT, FLANGEBOLT, FLANGE
-
105JJ-24602-01-00 CAP ASSYCAP ASSY
-
1190110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1291312-05010-00 BOLTBOLT
-
1339P-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
1439P-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
152D1-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
1698902-05008-00 SCREW, BINDSCREW, BIND
-
1790461-10010-00 CLAMPCLAMP
-
1890154-05035-00 SCREW, BINDINGSCREW, BINDING
-
195JW-24486-00-00 O-RINGO-RING
-
2090110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2139P-24317-00-00 PIPE 7 (EXCEPT CALIF.)PIPE 7 (EXCEPT CALIF.)
-
2139P-24315-00-00 PIPE 5 (CALIF. ONLY)PIPE 5 (CALIF. ONLY)
-
2290467-09006-00 CLIP, SCISSORCLIP, SCISSOR
-
2339P-2171A-00-P0 COVER, TOP (SMX)COVER, TOP (SMX)
-
2439P-241B1-00-00 COVER, TANKCOVER, TANK
-
254XV-2834E-00-00 DAMPER 3DAMPER 3
-
2614B-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
2790183-05M02-00 NUT, SPRINGNUT, SPRING
-
2839P-28307-00-00 SEALSEAL
-
291D7-15379-00-00 SEALSEAL
-
3090111-05019-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3190202-05224-00 WASHER, PLATEWASHER, PLATE
-
3239P-24106-00-00 TANK SIDE COVER ASSY 1TANK SIDE COVER ASSY 1
-
3339P-241A3-00-00 ...SEAL 3...SEAL 3
-
3439P-241A5-00-00 ...SEAL 5...SEAL 5
-
3539P-24108-00-00 TANK SIDE COVER ASSY 2TANK SIDE COVER ASSY 2
-
3639P-241A4-00-00 ...SEAL 4...SEAL 4
-
3739P-241A6-00-00 ...SEAL 6...SEAL 6
-
382D1-2414P-00-00 DAMPER, PLATE 5DAMPER, PLATE 5
-
3939P-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
4090464-16005-00 CLAMPCLAMP
-
415GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
425SL-2413B-00-00 EMBLEMEMBLEM
-
4339P-24170-00-00 CANISTER ASSY (CALIF. ONLY)CANISTER ASSY (CALIF. ONLY)
-
4490445-11418-00 HOSE (L18) (CALIF. ONLY)HOSE (L18) (CALIF. ONLY)
-
4595802-06010-00 BOLT, FLANGE (CALIF. ONLY)BOLT, FLANGE (CALIF. ONLY)
-
4639P-2419F-00-00 BRACKET, CANISTOR (CALIF. ONLY)BRACKET, CANISTOR (CALIF. ONLY)
-
475YU-21639-00-00 DAMPER 2 (CALIF. ONLY)DAMPER 2 (CALIF. ONLY)
-
4892012-06020-00 BOLT, BUTTON HEAD (CALIF. ONLY)BOLT, BUTTON HEAD (CALIF. ONLY)
-
4990480-14030-00 GROMMET (CALIF. ONLY)GROMMET (CALIF. ONLY)
-
5090387-065L7-00 COLLAR (CALIF. ONLY)COLLAR (CALIF. ONLY)
-
5139P-24313-00-00 PIPE 3 (CALIF. ONLY)PIPE 3 (CALIF. ONLY)
-
522C0-24180-00-00 ROLL OVER VALVE ASSY (CALIF. ONLY)ROLL OVER VALVE ASSY (CALIF. ONLY)
-
5390461-15139-00 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
5490269-05005-00 RIVET (CALIF. ONLY)RIVET (CALIF. ONLY)
-
5539P-24314-00-00 PIPE 4 (CALIF. ONLY)PIPE 4 (CALIF. ONLY)
-
5639P-1444J-00-00 PIPE (CALIF. ONLY)PIPE (CALIF. ONLY)
-
5790467-09006-00 CLIP (CALIF. ONLY)CLIP (CALIF. ONLY)
-
5839P-24216-00-00 STAY (CALIF. ONLY)STAY (CALIF. ONLY)
-
5992012-06016-00 BOLT, BUTTON HEAD (CALIF. ONLY)BOLT, BUTTON HEAD (CALIF. ONLY)
-
6090464-10125-00 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
615D0-2172W-00-00 COVER (CALIF. ONLY)COVER (CALIF. ONLY)
-
6290269-07077-00 RIVET (CALIF. ONLY)RIVET (CALIF. ONLY)
