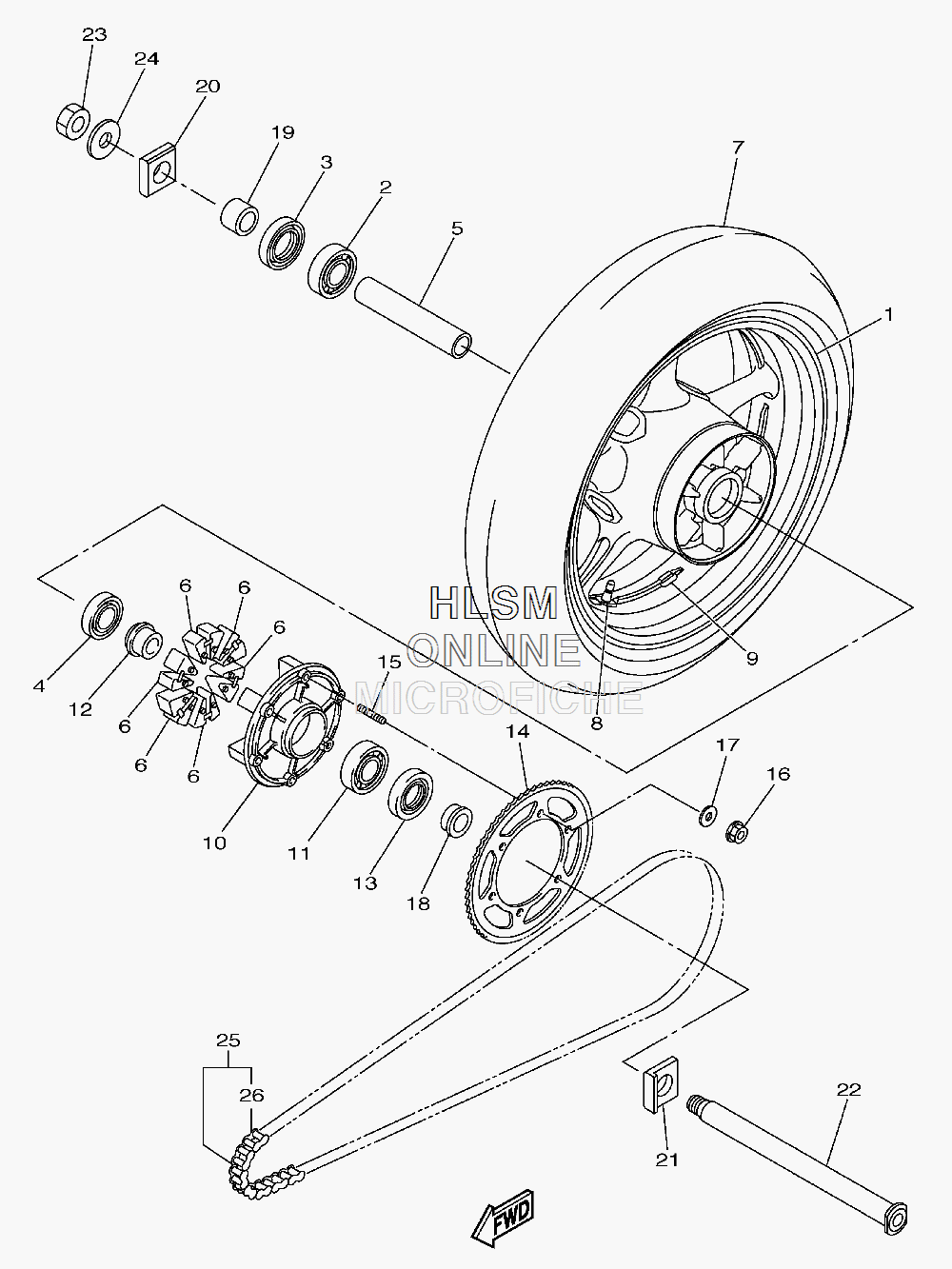

WHEEL - REAR для Yamaha FZ8 - 2011 года выпуска
-
№АртикулНазвание
-
139P-25338-00-98 CAST WHEEL, REARCAST WHEEL, REAR
-
293306-20531-00 BEARINGBEARING
-
393106-40013-00 OIL SEALOIL SEAL
-
493306-07806-00 BEARINGBEARING
-
539P-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
65EA-25364-00-00 DAMPERDAMPER
-
794118-17072-00 TIRE (180/55ZR17M/C 73W BT021R) BSTIRE (180/55ZR17M/C 73W BT021R) BS
-
893900-00030-00 VALVE, RIM (TR412)VALVE, RIM (TR412)
-
95MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
95MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
95MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
1020S-25366-10-00 CLUTCH, HUBCLUTCH, HUB
-
1193306-20659-00 BEARINGBEARING
-
124FM-25377-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1393106-40041-00 OIL SEALOIL SEAL
-
1439P-25446-00-00 SPROCKET, DRIVEN (46T)SPROCKET, DRIVEN (46T)
-
1590116-10048-00 BOLT, STUDBOLT, STUD
-
1690185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1790201-10021-00 WASHER, PLATEWASHER, PLATE
-
1890387-28015-00 COLLARCOLLAR
-
1990387-28014-00 COLLARCOLLAR
-
205VY-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
215VY-25389-01-00 PULLER, CHAIN 2PULLER, CHAIN 2
-
222D1-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
2390185-24007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2490201-25020-00 WASHER, PLATEWASHER, PLATE
-
2594582-31122-00 CHAIN (DID 525V10-121LL)CHAIN (DID 525V10-121LL)
-
2694682-31031-00 ...JOINT, CHAIN (DID 525V10-ZJ)...JOINT, CHAIN (DID 525V10-ZJ)
