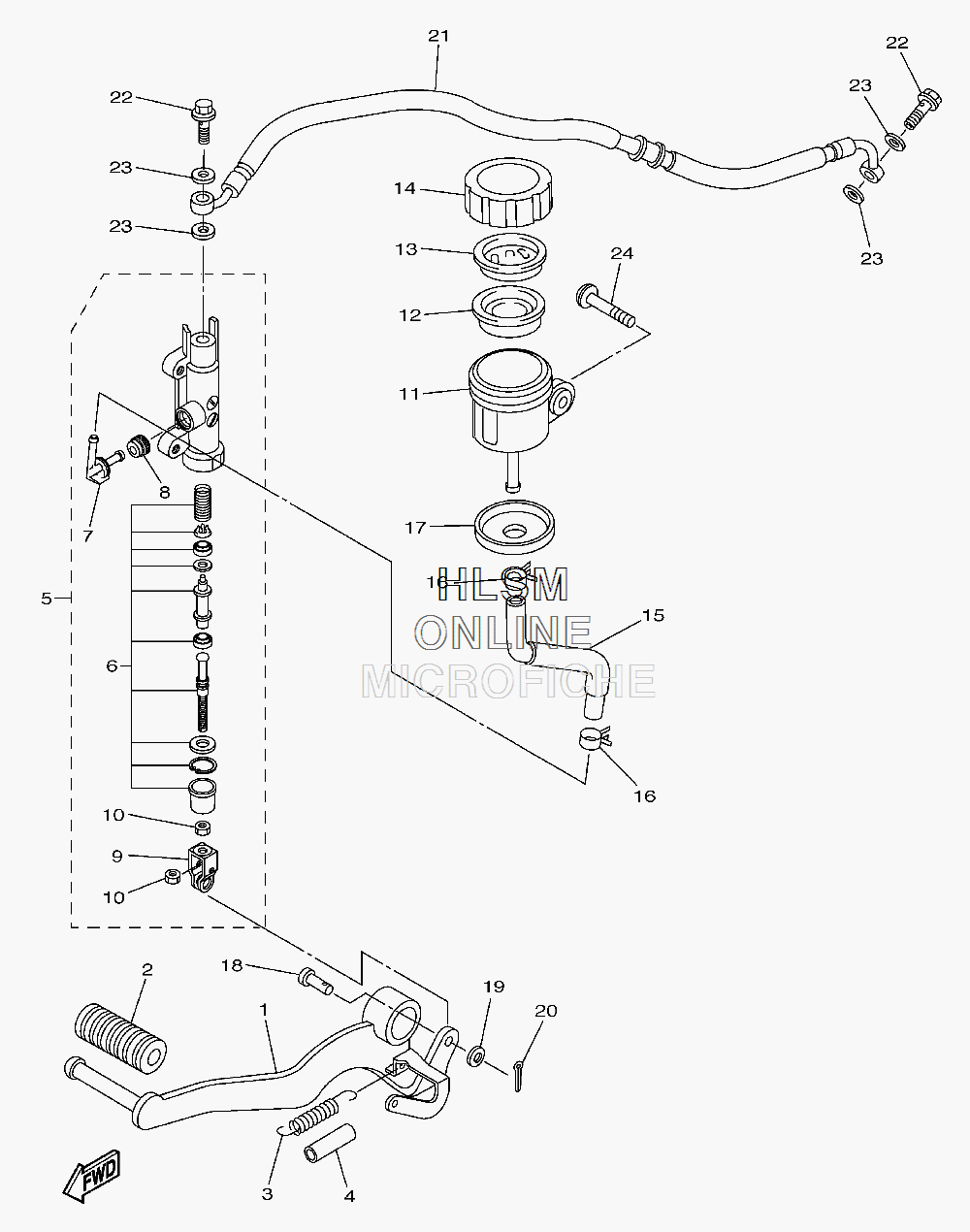

BRAKE - REAR MASTER CYLINDER для Yamaha FZ8 - 2011 года выпуска
-
№АртикулНазвание
-
139P-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
25EB-18113-00-00 COVER, SHIFT PEDALCOVER, SHIFT PEDAL
-
390506-20014-00 SPRING, TENSIONSPRING, TENSION
-
490446-15386-00 HOSEHOSE
-
52D1-2583V-00-00 REAR MASTER CYLINDER ASSYREAR MASTER CYLINDER ASSY
-
65VX-W0042-51-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
72D1-2582A-00-00 ...JOINT...JOINT
-
84BP-2585F-01-00 ...O-RING...O-RING
-
94BP-27222-02-00 ...JOINT...JOINT
-
1090170-08010-00 ...NUT...NUT
-
112D1-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
125SL-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
135SL-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
145SL-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
1539P-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
1690467-11044-00 CLIPCLIP
-
175D0-2583H-00-00 BOOTBOOT
-
1890240-08005-00 PIN, CLEVISPIN, CLEVIS
-
1990201-08066-00 WASHER, PLATEWASHER, PLATE
-
2091401-20012-00 PIN, COTTERPIN, COTTER
-
2139P-25874-00-00 HOSE, BRAKEHOSE, BRAKE
-
2290401-10020-00 BOLT, UNIONBOLT, UNION
-
2390430-10005-00 GASKETGASKET
-
2490111-05026-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
