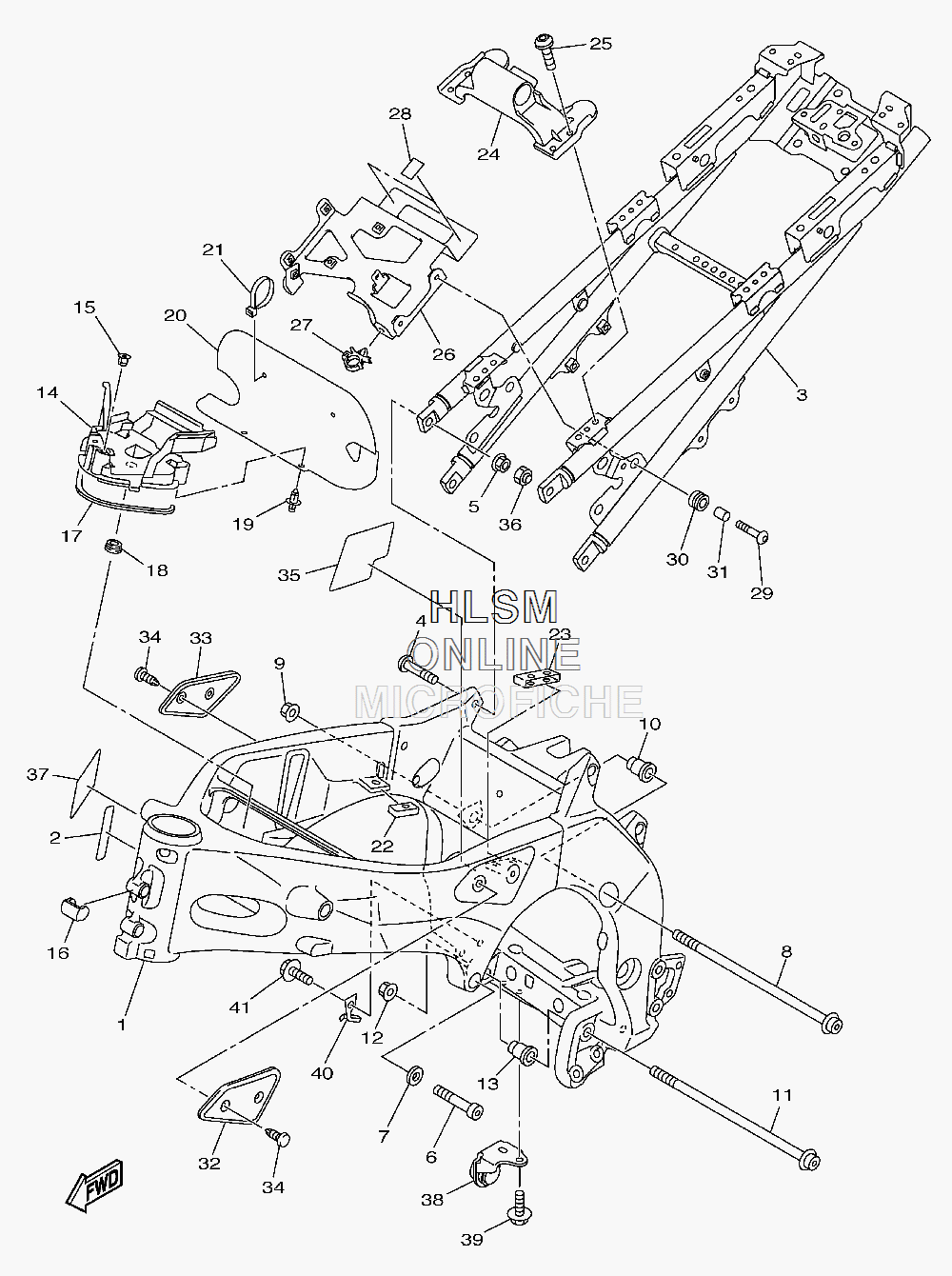

FRAME для Yamaha FZ8 - 2011 года выпуска
-
№АртикулНазвание
-
12D1-21110-02-P0 FRAME COMP. (MBL2) (EXCEPT CALIF.)FRAME COMP. (MBL2) (EXCEPT CALIF.)
-
12D1-21110-22-P0 FRAME COMP. (MBL2) (CALIF. ONLY)FRAME COMP. (MBL2) (CALIF. ONLY)
-
22D1-2197E-00-00 PROTECTOR, FRAME FRPROTECTOR, FRAME FR
-
339P-21190-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
490157-10001-00 SCREW, PAN HEADSCREW, PAN HEAD
-
595602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
691314-10040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
790201-10020-00 WASHER, PLATEWASHER, PLATE
-
890110-10024-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
990179-10025-00 NUTNUT
-
104C8-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
1190110-10024-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1290179-10025-00 NUTNUT
-
134C8-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
1439P-2117N-00-00 COVER 3COVER 3
-
1590269-08058-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
162D1-21399-00-00 CAPCAP
-
172D1-2174Y-00-00 DAMPERDAMPER
-
1890480-01333-00 GROMMETGROMMET
-
1990269-06001-00 RIVETRIVET
-
202D1-2117G-00-00 PROTECTORPROTECTOR
-
211UA-82591-00-00 BANDBAND
-
222D1-24184-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
232D1-24185-00-00 DAMPER, LOCATING 5DAMPER, LOCATING 5
-
2439P-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
2590111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2639P-21287-00-00 BRACKET, REGULATORBRACKET, REGULATOR
-
2790464-16006-00 CLAMPCLAMP
-
285YU-21639-00-00 DAMPER 2DAMPER 2
-
2992012-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3090480-14030-00 GROMMETGROMMET
-
3190387-065L7-00 COLLARCOLLAR
-
322D1-24129-00-00 COVER, SIDE 1COVER, SIDE 1
-
332D1-24139-00-00 COVER, SIDE 2COVER, SIDE 2
-
3490269-06003-00 RIVETRIVET
-
3539P-21575-00-00 SEAL 1SEAL 1
-
365YU-2143A-00-00 CAP (CALIF. ONLY)CAP (CALIF. ONLY)
-
3739P-21686-00-00 PLATE, ROUTING 2 (CALIF. ONLY)PLATE, ROUTING 2 (CALIF. ONLY)
-
3839P-27425-00-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
3995812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
4039P-27267-00-00 GUIDE, WIREGUIDE, WIRE
-
4195022-10016-00 BOLT, FLANGEBOLT, FLANGE
