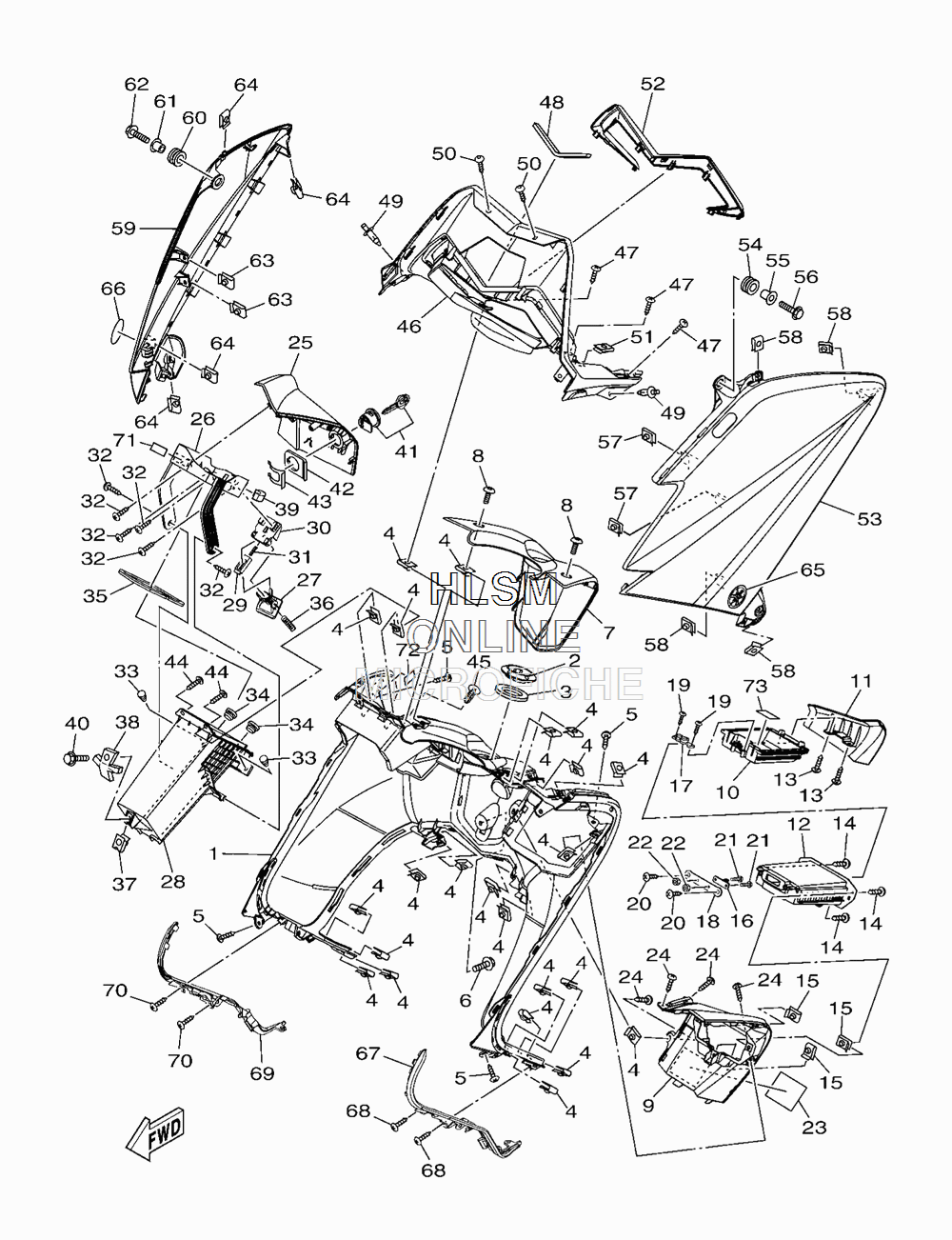

COWLING W/ LEG SHIELD для Yamaha TMAX (CANADA) - 2012 года выпуска
-
№АртикулНазвание
-
159C-28311-00-00 LEG SHIELD 1LEG SHIELD 1
-
24B5-82552-00-00 CAP, SWITCHCAP, SWITCH
-
35VU-28307-00-00 SEALSEAL
-
490183-05042-00 NUT, SPRINGNUT, SPRING
-
597707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
690119-06212-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
759C-28312-00-00 LEG SHIELD 2LEG SHIELD 2
-
890167-05076-00 SCREW, TAPPINGSCREW, TAPPING
-
959C-28313-00-00 LIDLID
-
1059C-2836M-00-00 PANEL, INNER 3PANEL, INNER 3
-
1159C-2836X-00-00 KNOB, 1KNOB, 1
-
1259C-2838K-00-00 BOX 1BOX 1
-
1397702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1490169-05001-00 TAPPING SCREWTAPPING SCREW
-
1590183-05042-00 NUT, SPRINGNUT, SPRING
-
1659C-5271A-00-00 LATCH 1LATCH 1
-
1759C-64848-00-00 CATCHCATCH
-
1859C-28367-00-00 BRACKETBRACKET
-
1990160-03002-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
2090160-05015-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
2190150-03008-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
2290185-03002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
234C8-2118K-10-00 LABEL, CAUTIONLABEL, CAUTION
-
2497702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
2559C-2839K-00-00 LID 1LID 1
-
2659C-2836N-00-00 PANEL, INNER 4PANEL, INNER 4
-
2759C-2836Y-00-00 KNOB, 2KNOB, 2
-
2859C-2838L-00-00 BOX 2BOX 2
-
2959C-28235-00-00 PIN, LOCKPIN, LOCK
-
3059C-2848Y-00-00 COVER, LOCKCOVER, LOCK
-
3159C-28388-00-00 SPRINGSPRING
-
3297702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
3390338-06018-00 PLUGPLUG
-
3490338-10132-00 PLUGPLUG
-
3590520-06003-00 DAMPER, PLATEDAMPER, PLATE
-
3659C-2838C-00-00 SPRING 2SPRING 2
-
3790183-06069-00 NUT, SPRINGNUT, SPRING
-
3859C-24724-00-00 DAMPER, SEATDAMPER, SEAT
-
395JX-21778-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
4090119-06241-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4159C-28407-00-00 LOCK SET 2LOCK SET 2
-
4259C-2117K-00-00 STAY, LOCKSTAY, LOCK
-
4359C-2176V-00-00 SPRING, LOCK 2SPRING, LOCK 2
-
4497702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
4590269-03001-00 RIVETRIVET
-
4659C-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
4797702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
4890520-03012-00 DAMPER, PLATEDAMPER, PLATE
-
4990269-06001-00 RIVETRIVET
-
5090111-05002-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
5190183-05042-00 NUT, SPRINGNUT, SPRING
-
5259C-2839R-00-P0 PANEL, ACCESSORY MBL2 FOR BWC1PANEL, ACCESSORY MBL2 FOR BWC1
-
5359C-28351-00-P1 BODY, COWLING FOR BWC1BODY, COWLING FOR BWC1
-
5490480-14003-00 GROMMETGROMMET
-
5590387-0602X-00 COLLARCOLLAR
-
5695822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
5790183-060A6-00 NUT, SPRINGNUT, SPRING
-
5890183-05042-00 NUT, SPRINGNUT, SPRING
-
5959C-28377-00-P1 BODY, COWLING 2 FOR BWC1BODY, COWLING 2 FOR BWC1
-
6090480-14003-00 GROMMETGROMMET
-
6190387-0602X-00 COLLARCOLLAR
-
6295822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
6390183-060A6-00 NUT, SPRINGNUT, SPRING
-
6490183-05042-00 NUT, SPRINGNUT, SPRING
-
655SL-2413B-00-00 EMBLEMEMBLEM
-
665SL-2413B-00-00 EMBLEMEMBLEM
-
6759C-28396-00-00 PLATE 1PLATE 1
-
6897702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
6959C-28397-00-00 PLATE 2PLATE 2
-
7097702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
714BR-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
724BR-24877-B1-00 LABEL, CAUTIONLABEL, CAUTION
-
7359C-24877-B0-00 LABEL, CAUTIONLABEL, CAUTION
